Ec CornerFH/FZ5 Processing Item Function Reference Manual
193
2
Inspecting and Measuring
4 Perform the next measurement, and the reference will be displayed.

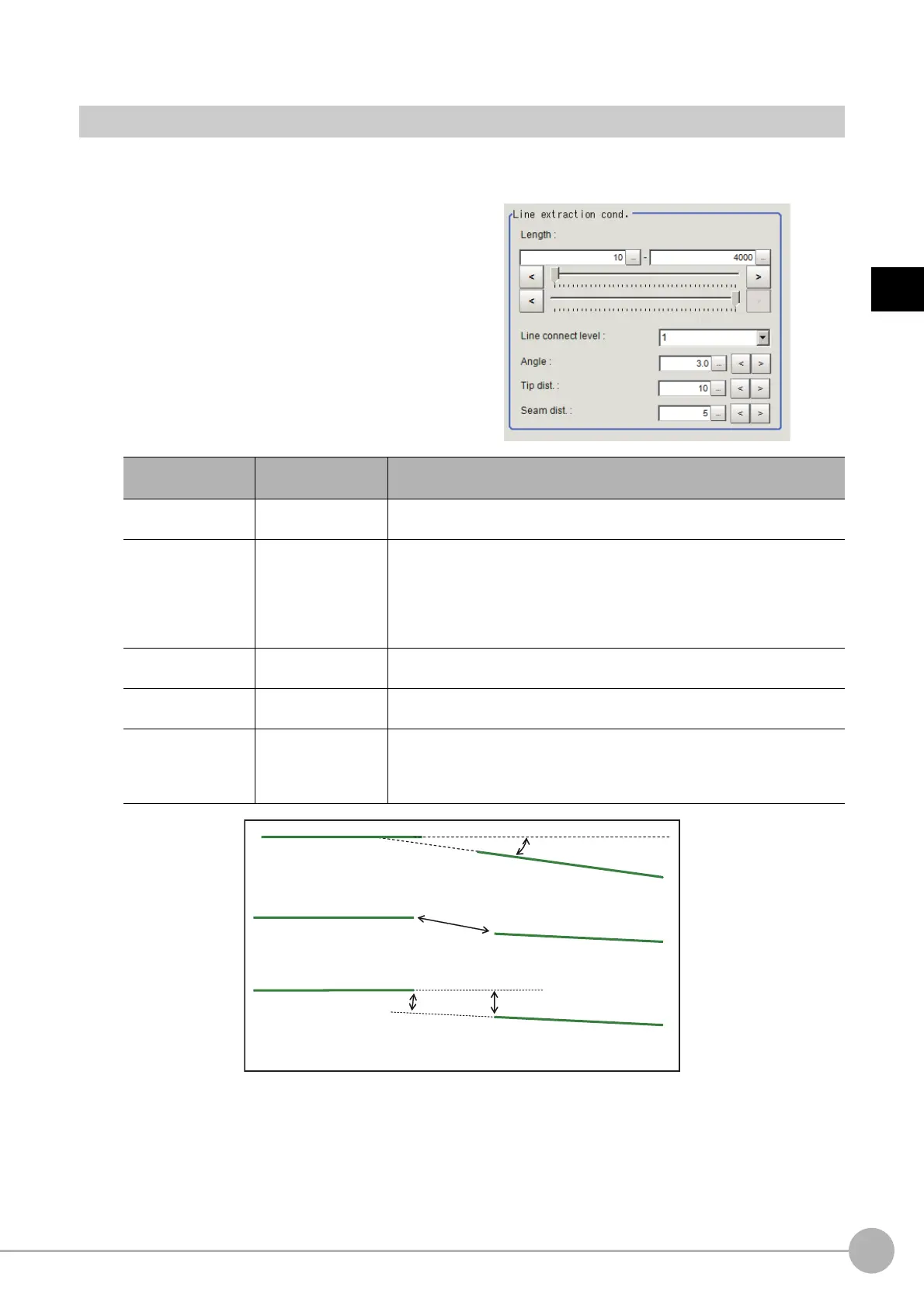

Line Extraction (Ec Corner)
This item sets the conditions for extracting a line.
1 In the Item Tab area, click [Line extraction].
2 In the "Line extraction cond." area, set
the conditions for extracting a line.
Setting item
Setting value
[Factory default]
Description
Length
5 to 4000
[10] to [4000]
Set the length of edges to be extracted.
Line connect level
•[1]
•2
•3
•4
•5
•Custom
Select the degree to which fragmented lin
es detected by edge extraction
are connected. The higher the level, the more likely the lines are
connected.
Angle
0.0 to 30.0
[3.0]
Set the angle range to be used when two lines are connected. Increasing
this value allows two lines of different inclinations to be connected.
Tip dist.
0 to 1000
[10]
Set the vertex distance to be used when
two lines are connected.
Increasing this value allows distant lines to be connected.
Seam dist.
0 to 1000
[5]
Set the distance condition to be used when two lines are connected,
where a
n extension of one line comes closest to the vertex of the other
line. Increasing this value allows lines offset vertically to the lines to be
connected.
Angle
Tip dist.
Seam dist.
(The shorter of two distances becomes the combination
seam distance)
