3
Compensate image
Filtering
Process the images acquired from cameras in order to make them easier to measure.
Used in the Following Case
• Cutting out unnecessary background images to exclude them from the measurement region
• When noise is to be removed
• When the edges of marks you want to find cannot
be found even though other edges have
been extracted.
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.

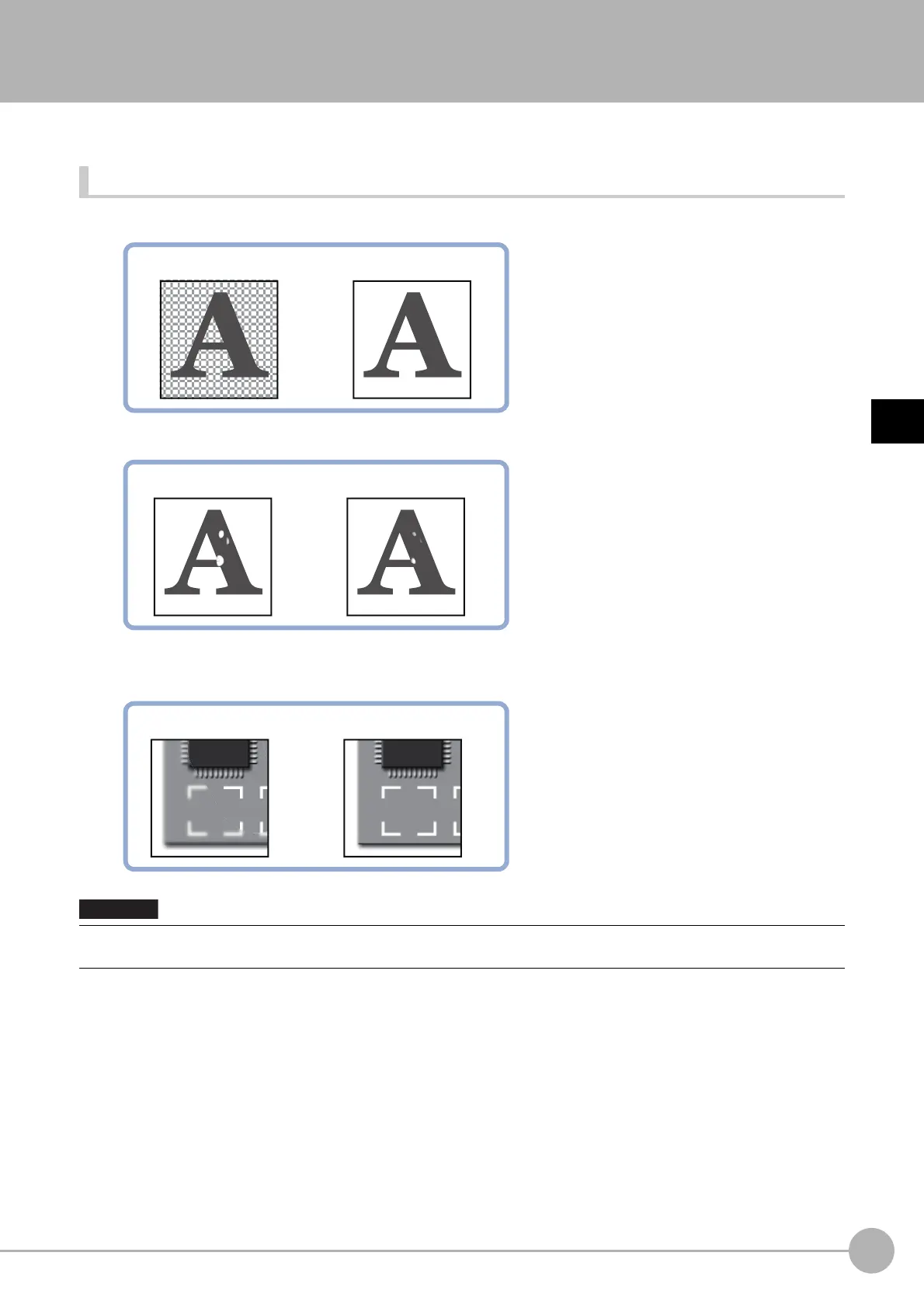

Before Filtering After Filtering
Before Filtering After Filtering
Before Filtering After Filtering
Important
