Position Data CalculationFH/FZ5 Processing Item Function Reference Manual
713
4
Support Inspection and Measurement
Position Data Calculation
Calculates position data and angle data used in the Position Data Calculation based on the measurement results
of multiple processing items. Up to 4 measurement results can be used for the calculation.
It lets users easily calculate "The angle of a line between
2
points" and "the center point of two points" that are
often used in alignment applications.
Used in the Following Case
• When you want to position the FPD panel
Settings Flow (Position Data Calculation)
The position/angle calculation should be set up with the following procedure.
List of Position Data Calculation Items
Item name Description
Calculation
sett
ing
Set the data to be processed using a calculation formula. Up to 4 data can be set.
The position data to be output is calculated by calcul
ating the avera
ge of the position data of the points
selected in "Calculation target position selection".
The angle data to be output is calculated using th
e me
thod selected in "Angle calculation method
selection".
Reference: Calculation Setting (Position Data Calculation) (p.714)
Output setting
This item can be changed if necessary. Normally, the factory default value will be used.
Select whether to reflect the judgement resul
t
to the overall judgement of the scene.
Reference: Output Setting (Position Data Calculation) (p.716)

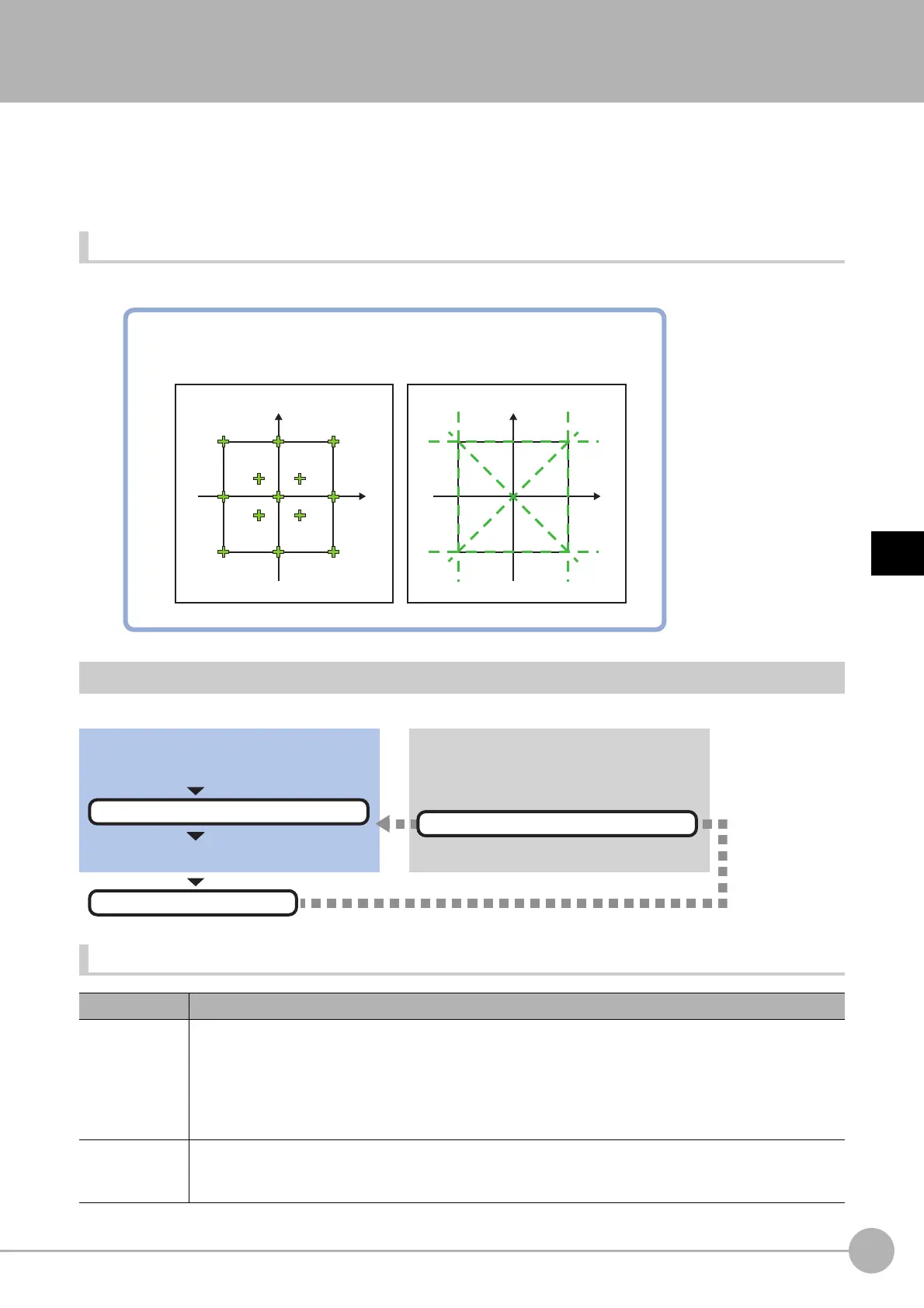

Example) When coordinates for the four corns of the work are entered
Calculable position coordinates XY
Y
X
Calculable angle (corner formed by 2 points)
Y
X
Make sure to set Set as necessary.
Check results/make adjustments
▲
Calculation Setting (Position Data Calculation)
Start
Settings complete
Test measurement
▲
Output Setting (Position Data Calculation)
