Multi-trigger ImagingFH/FZ5 Processing Item Function Reference Manual
87
1
Input image
Multi-trigger Imaging
This function can be used only with FH series/FZ5-800 series/FZ5-1100 series/FZ5-1200 series. The Multi-
trigger Imaging processing item captures multiple images at user-defined timings and executes parallel
measurement for each image. If you append this processing item in the flow, Multi-trigger Imaging, Multi-trigger
Imaging Task, Camera Image Input FH and Multi-trigger Imaging End will be added as a group. Insert the Multi-
trigger Imaging to the top of the flow. The Multi-trigger Imaging, Multi-trigger Imaging Task, and Multi-trigger
Imaging End cannot be used alone. Please use them as a group.
Reference: Cha
nging the System Environment - Multi-trigger Ima
ging Function in the Vision System FH/FZ5
Series User's Manual (Cat. No. Z365).
Used in the Following Case
Systems which capture multiple images at user-defined timings and executes parallel measurement for each
image.

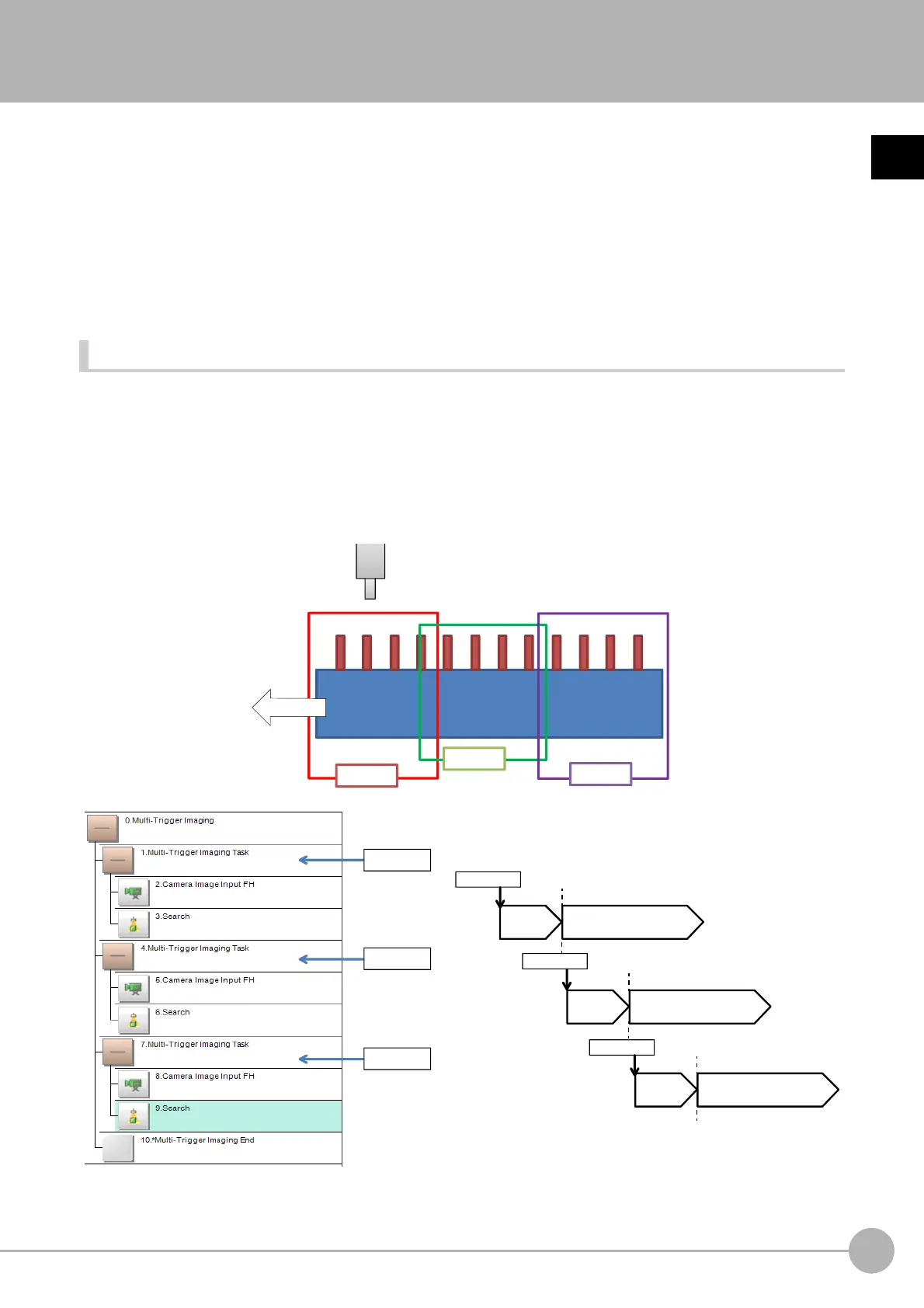

Example:
This function takes multiple images of a long and thin
workpiece
at certain timings. While the system takes
images for multiple times, it executes measurement for each image in parallel. After that, measurement
processing is performed based on the measurement results.
1
st
STEP
2
nd
STEP
3
rd
STEP
3. Search
9. Search
6. Search
1
st
STEP
2
nd
STEP
3
rd
STEP
Image transfer completed
Image transfer completed
Image transfer completed
STEP(1)
STEP(2)
STEP(0)
Move
2. Camera
image input FH
5. Camera
image input FH
8. Camera
image input FH
To Next Page
