Character InspectionFH/FZ5 Processing Item Function Reference Manual
391
2
Inspecting and Measuring
List of Character Inspection Items
Dictionary Parameters (Character Inspection)

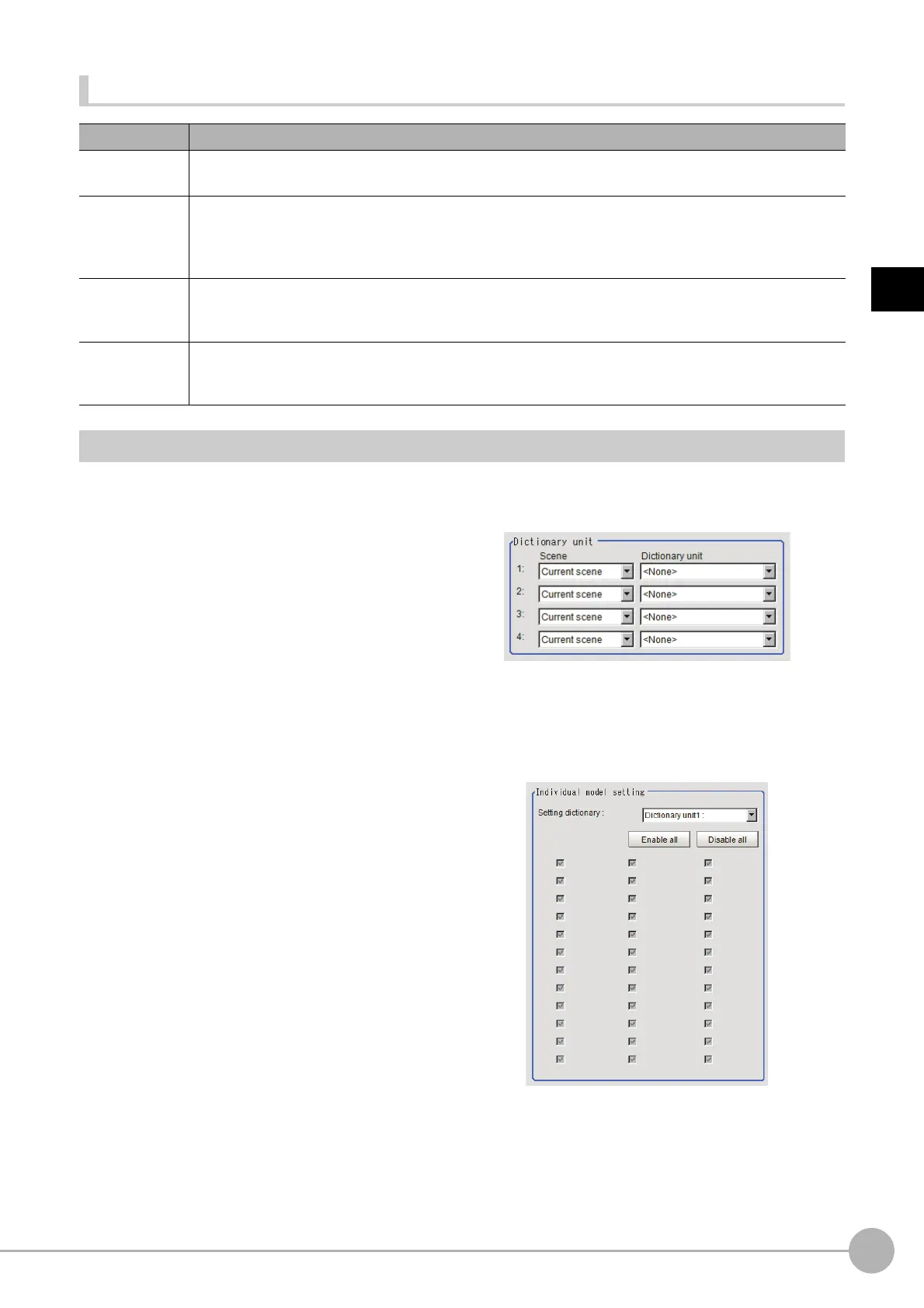

This item selects the processing unit number for the model dictionary to use for character inspection.
1 In the Item Tab area, click [Dictionary].
2 In the "Dictionary unit" area, select the
unit number.
A dictionary unit other than the currently used
scene can also be used.
3 If necessary, specify an index to use.
1 Click [ ] and select the dictionary unit to be specified.
The following character strings are registered.
2 Place a check at the character(s) to
use for character inspection.
Click the [Enable all]/[Disable all] button
to enable/disable all registered
characters.
4 Click [OK].
The model dictionary to use is set.
Item name Description
Dictionary
This item specifies the processing unit number for the model
dictionary to use for character recognition.
Reference: Dictionary Parameters (Character
Inspection) (p.391)
Region setting
This item is used to set up the measurement area.
Instead of measuring the entire input image, narrowing the measurement area shortens the processing
time.
Reference: Region Setting (Character Inspection) (p.392)
Measurement
This item specifies the judgement condition for measurement resul
ts. Specify the criteria to judge the
measurement result if the X and Y coordinates and the correlation values with the model are OK.
Reference: Measurement Parameters (Character Inspection) (p.392)
Output
p
a
rameter
This item can be changed if necessary. Normally, the factory default value will be used.
Use the output parameter to specify how to handle the coordinates.
Reference: Output Parameters (Character Inspection)
(p.394)
