Selective Branch
866
FH/FZ5 Processing Item Function Reference Manual
Output Parameter (Selective Branch)
Specifies whether or not the judgement results of this processing unit is reflected in the scene overall judgement.
1 Click [Output parameter] in the Item Tab area.
2 Select the "Reflect to overall judgement".

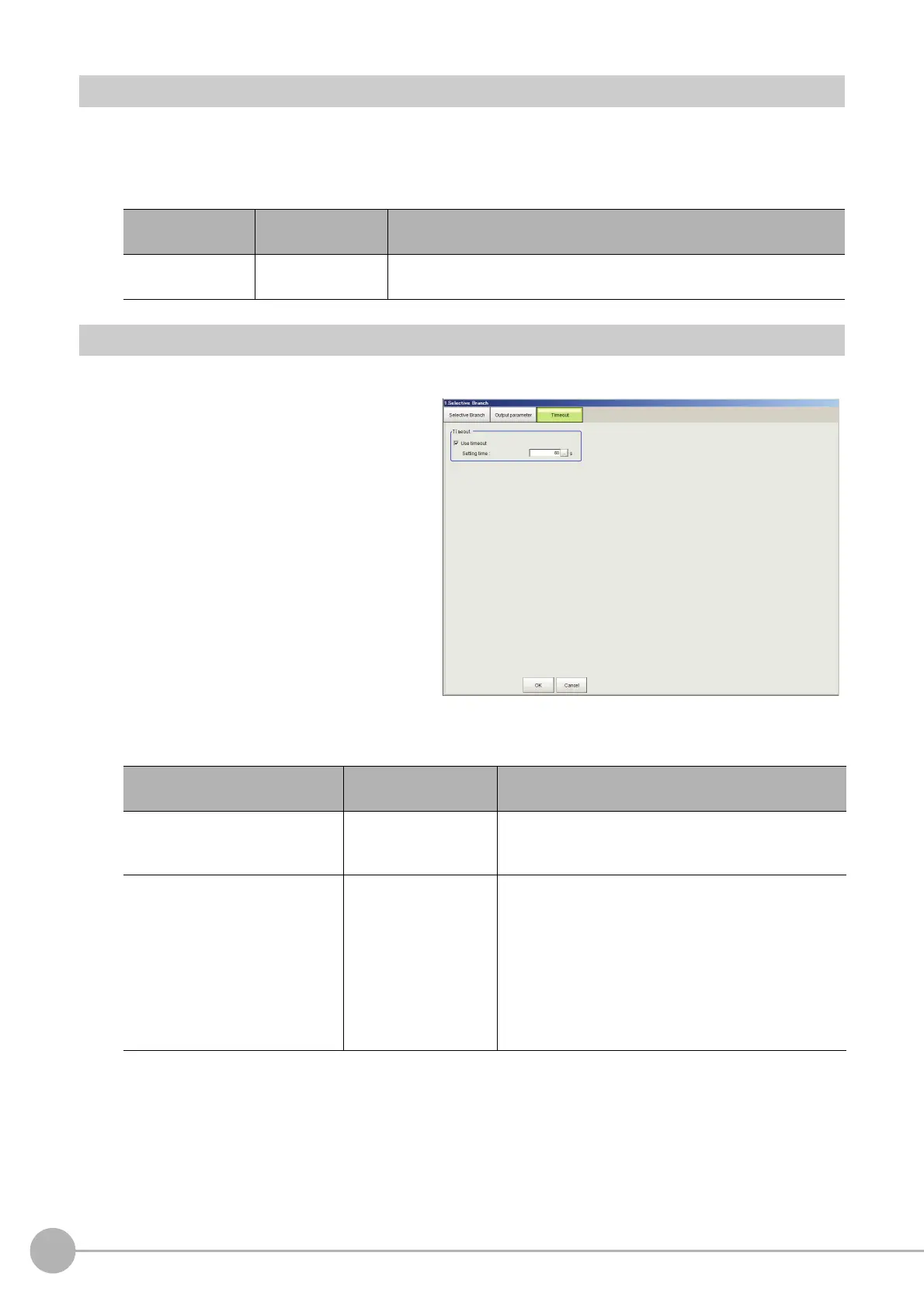

Timeout (Selective Branch)
Set the conditions under which the branching processing times out.
1 In the Item Tab area, click [Timeout].
2 In the "Timeout" area, specify a value for each item.
Setting item
Setting value
[Factory default]
Description
Reflect to overall
judgemen
t
•[ON]
•OFF
Specify whether or not the judgement results of this processing unit is
reflected in the scene overall judgement.
Setting item
Setting value
[Factory default]
Description
Use timeout
• Unchecked
• [Checked]
Click on the [Use timeout] checkb
ox to turn it ON if you
want the selective branching to time out after a set
amount of time passes.
Setting time 1 to 3600 [60]
This can be set when the "Use timeout" checkbox is
selected.
Set the length of time until the measurement process
times out on the selected
processing unit in seconds.
Wh
en the measurement process for this processing unit
is executed
, a ti
meout occurs once the amount of time
that passes since the start of the measurement exceeds
the set [Setting time]. If a timeout occurs to disrupt the
measurement process, the judgement results in NG.
