Precise CalibrationFH/FZ5 Processing Item Function Reference Manual
639
4
Support Inspection and Measurement
Precise Calibration
This corrects for camera tilt, and also corrects image distortion caused by the camera lens. Also, by setting the
calibration, the measurement result can be converted and output as actual dimensions.
A calibration parameter that corrects the X and Y coordina
te
s is generated in this processing item. There is no
correction for angle, area, line and distance.
Make sure to set 5 or more actual coordinates when you perform Precise Calibration.
Calibration is also available for camera image input and the
ca
libration data from just prior to the unit referencing
calibration data becomes effective.
Used in the Following Case
• Processing a trapezoidal image shot tilted to make it easier to inspect
• Processing an image that has lens distortion to
make it easier to inspect
• Setting calibration for an image in which there is lens distortion or trapezoidal
distortion
A square-matrix calibration plate pattern (Pattern) printed by the Calibration Plate Print Tool (refer to: the Calibration Plate
Print Tool in the Vision Sensor FH Series Operation Manual for Sysmac Studio (Cat. No. Z343-E1)) can be used in this
processing item.
The accuracy of the calibration will be affected by the accuracy of the
Calibration Plate. If the Pattern is printed on paper,
the quality of the paper and/or degree of print jitter also affects the accuracy of the calibration.
If sub-pixel level accuracy is required,use OMRON p
a
ttern plate (FZD-CAL 3D Calibration Tool).

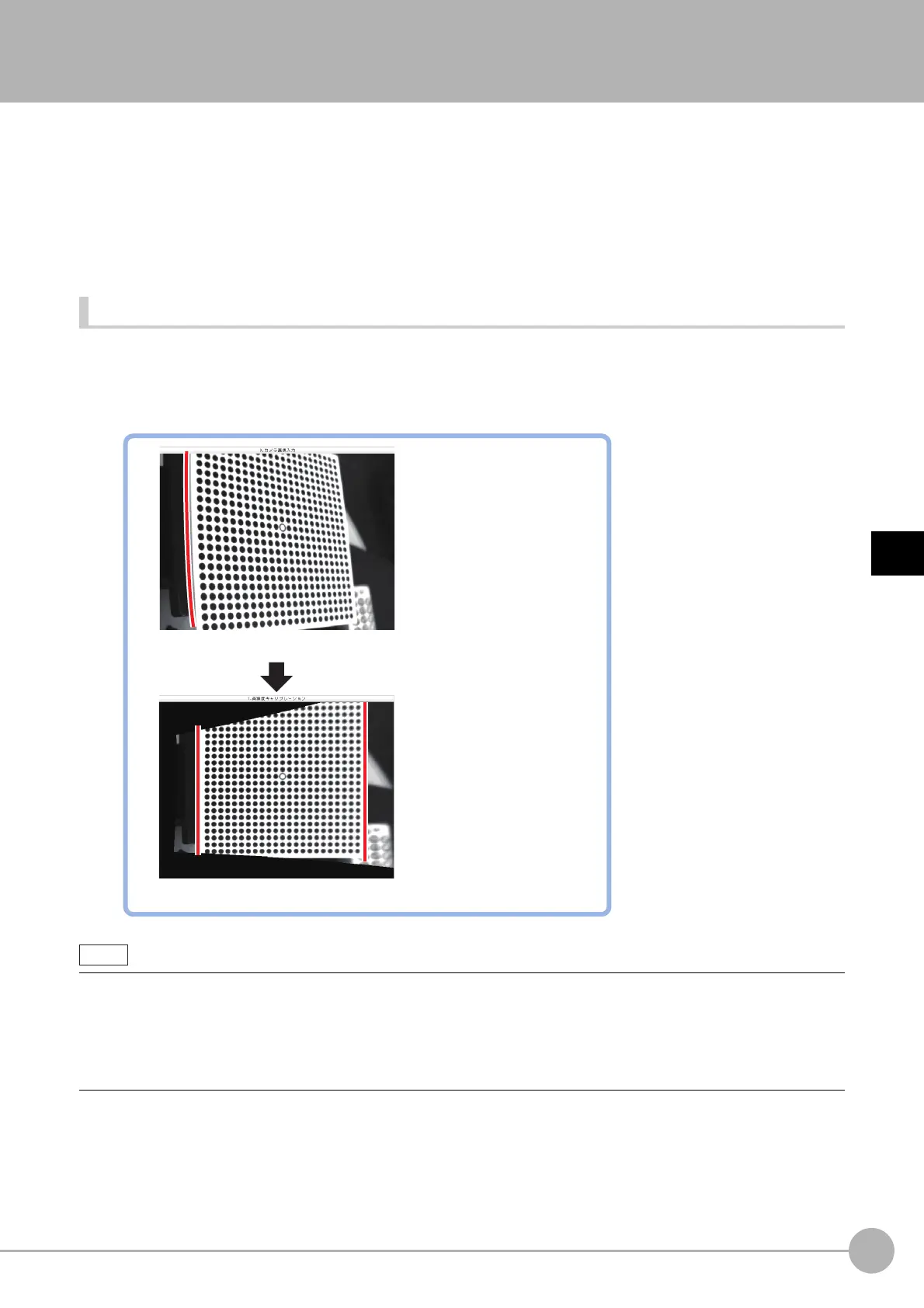

Image before conversion
After application of precise calibration
• Shooting the target from a
diagonal
(trapezoidal distortion)
• Lens distortion occurs in the
corners of the image.
• Correcting the image to be
from directly in front
(removing trapezoidal distortion)
• Lens distortion removal
To Next Page
