Selective Branch
864
FH/FZ5 Processing Item Function Reference Manual
Selective Branch
The calculation and selection value are set, and based on the matching results of the calculation result and
selection value, they branch out from this processing item.
Up to 32 branch destinations can be set.
Used in the Following Case
• When products on one production line are to be inspected according to a time interval
List of Selective Branch Items
Item name Description
Selective
Bra
nch
This item sets the branch conditions.
Reference: Selective Branch (Selective Branch) (p.865)
Output
p
a
rameter
This item can be changed if necessary. Normally, the factory default value will be used.
Reference: Output Parameter (Selective Branch) (p.866)
T
imeout
Set the conditions under which the branching processing times out.
Reference: Timeout (Selective Branch) (p.866)
Calculation result: 0
Calculation result: 2
Calculation result: 8
Product type (1)
inspection
Product type (2)
inspection
Product type (3)
inspection
1
0
Camera Image Input
Selection Branch
2
4
3
Edge Position
5
7
6
Search
10
9
Classification
8
Parallel Judgement Output
Parallel Judgement Output
End
End
End
Calculation result: 2 → 2. Edge position
Calculation result: 5 → 5. Search
Calculation result: 8 → 8. Classification
Parallel Judgement Output

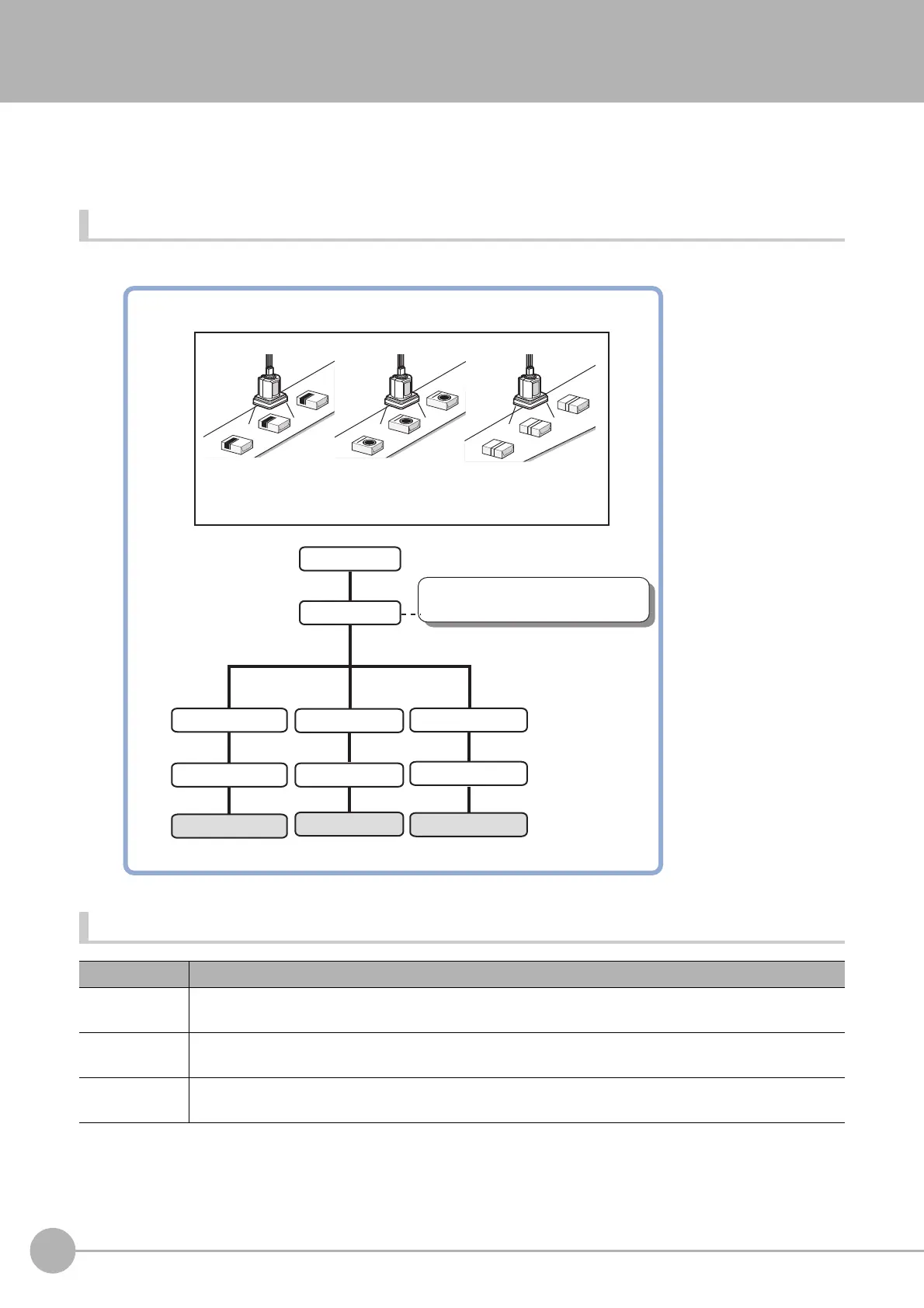

Example) Inspection of snack products by type (by time)
