Gravity and Area
324
FH/FZ5 Processing Item Function Reference Manual

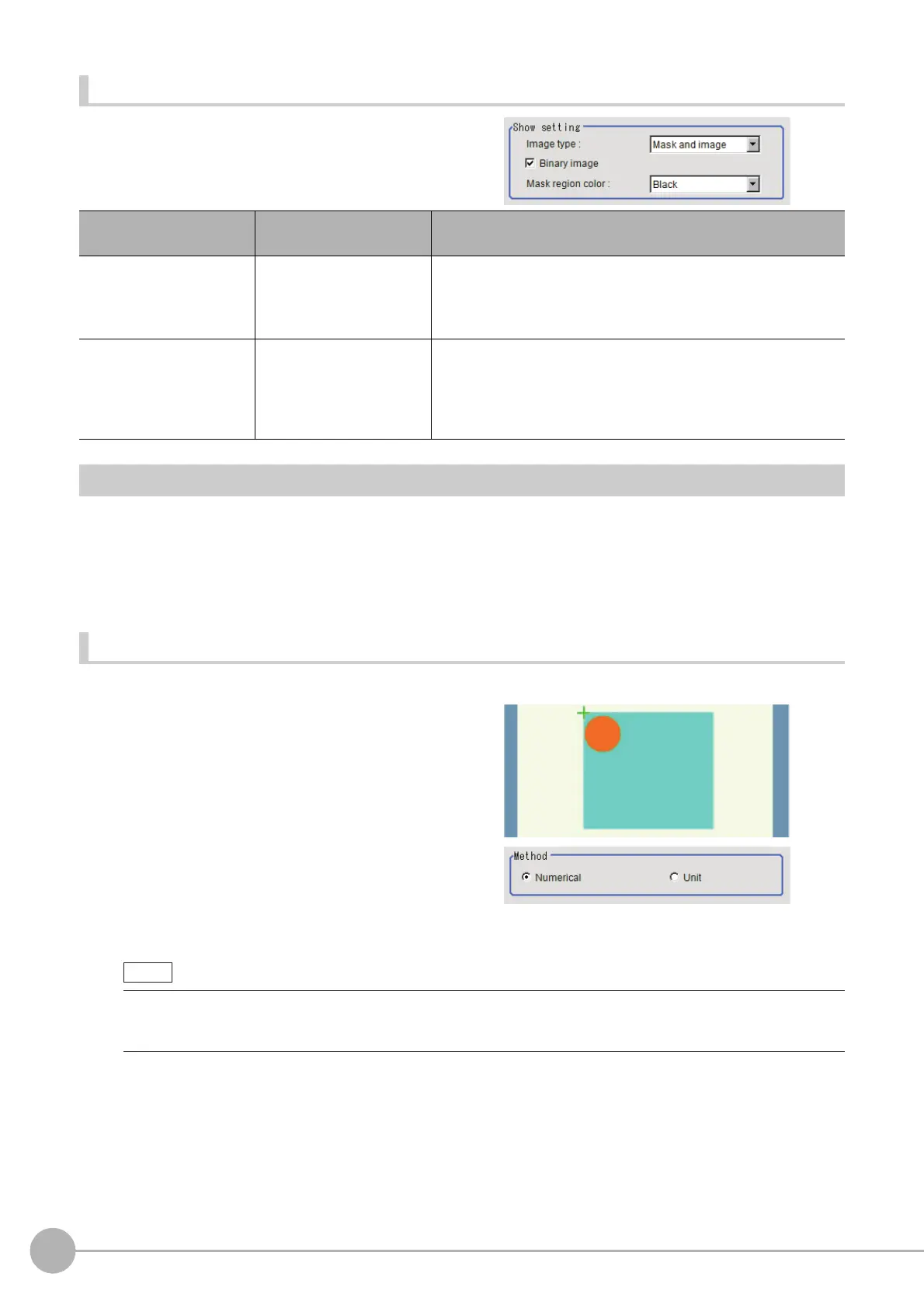

Setting display
Perform the display setting if required.
Reference Setting (Gravity and Area)
When the measurement region is set, the center of gravity is automatically set at the same time as the reference
position. This item is used to change the reference position to any desired position. This is handy for measuring
the position deviation from a certain position. In the same way for the reference area, when the region settings
are made, they are set automatically based on the measurement region.
A reference position can be set either directly or by referencing a unit.
Specifying directly
Click a position on the image you want to use as a reference position, or set coordinate data for that point.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference
position will be displayed as the crosshair
cursor.
2 In the "Method" area, select "Numerical".
3 Click the position to be set as the
reference.
Setting item
Setting value
[Factory default]
Description
Image type
• Measure image
• Mask binary image
• [Mask and image]
Select the type of an image to be displayed.
Measure image: Measured image
Mask binary image: Binarized image for masking
Mask and image: Post-masking image
Mask region color
• [Black]
•White
•Red
• Green
•Blue
Select the display color of the mask region.
A part of color which is specified in
[Ma
sk region color] is not
measured.
• Displaying the image enlarged makes this clicking easier.
Reference: "Appendixes Basic Knowledge about Operations Using th
e Zoom Function" in the "Vision System
FH/FZ5 Series User's Manual (Z365)"
