EC Circle Search
150
FH/FZ5 Processing Item Function Reference Manual

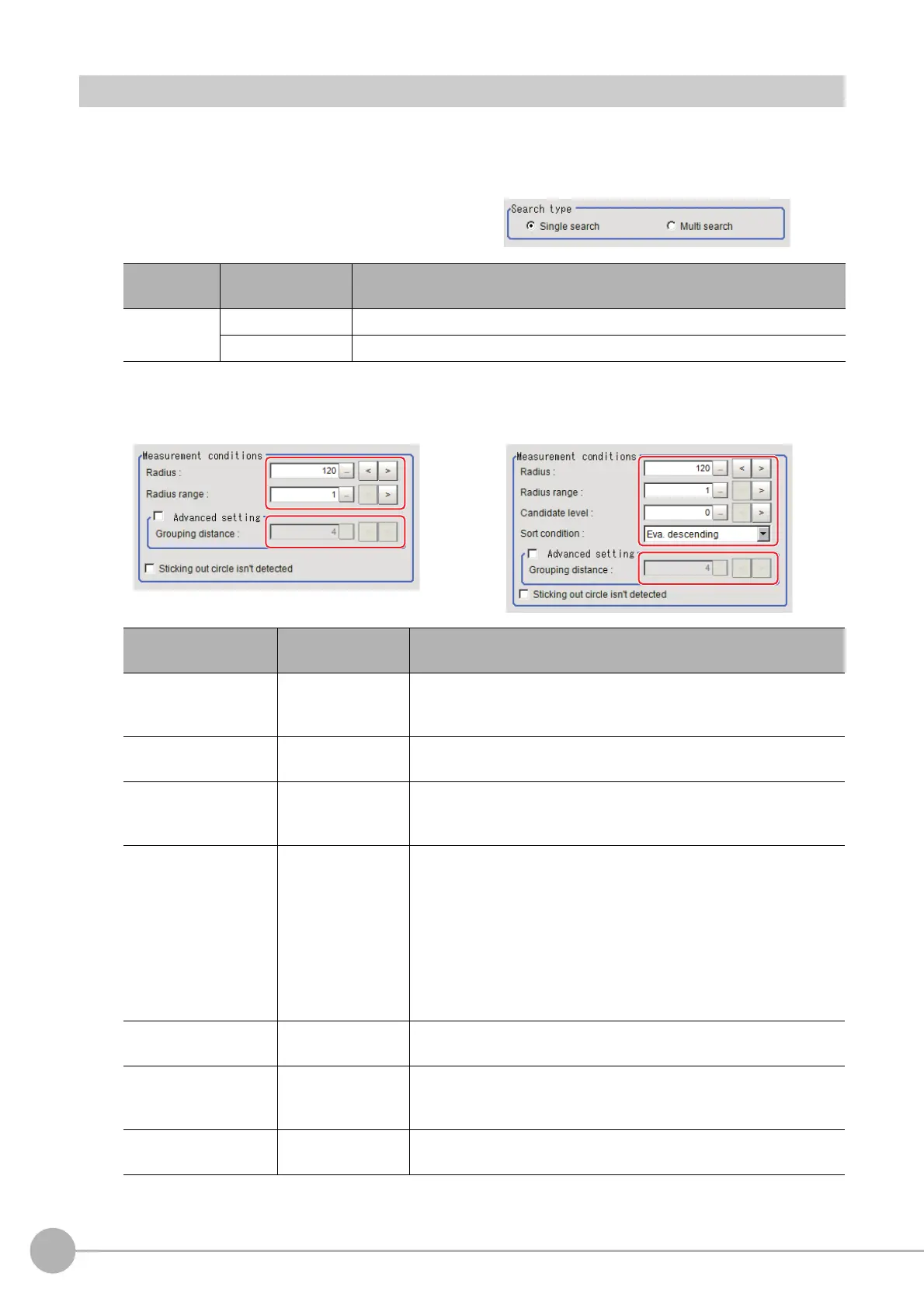

Measurement Parameters (EC Circle Search)
This item specifies the judgement conditions for measurement results. Specify to what degree OK is still judged
in relation to measurement result coordinates (X,Y) and the circle evaluation value with the model.
1 In the Item Tab area, click [Measurement].
2 Select the search type.
3 Set the measurement conditions.
Setting item
Set value
[Factory default]
Description
Search type
[Single search] This is set when there is one circle in the measurement range.
Multi search This is set when there are multiple circles in the measurement range.
For single search For multi search
Setting item
Set value
[Factory default]
Description
Radius
1 to 9999
[Radius drawn using
ci
rcle resister]
This item sets the radius of the circle measured.
This is displayed on the screen with a solid blue line.
Radius range [1] to 9999
This measures the measured circle radius
±
the permitted radius width.
This is displayed on the screen with a broken blue line.
Candidate level
(Multi search only)
[0] to 100
Specify the threshold value used when detecting candidate points in
an
EC circle search. Specify a smaller value when model search
results are unstable.
Sort condition
(Multi search only)
• X ascending
• X descending
• Y ascending
• Y descending
• Eva. ascending
• [Eva. descending]
• Radius ascending
•Radius
d
e
scending
Specify the conditions by which label number is re-assigned.
When sorting referencing the X and Y coordinates, the upper left is
the orig
in.
Advanced setting
• Checked
• [Unchecked]
Place a check at setting the grouping distance.
Grouping distance
1 to 10
[4]
When circles measured overlap, this sets the distance for
distin
guishing circles.
The smaller this value, the easier to distinguish circles.
Sticking out circle isn't
de
tected
• Checked
• [Unchecked]
Place a check here to include circles within the range only.
