ECM SearchFH/FZ5 Processing Item Function Reference Manual

139

Inspecting and Measuring

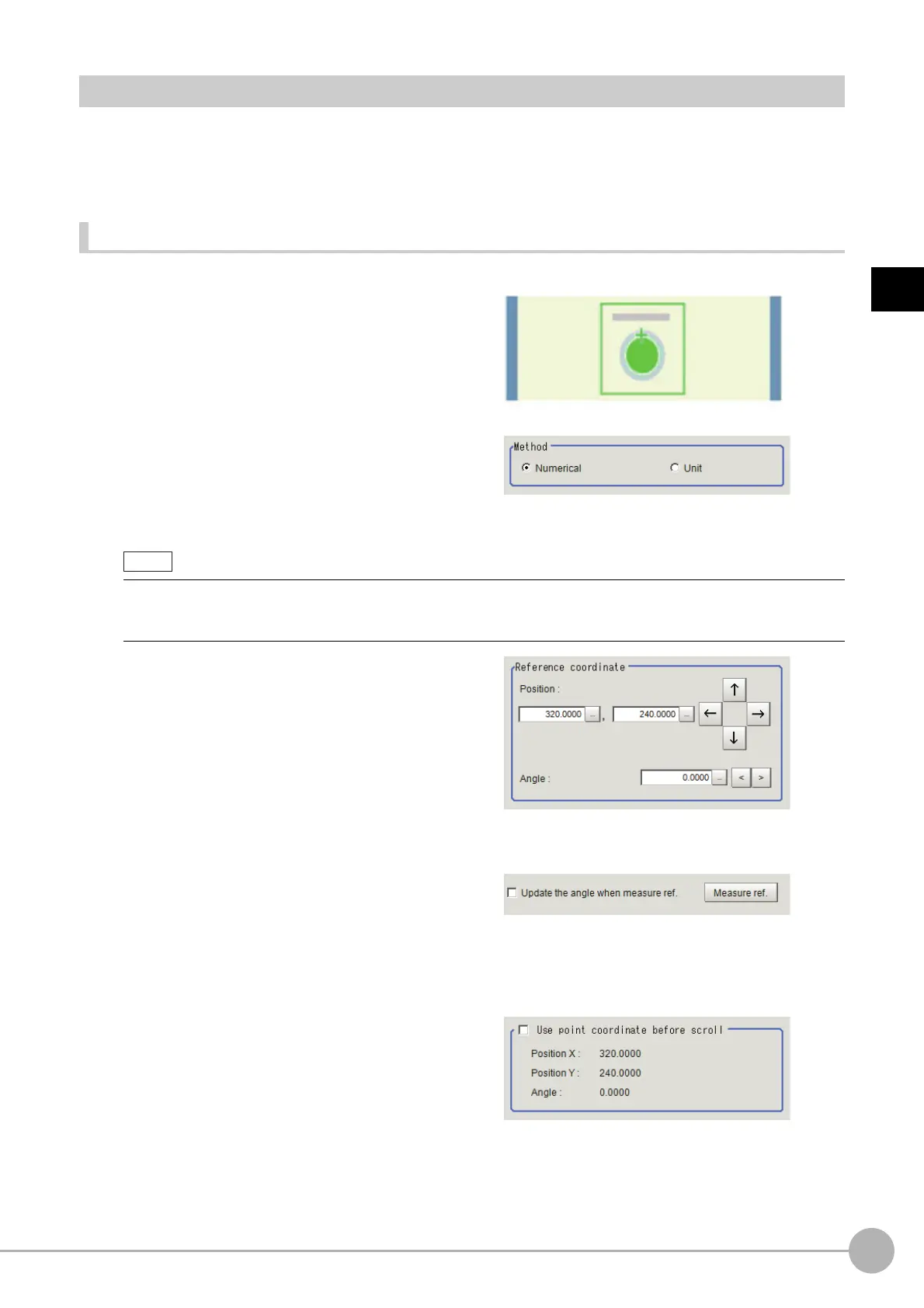

Reference Setting (ECM Search)

When the measurement region is set, this position is automatically set at the same time as the reference

position. This item can be used to change the reference position to any desired position. This is handy for

measuring the position deviation from a certain position.

A reference position can be set either directly or by referencing a unit.

Specifying directly

Click a position on the image you want to use as a reference position, or set coordinate data for that point.

1 In the Item Tab area, click [Ref. setting].

In the display area, the current reference

position will be displayed as the crosshair

cursor.

2 In the "Method" area, select "Numerical".

3 Click the position to be set as the

reference.

4 Make fine adjustments using numeric

value inputs or the arrow buttons as

required.

5 Input the reference angle with a numeric value.

6 To remeasure on the displayed image

and set the reference, click the [Measure

ref.] button. To update the reference

angle at the time of reference

measurement, place a check at "Update

the angle when measure ref.".

7 To use data before position

compensation for the reference setting

coordinates, place a check at "Use point

coordinate before scroll".

• Displaying the image enlarged makes this clicking easier.

Reference:  "Appendixes Basic Knowledge about Operations Using th

e Zoom Function" in the "Vision System

FH/FZ5 Series User's Manual (Z365)"
