CalculationFH/FZ5 Processing Item Function Reference Manual
621
4
Support Inspection and Measurement
7 To display comments in the "Detail
result display" area, check "Comment
view".
8 Set up the judgement upper limit and the judgement lower limit for "Judgement condition".
9 Repeat the Steps Reference: 2 (p.620) to Reference: 8 (p.621) and set up the expression.
Output Parameters (Calculation)
Specifies whether or not the judgement results of this processing unit is reflected in the scene overall judgement.
1 Click [Output parameter] in the Item Tab area.
2 Choose whether or not to reflect this in the scene overall judgement in "Reflect to overall
judgement" area.

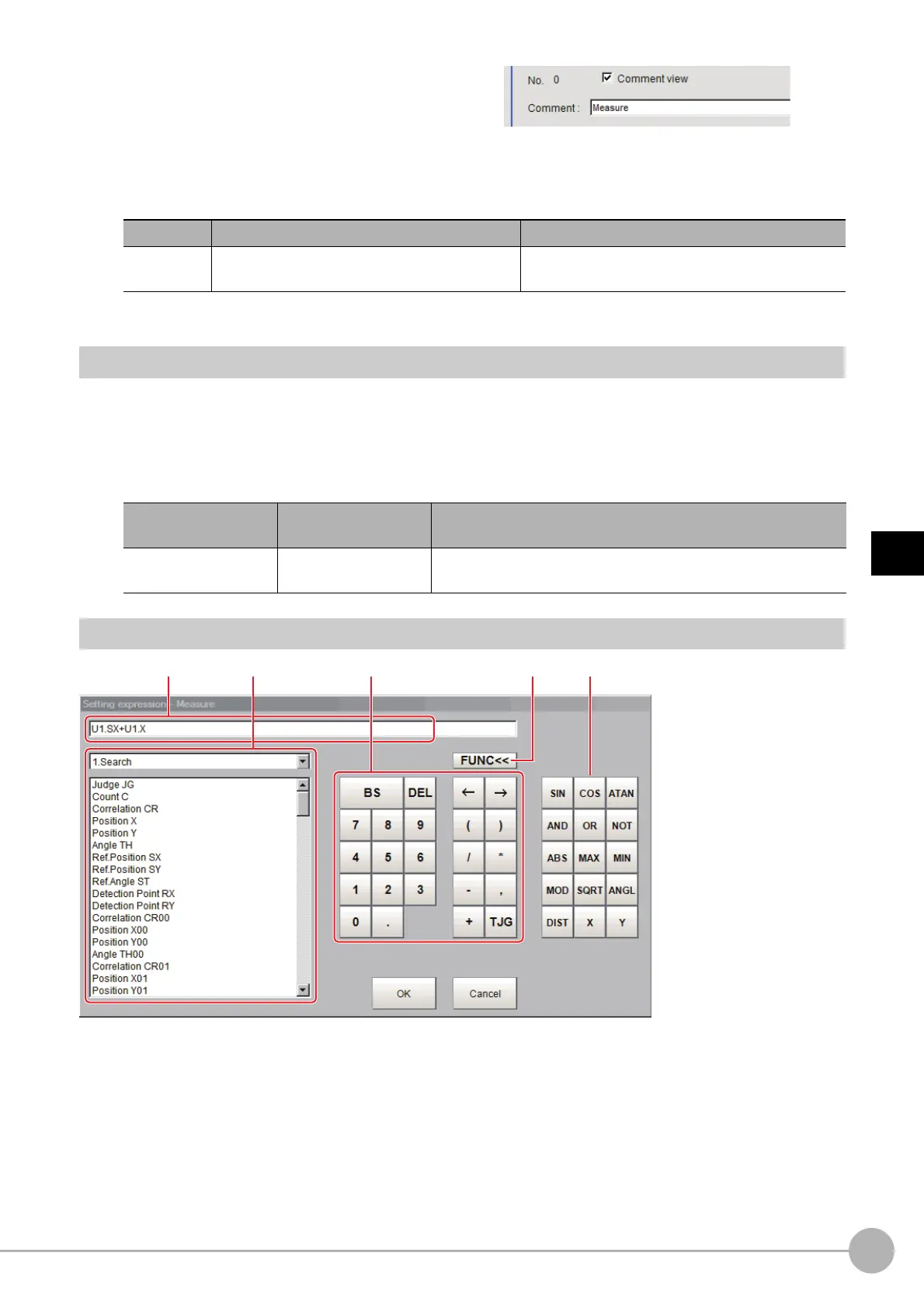

Layout of Setting Expression Window
Setting item Set value Description
Judgement
condition
-999
999999.9999 to 999999999.9999
This is a judgement condition for the expression.
Set
upper and lower limits for judging as OK.
Setting item
Set value
[Factory default]
Description
Reflect to overall
judgemen
t
[ON]
•OFF
Enables choosing whether or not the judgement results of this
processing unit is reflected in the scene overall judgement.
ab c de
