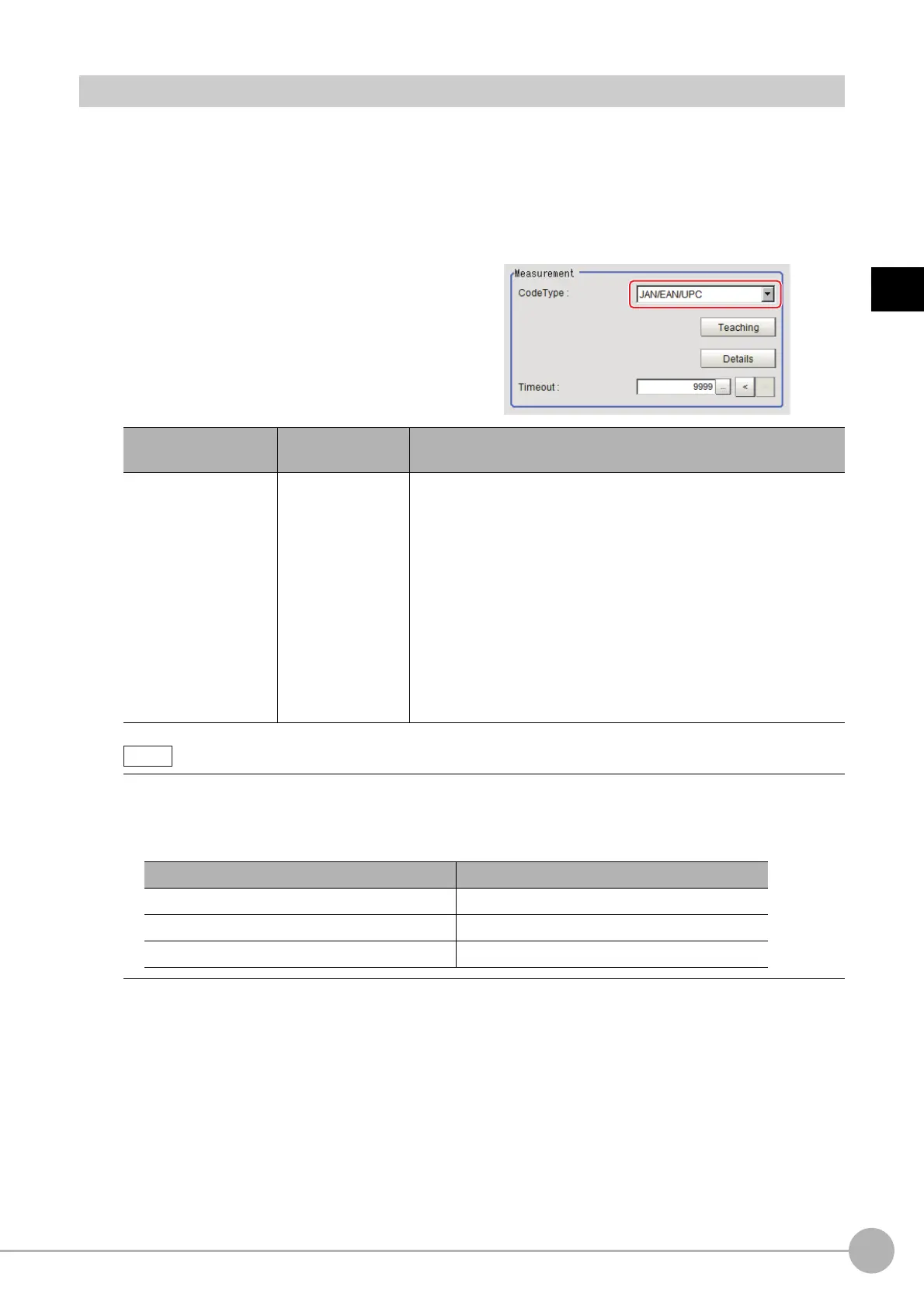

BarcodeFH/FZ5 Processing Item Function Reference Manual
439
2
Inspecting and Measuring
Measurement Parameters (Barcodes)
This item sets the judgement conditions for measurement conditions and measurement results.
When the Teaching button is pressed, the code type and ad
vanced settings are set automatically.
If you then click the Measure button, measurement is executed, the detected barcode region is displayed on the
image an
d the measurement results are displayed as measurement value of the judgement condition.
If measurement cannot be carried out successfully with this pr
oced
ure, adjust the parameters shown below.
1 In the Item Tab area, click [Measurement].
2 In the "Measurement" area, set the Code
Type.
3 To set measurement parameters automatically, click [Teaching].
The following setting items have their detailed settings automatically set.
• Code Type
• Composite reflex
• Auto Magnify level
• Magnify level
Setting item
Set value
[Factory default]
Description
Code Type
• [JAN/EAN/UPC]
• Code39
• Codabar
•ITF
• Code93
• Code 128/GS1-
12
8
•
GS1 DataBar
• Pharmacode
Select the code type for the code to read.
• JAN/EAN/UPC: Read JAN/EAN/UPC-format barcodes.
• Code39: Read Code39-format barcodes.
• Codabar: Read Codabar(NW-7)-format barcodes.
• ITF: Read ITF(Interleaved 2 of 5)-format barcodes.
• Code93: Read Code93-format barcodes.
• Code 128/GS1-128: Read barcode
s in
the Code128/GS-128 and
GS1-128 Composite Code (CC-A, CC-B, CC-C) formats.
• GS1 DataBar: Read barcodes in the GS1 DataBar* (Truncated,
S
t
acked, Omni-directional, Stacked Omni-directional, Limited,
Expanded, Expanded Stacked) and GS1-DataBar Composite Code
(CC-A, CC-B) formats.
• Pharmacode: Read Pharmacode-format barcodes.
• The designations of the following code types are sta
nda
rdized to those conforming to GS1Databar from 2010.
With FH/FZ5, current designation "GS1Databar" and o
ld designation "RSS" are both indicated.
Select each code type of a new designatio
n conforming to GS1DataBar.
GS1 Databar code type new/old comparison table
Note
Code type name Official name
GS1 DataBar (RSS-14) GS1 DataBar Omni-directional
GS1 DataBar (RSS Lim.) GS1 DataBar Limited
GS1 DataBar (RSS Exp.) GS1 DataBar Expanded
