Data LoggingFH/FZ5 Processing Item Function Reference Manual
685
4
Support Inspection and Measurement

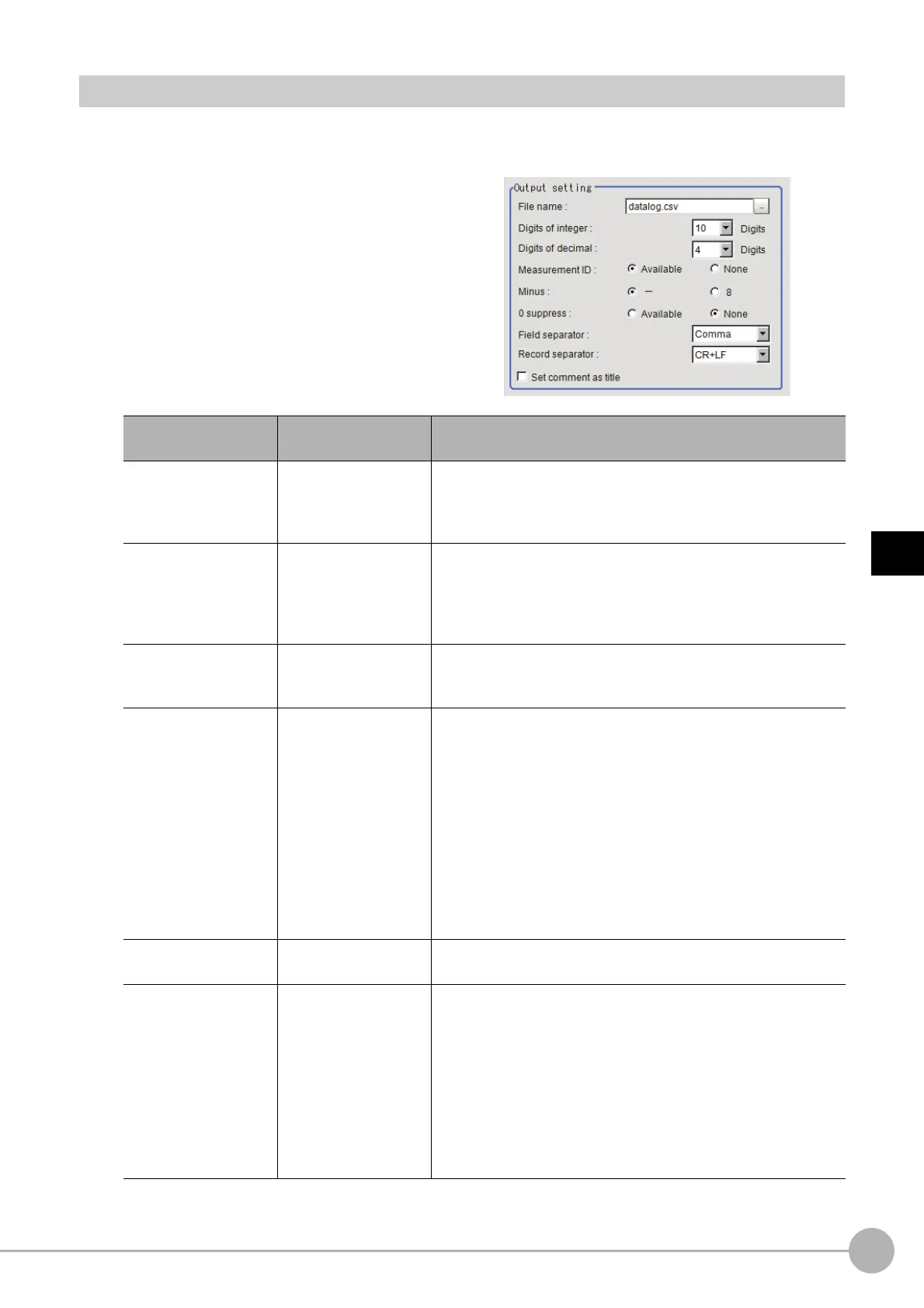

Output Format (Data Logging)
Sets the output format for logging data.
1 In the Item Tab area, click [Output format].
2 Set up each item as necessary.
Setting item
Set value
[Factory default]
Description
File name datalog.csv
Half-width alphanumeric characters are used for File name. (Max:
128 characters)
Set the folder name and file name such that they are no more than
25
5 characters co
mbined.
Digits of Integer 1 to [10]
Specify the digits of the integer part incl
uding the sign. For positive
numbers, the plus sign is not output.
Example
Setting: 4 digits, Data: -5619
-999 is output.
Digits of Decimal 0 to [4]
Specify the number of output digits in
the decimal part. Decimals
are rounded up and output. When 0 is selected, the decimal digits
will be rounded off.
Measurement ID
• [Available]
•None
Select whether to output the measu
rement ID at the head of the
output data.
Measurement ID : measurement time YYYY-MM-DD_HH-MM-SS-
XXXX
(YYYY: Calendar, MM: Month, DD: Day
,
HH: Hour, MM: Minute,
SS: Second, XXXX: Millisecond and Line number.)
Example
Measurement time: 11:10:25.500 AM, December 24, 2007 and
Li
ne 0, the measurement ID is "2007-12-24_11-10-25-5000".
Since the file name of the logging image also includes the same
mea
s
urement ID, confirmation of the measurement data and
image data can be performed with the measurement ID.
Minus
•[-]
•8
Select what is displayed in the sign column for a negative number.
0 suppress
• Available
•[None]
Select the method for adjusting when there is a blank to the left of
the ou
tput data.
Available: Insert 0 into the blank digit space.
None: Insert a space in the loca
ti
on with no character.
Example
When integer section setting: 5 digits, decimal section setting: 3
di
git
s,
data is 100.000
Available: 00100.000
None: _100.000 (_ represents a space)
To Next Page
