Set Unit FigureFH/FZ5 Processing Item Function Reference Manual
655
4
Support Inspection and Measurement

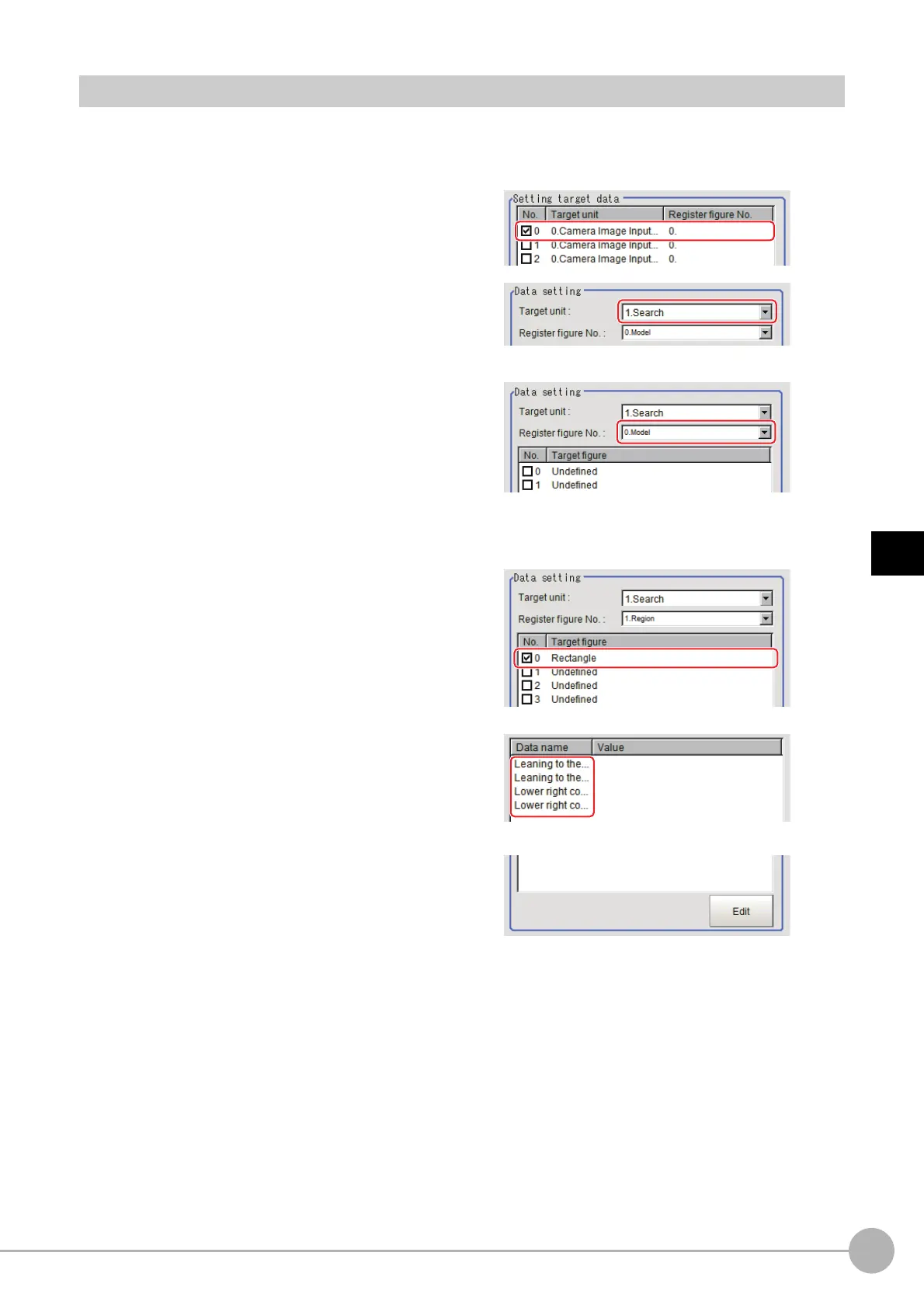

Parameter Settings (Set Unit Figure)
Up to 8 figures can be set for each set unit figure.
To set multiple figures for one target unit,
set different register figure Nos.
1 Click the target unit in the "Setting target
data" area and check the No. column.
2 In the "Data setting" area, click the
[Target unit] [ ] to select the target unit.
The target unit name in the "Setting target
data" area is also reflected automatically.
3 In the "Data setting" area, click the
[Register figure No.] [ ] to select the
figure to be registered.
Target figures included in the selected figure
are displayed.
The registered figure name in the "Setting
ta
rg
et data" area is also reflected
automatically.
4 Click the target figure whose data you
want to set and check the No. column.
5 Click the name of the data that you want
to rewrite.
6 Click [Edit] to set up the overwrite
details using an expression.
Reference: Layout of Setting Expression
Window (p.621)
7 Click [OK].
An area is displayed on the image based on settings.
To Next Page
