Conditional Branch
832
FH/FZ5 Processing Item Function Reference Manual

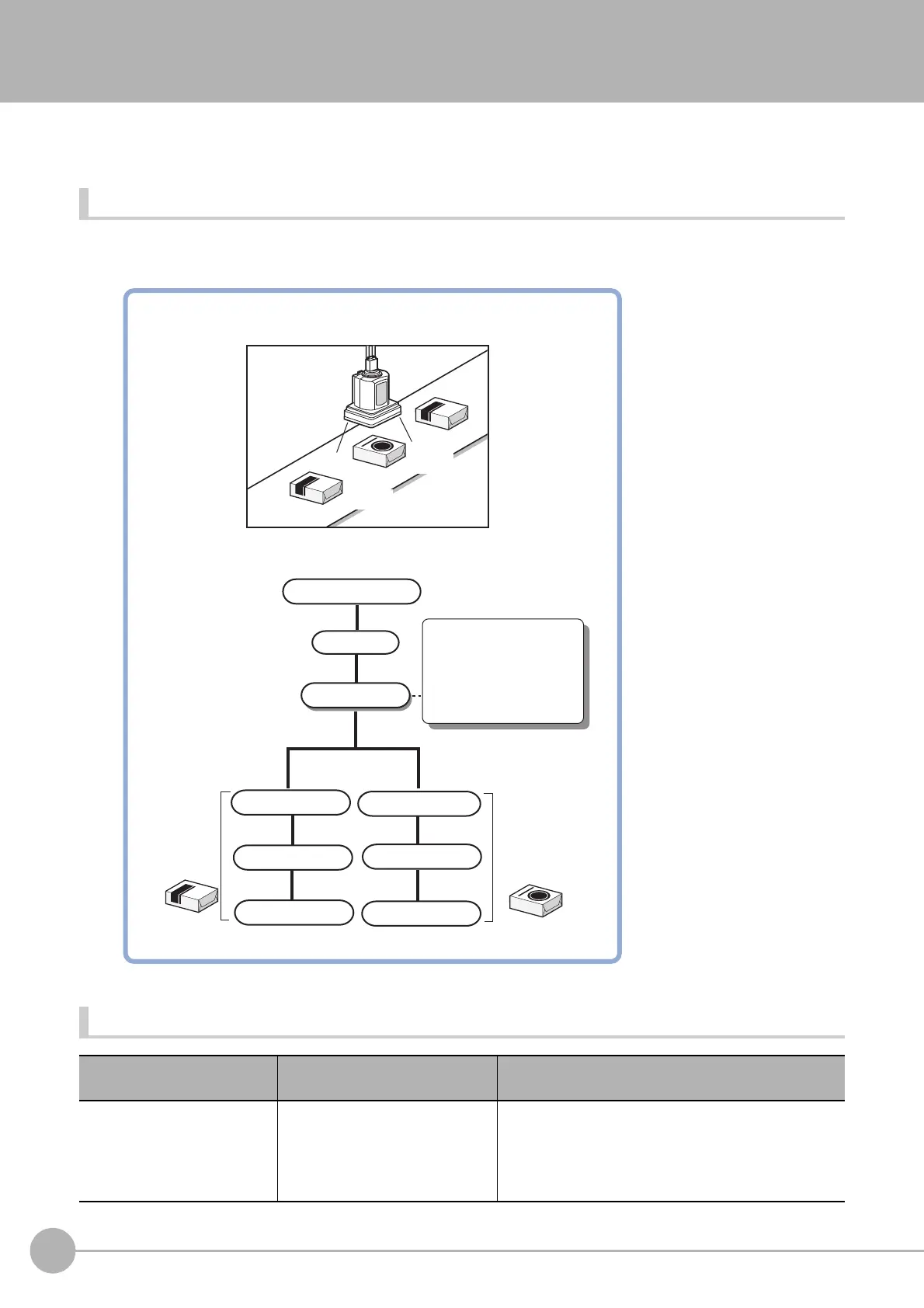

Conditional Branch
Expressions and conditions are set, and processing after this processing item is divided into two according to the
comparison calculation.
Used in the Following Case
• When two more types of products are on the production line and inspection is to be
performed separately for each
List of Conditional Branch Items
Set
Set value
[Factory default]
Description
Condition
• [A = B]
•A ≤ B
•A < B
•A ≥ B
•A > B
Select the method to compare expression A and B.
Comp
a
re two data items that are obtained through
conditional expressions.
Expression A: To obtain
index No.
Expression B: 0
Condition: A = B
YES→3. Edge Position
NO→6. Fine Matching
8
5
NO
YES
Parallel judgement Output
7
Parallel judgement Output
4
Classification
1
0
3
Edge position
2
Conditional Branch
Measurement
items of Type 2
Measurement
items of Type 1
Type 1
Type 2
Fine matching
6
Camera Image Input
End
End
Example) Detect the printing quality of candy boxes.
To Next Page
