Multi-trigger Imaging Task
90
FH/FZ5 Processing Item Function Reference Manual
Multi-trigger Imaging Task
This function can be used only with FH series/FZ5-800 series/FZ5-1100 series/FZ5-1200 series. The Multi-
trigger Imaging processing item captures multiple images at user-defined timings and executes parallel
measurement for each image. If you append this processing item in the flow, Multi-trigger Imaging Task and
Camera Image Input FH will be added as a group. The Multi-trigger Imaging Task does not require setting. Insert
this processing item to the top of the processing which requires imaging for multiple times. The Multi-trigger
Imaging, Multi-trigger Imaging Task, and Multi-trigger Imaging End cannot be used alone. Please use them as a
group.
Reference: Cha
nging the System Environment - Multi-trigger imag
ing Function in the Vision System FH/FZ5
Series User's Manual (Cat. No. Z365).
Used in the Following Case
Systems which capture multiple images at user-defined timings and executes parallel measurement for each
image.

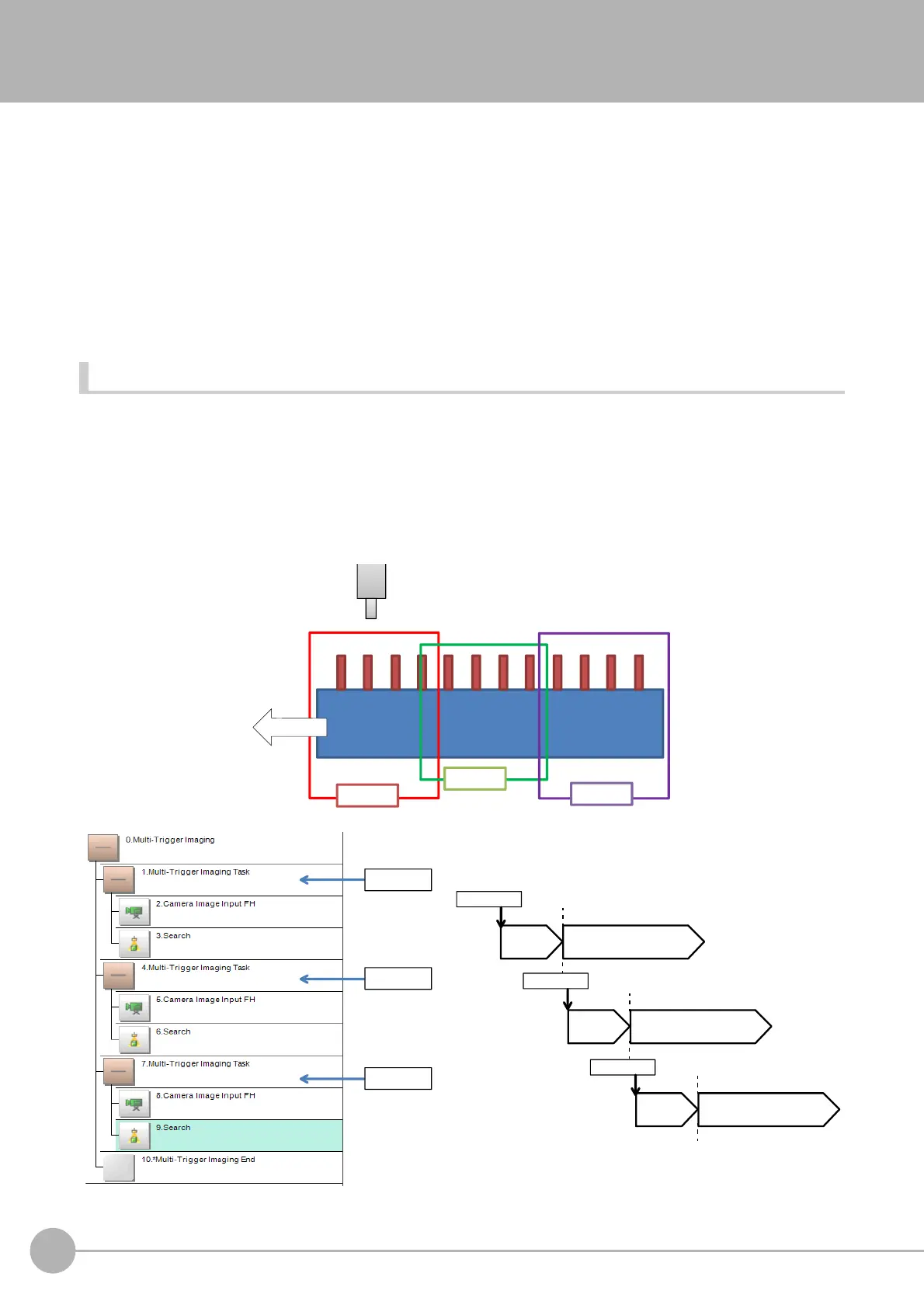

Example:
This function takes multiple images of a long and thin workpiece
at certain timings. While the system takes
images for multiple times, it executes measurement for each image in parallel. After that, measurement
processing is performed based on the measurement results.
1
st
STEP
2
nd
STEP
3
rd
STEP
3. Search
9. Search
6. Search
1
st
STEP
2
nd
STEP
3
rd
STEP
Image transfer completed
Image transfer completed
Image transfer completed
STEP(1)
STEP(2)
STEP(0)
Move
2. Camera
image input FH
5. Camera
image input FH
8. Camera
image input FH
To Next Page
