FH/FZ5 Processing Item Function Reference Manual

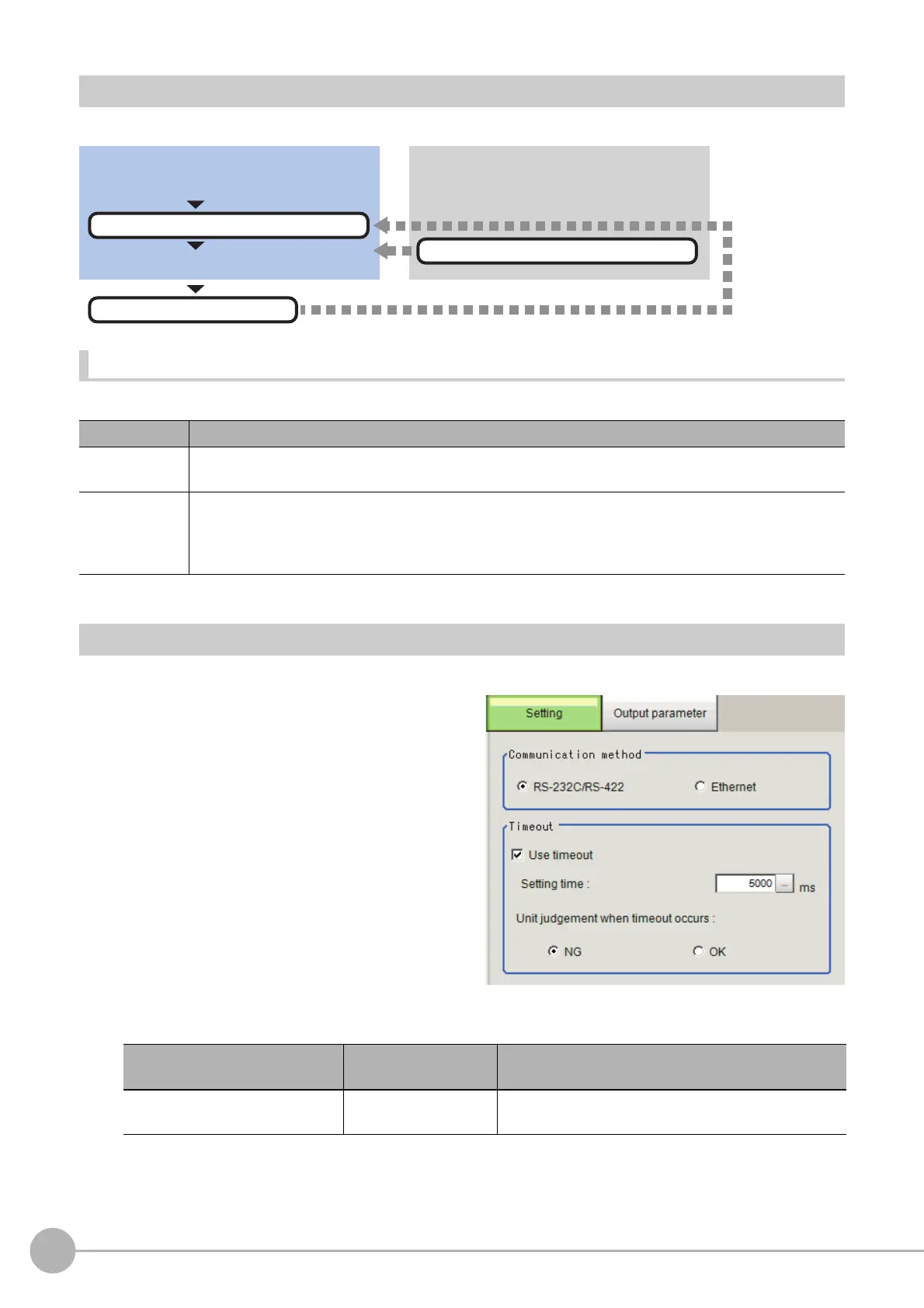

Settings Flow (Control Flow Normal)
Set up control flow normal according to the following steps.
List of Control Flow Normal Items
The following items can be set in control flow normal.
Settings (Control Flow Normal)
Set communication and timeout conditions for controlling the measurement flow.
1 In the Item Tab area, click [Setting].
2 In the “Communication method” area,
specify a value for each item.
Item name Description
Setting
Set communication and timeout conditions for controlling the measurement flow.
Reference: Settings (Control Flow Normal) (p.842)
Output
p
arameter
You can set this item to change the output parameters.
Set the conditions and parameters for outputting me
asurement results to other processing units or
external devices.
Reference: Measurement Results for Which Output Is Possible
(Control Flow Normal) (p.844)
Setting item
Setting value
[Factory default]
Description
Communication method
• [RS-232C/RS-422]
• Ethernet
Select the communication method used for controlling
the measuremen
t flow from an external device.
Necessary Steps Optional Steps
Check results/adjust parameters
▲
Settings (Control Flow Normal)
▲
Output Parameters (Control Flow Normal)
Start
Settings completed
Test measurement
