2D CodeFH/FZ5 Processing Item Function Reference Manual
417
2
Inspecting and Measuring
2D Code
Read in 2D Code.
Processing can also classify the read-in results.
With 2D Code, detailed communication and reading result can be output.
Used in the Following Case
• To classify with 2D Code

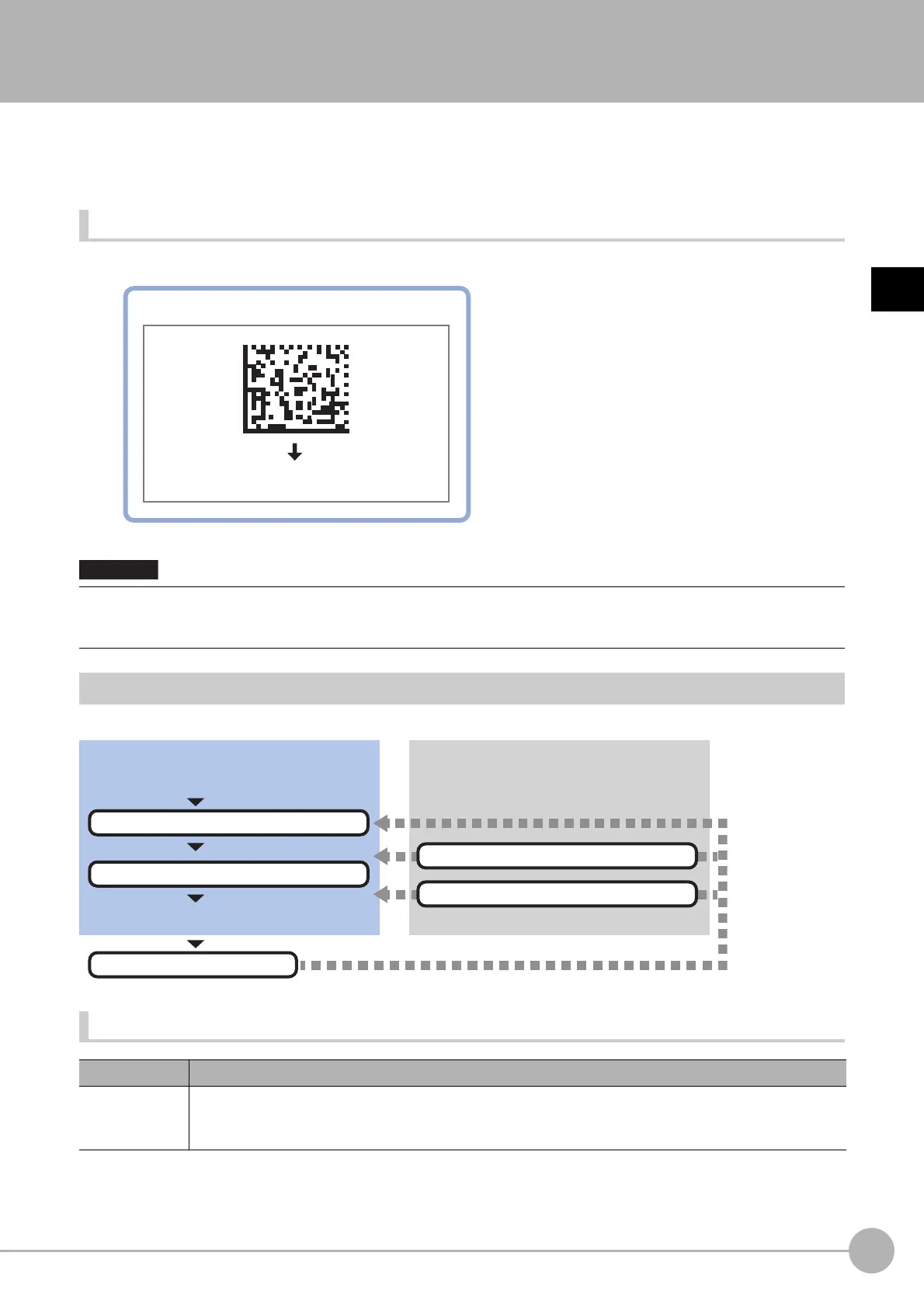

Settings Flow (2D Code)
The setting procedure for 2D Code is as follows.
List of 2D Code Items
• Does not support 2D Code with Japanese included. Supports 2D Code that are composed entirely of ASCII code.
• Processing is different for color images and monochrome images. If
the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.
Item name Description
Region setting
This item is used to set up the measurement area.
Restricting the measurement range can shorten the proces
sing time.
Reference: Region Setting (2D Code) (p.418)
Example) 2D code is read and character string is output.
4 3 8 2 5 6
Necessary Steps Optional Steps
Very/Adjust results
▲
Region Setting (2D code)
Start
Settings completed
Test measurement
▲
Measurement Parameters (2D code)
▲
Output Parameters (2D code)
▲
Results Settings (2D code)
To Next Page
