Branch

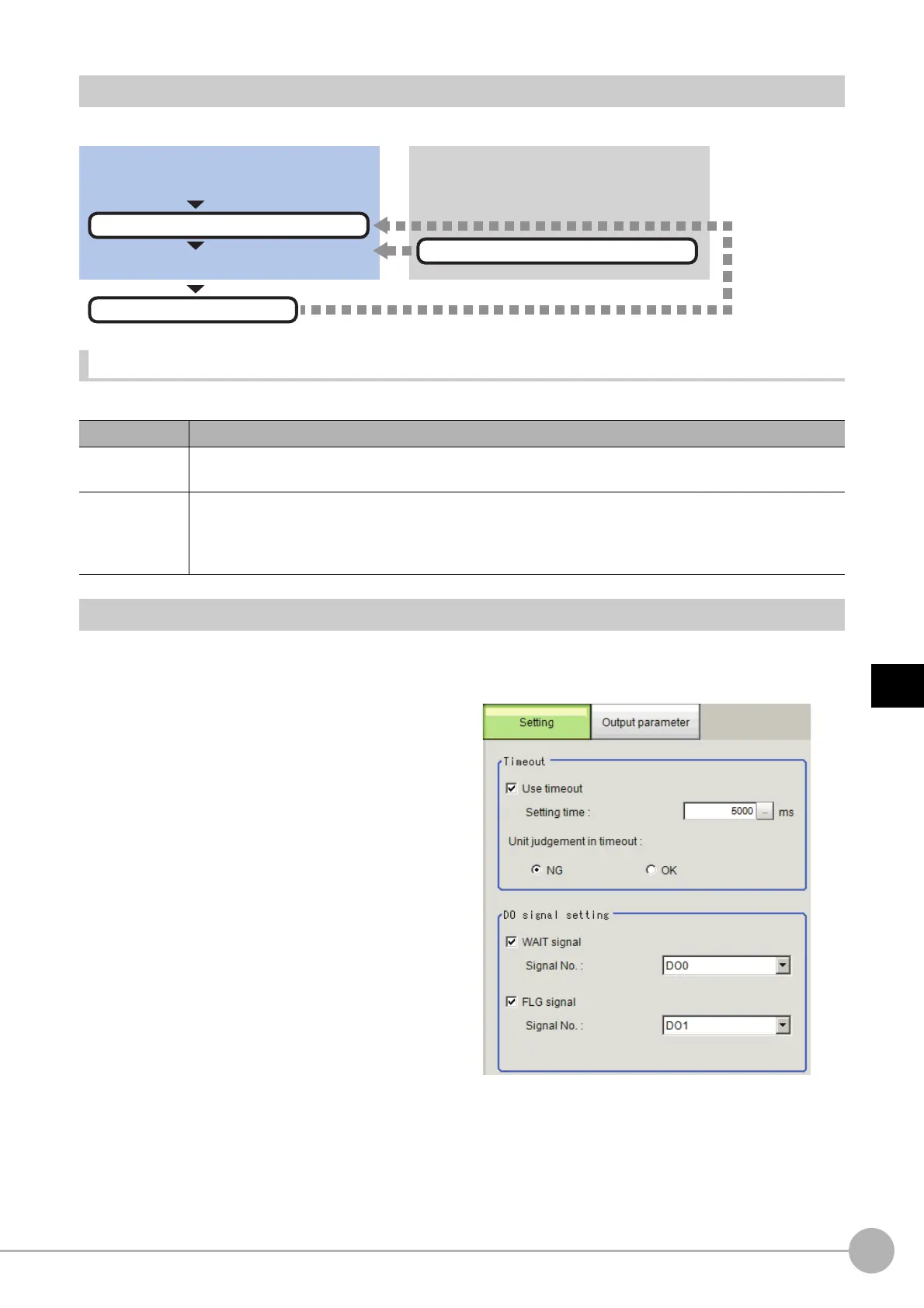

Settings Flow (Control Flow Parallel)
Set up control flow parallel according to the following steps.
List of Control Flow Parallel Items
The following items can be set in control flow parallel.
Settings (Control Flow Parallel)
Set communication and timeout conditions for controlling the measurement flow.
1 In the Item Tab area, click [Setting].
2 In the “Timeout” area, specify a value for
each item.
Item name Description
Setting
Set communication and timeout conditions for controlling the measurement flow.
Reference: Settings (Control Flow Parallel) (p.853)
Output
p
arameter
You can set this item to change the output parameters.
Set the conditions and parameters for outputting me
asurement results to other processing units or
external devices.
Reference: Output Parameters (Control Flow Normal)
(p.843)
Necessary Steps Optional Steps
Check results/adjust parameters
▲
Settings (Control Flow Parallel)
▲
Output Parameters (Control Flow Parallel)
Start
Settings completed
Test measurement
