Position Compensation
508
FH/FZ5 Processing Item Function Reference Manual
Position Compensation
The positional deviation of measurement objects can be corrected using measured values saved by other
processing units. Compare the measured coordinates with the reference coordinates of the applicable
processing unit, and move the image by the amount of the difference.
Used in the Following Case
• Even with different positions for the same measurement object, correct measurement can
still be performed by correcting the position of the input image. There is no need to reposition
the measurement object itself.
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.
Use the measurement values (searched
measurement coordinate X and Y) of the
previous unit to modify the position of the
measurement object
1.
2.
0.
Measurement
object

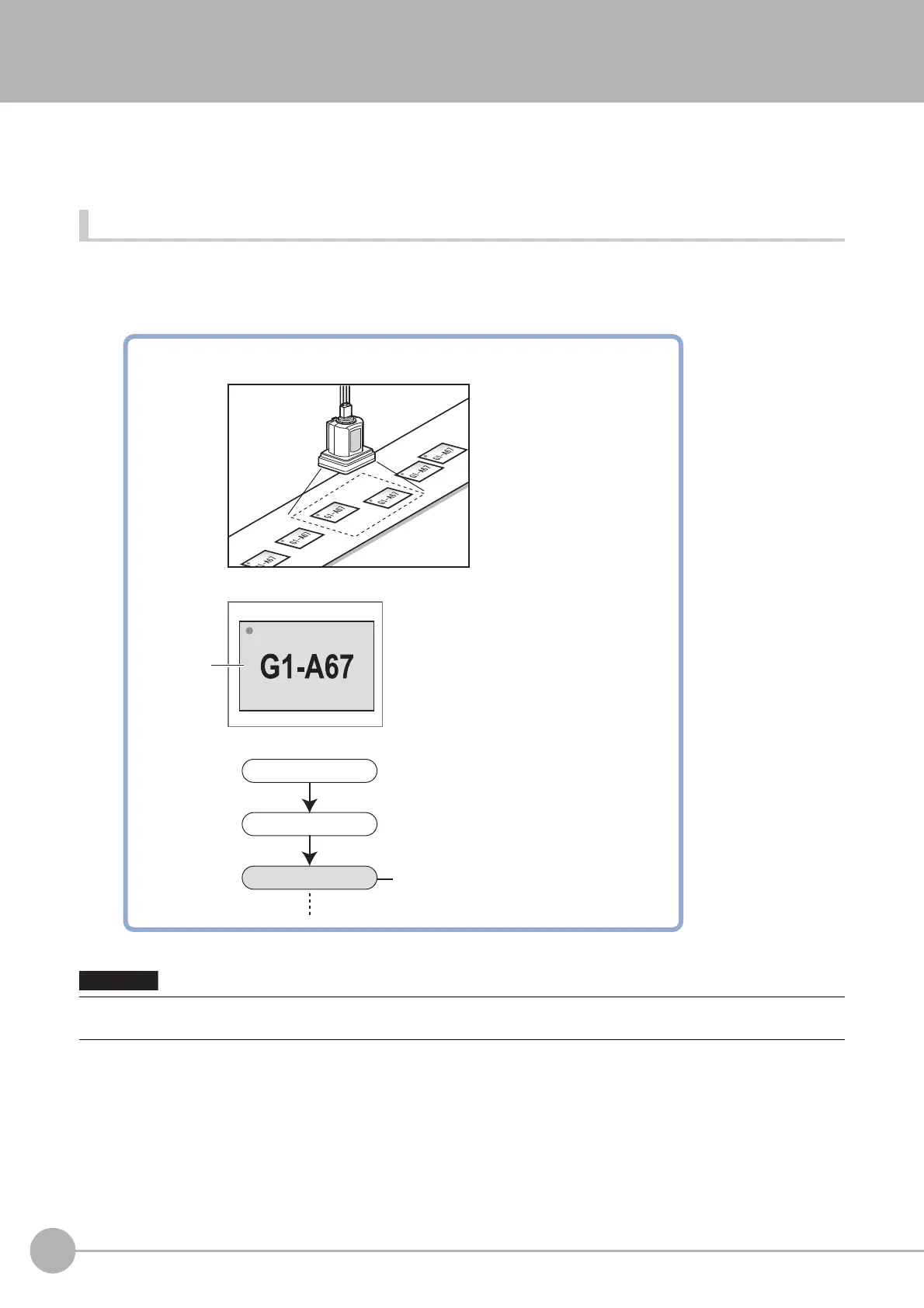

Example) Using the searched position to perform position compensation.
Position Compensation
Camera Image Input
Search
To Next Page
