Set Unit Data
650
FH/FZ5 Processing Item Function Reference Manual
Set Unit Data

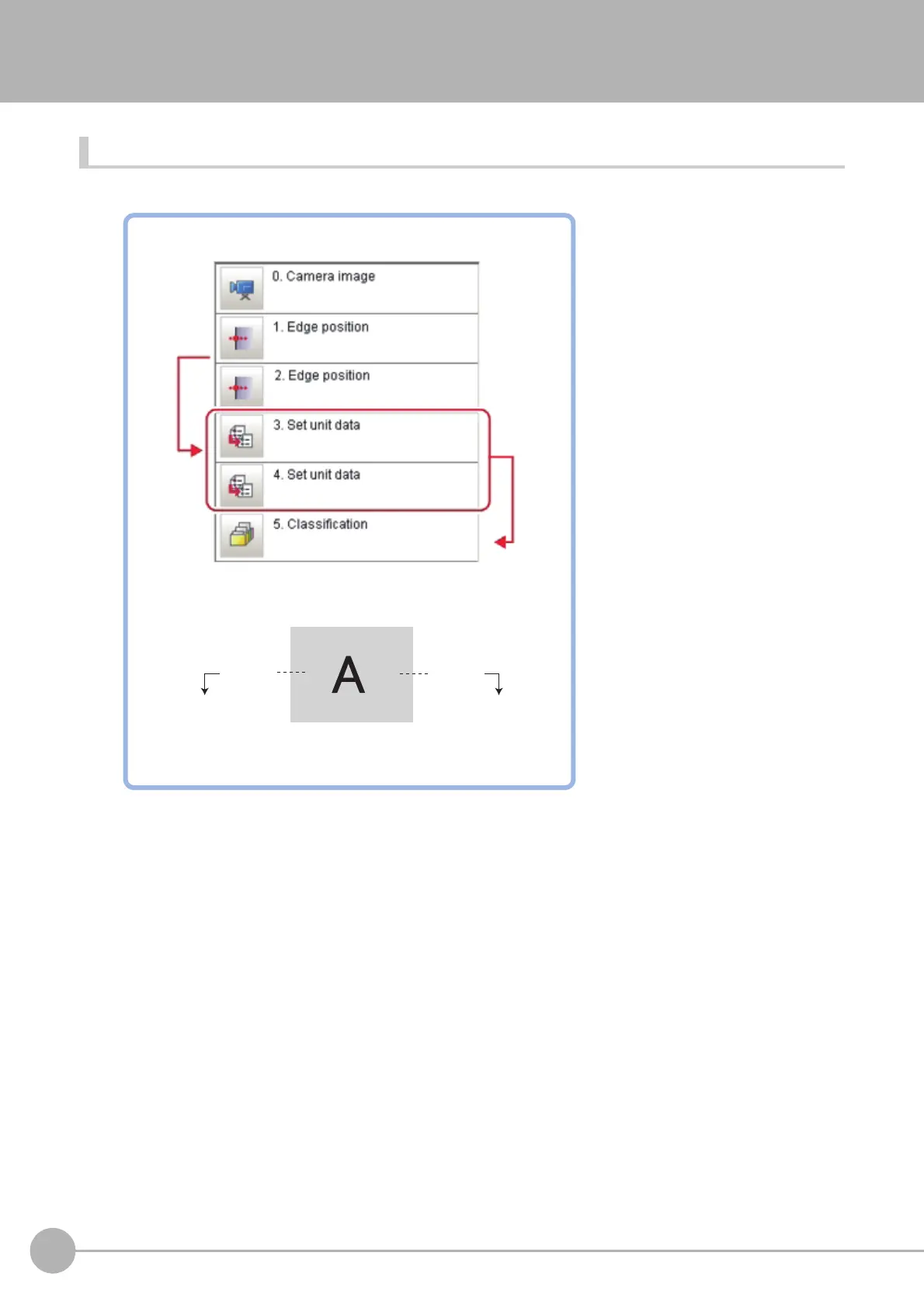

Used in the Following Case
When you want to overwrite processing unit data while measuring
Region 0 Region 1
Rewrite the detected X
coordinate to the lower
limit value of the
measurement coordinate
X in [5. Search].
Rewrite the detected X
coordinate to the upper
limit value of the
measurement coordinate
X in [5. Search].
Example) Adjust the search range based on the size of measurement object.
• Measurement the width of the measurement object by “1 Edge position”
and “2 Edge position”
• Adjust the judgement condition of the measurement coordinate X in
[5. Search] based on the result.
