Edge PitchFH/FZ5 Processing Item Function Reference Manual
235
2
Inspecting and Measuring
Edge Pitch
Finds and counts the edges by measuring the color change within the measurement region.
Used in the Following Case
• When calculating number of pins of IC or connectors
• To calculate the pin width and the distance (pitch) between mid-point
s between two pins
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.
• Edge image measurement processing mechanism
Reference: "Appendixes Measurement Mechanism Edge Detection
Measurement" in the "Vision System FH/FZ5
Series User's Manual (Z365)"

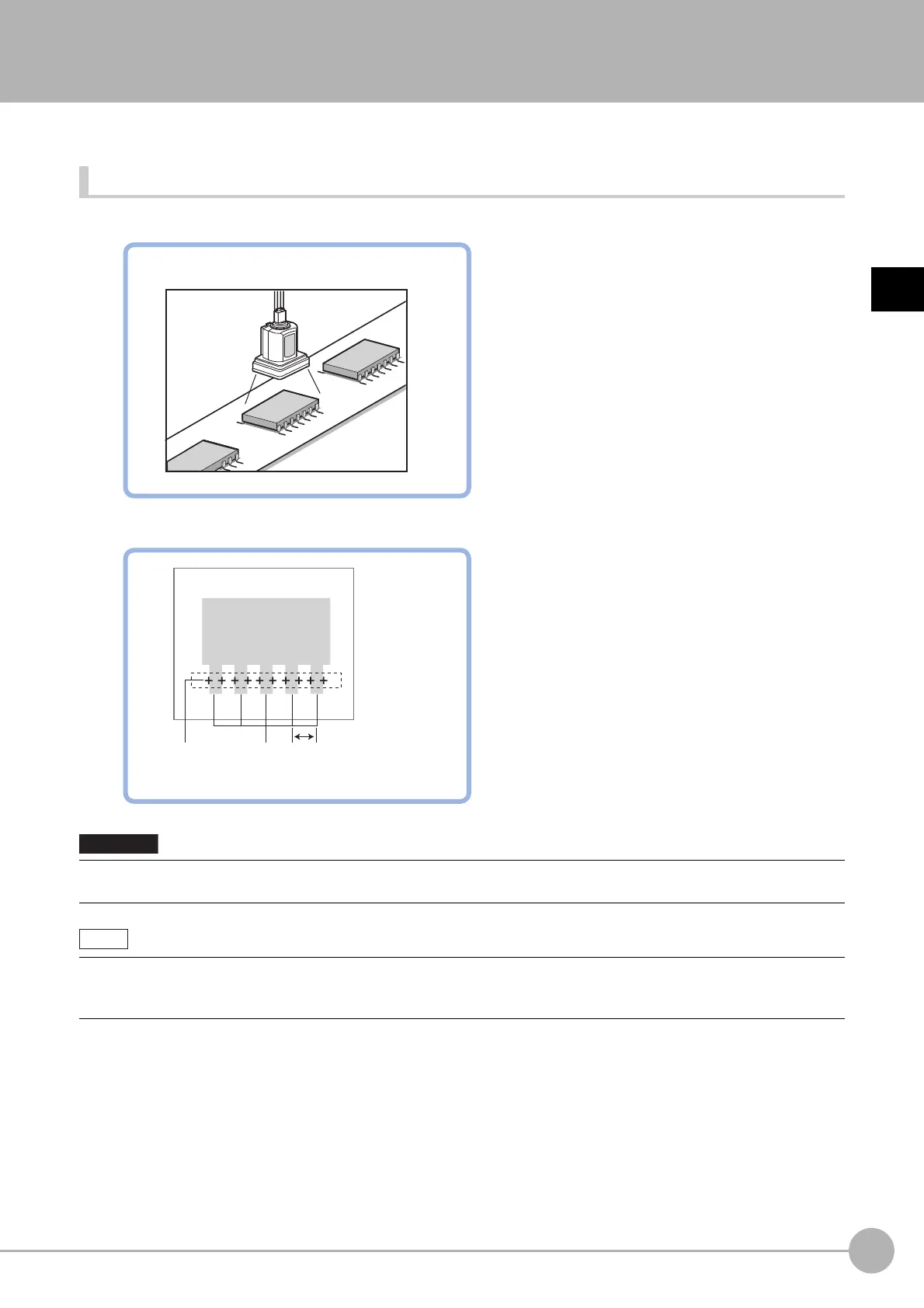

Example) Measurement of number of IC pins
Edge Number Pitch
(distance between two
central points)
