Calc Axis Move by Multipoint
798
FH/FZ5 Processing Item Function Reference Manual
List of Calc Axis Move by Multipoint Items

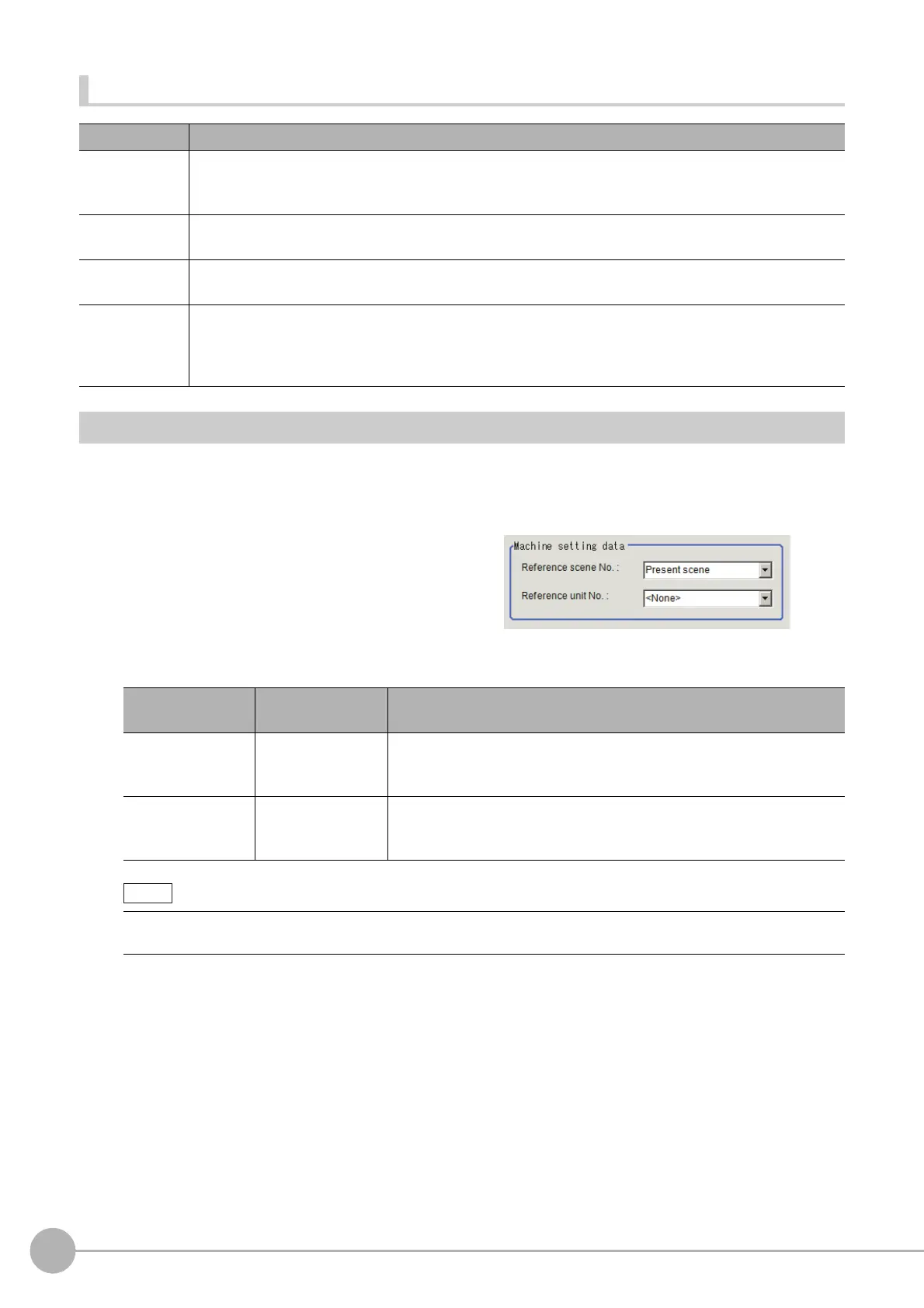

Machine Setting (Calc Axis Move by Multipoint)
Select a processing item (stage data or robot data) under which external device information needed for
calculation of axis movement amount is held.
1 In the Item Tab area, click [Machine setting].
2 Select the reference scene No. and
reference unit No.
Information of the selected processing unit is
displayed in the reference data display area.
Displayed contents differs depending on
se
lect
ed type of robot or stage.
Item name Description
Machine setting
Select the processing items (stage or robot data) cont
a
ining information about external device necessary
to calculate the axis movement amount.
Reference: Machine Setting (Calc Axis Move by Multipoint)
(p.798)
Calc. p
arameter
Set the reference position and measurement po
siti
on using an arithmetic expression.
Reference: Calc. Parameter (Calc Axis Move by Multipoint) (p.799)
Ju
dgement
condi
tion
This item specifies the judgement condition for measurement results.
Reference: Judgement Condition (Calc Axis Move by Multipoint) (p.804)
Output
parameter
This item can be changed if necessary.
Set whether or not the judgement results of this pro
cessing unit is reflected in the scene overall
judgement.
Reference: Output Parameter (Calc Axis Move by Multipoint) (p.805)
Setting item
Setting value
[Factory default]
Description
Reference scene
No.
[Present scene]
Scenes 0 to 127
Select a scene number (stage data or robot data) under which external
device i
nformation needed for calculation of axis movement amount is
held.
Reference unit No. ---
From among the referenced scene numbers, sele
ct a processing item
(stage data or robot data) under which external device information
needed for calculation of axis movement amount is held.
• If the number of scenes is increased using the scene g
r
oup conversion tool, the maximum value that can be
selected in "Reference scene No." changes.
To Next Page
