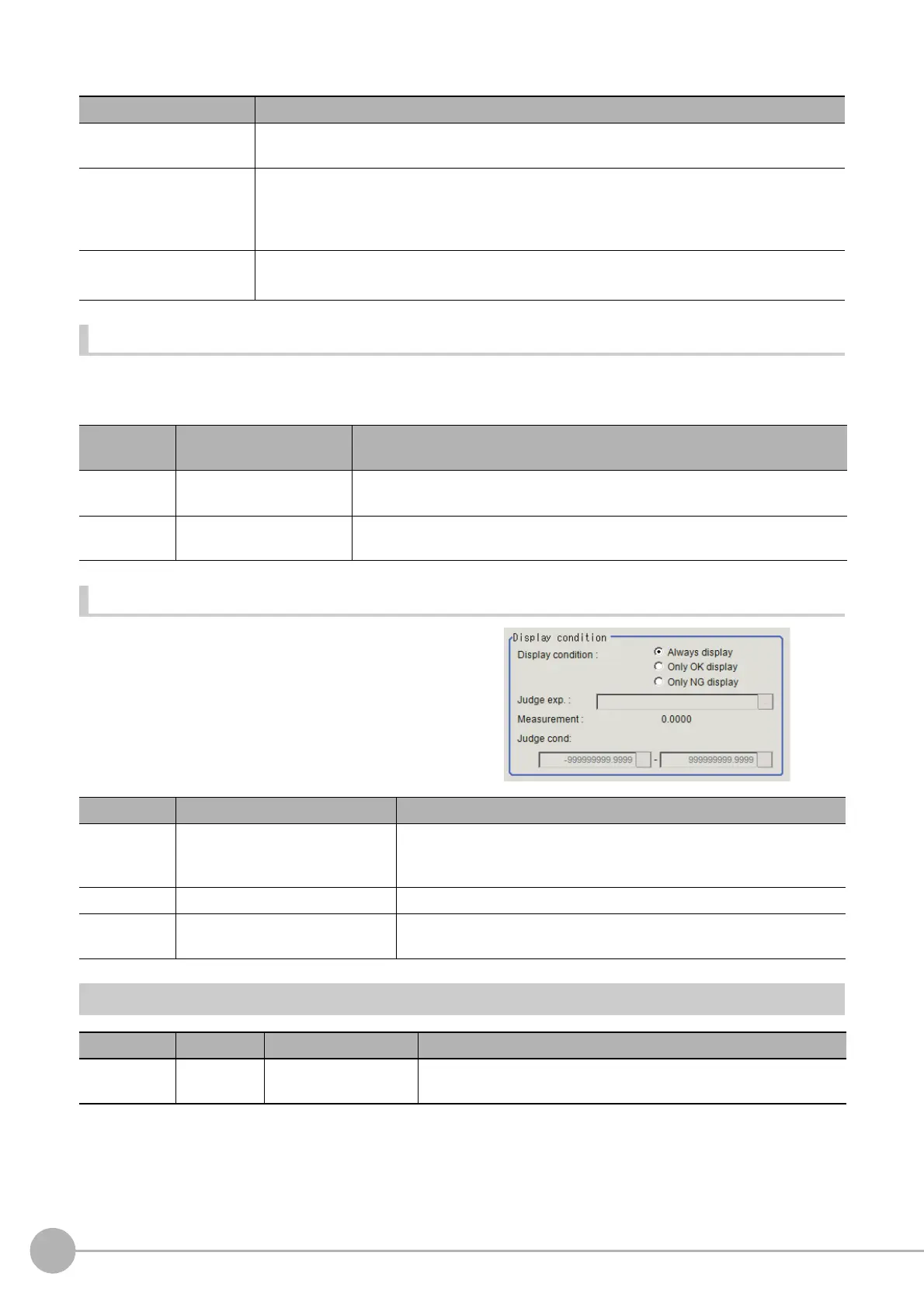

Result Display
880
FH/FZ5 Processing Item Function Reference Manual
Display Unit String
When Display unit graphic is Selected
Specify unit number and image number.
Display unit graphic
Toggling between Show/Hide by judgement
Show/Hide can be toggled by judgement.
External Reference Tables (Result Display)
Setting item Description
Item
Select the processing item name from
amo
ng the scenes being displayed.
Processing items for barcode, 2D code, and charac
ter inspection can be selected.
Set unit string
Select a character string contained in the selected processing item name.
• Character inspection: Reading string, verification string
• Barcode : Reading string, comparison stri
ng, error output character string
• 2D code : Reading string, comparison string,
error output character string
String range specify
Place a check to set the display range of character string.
Specify a number in the range of 1 to 999.
Setting item
Setting value
[Factory default]
Description
processing
item
0
to 9999 [0] Select the processing item name from
among
the scenes being displayed.
Sub number -1 to 99 [0]
Select the sub image number you want to d
isplay for the selected processing
item.
Setting item Setting item Description
Display
condi
tion
• [Always display]
• Only OK display
• Only NG display
Place a check to show the scale.
Judge exp. - Set an expression to determine whether it is OK or NG.
Judge
condition
-999999999.99999 to
999999999.99999
Specify the range where the measureme
n
t result is judged to be OK.
No. Data name Set/Get Data range
0 Judge Get only
0: No judgement (unmeasured)
1: Judgement result OK
