Line Regression
632
FH/FZ5 Processing Item Function Reference Manual

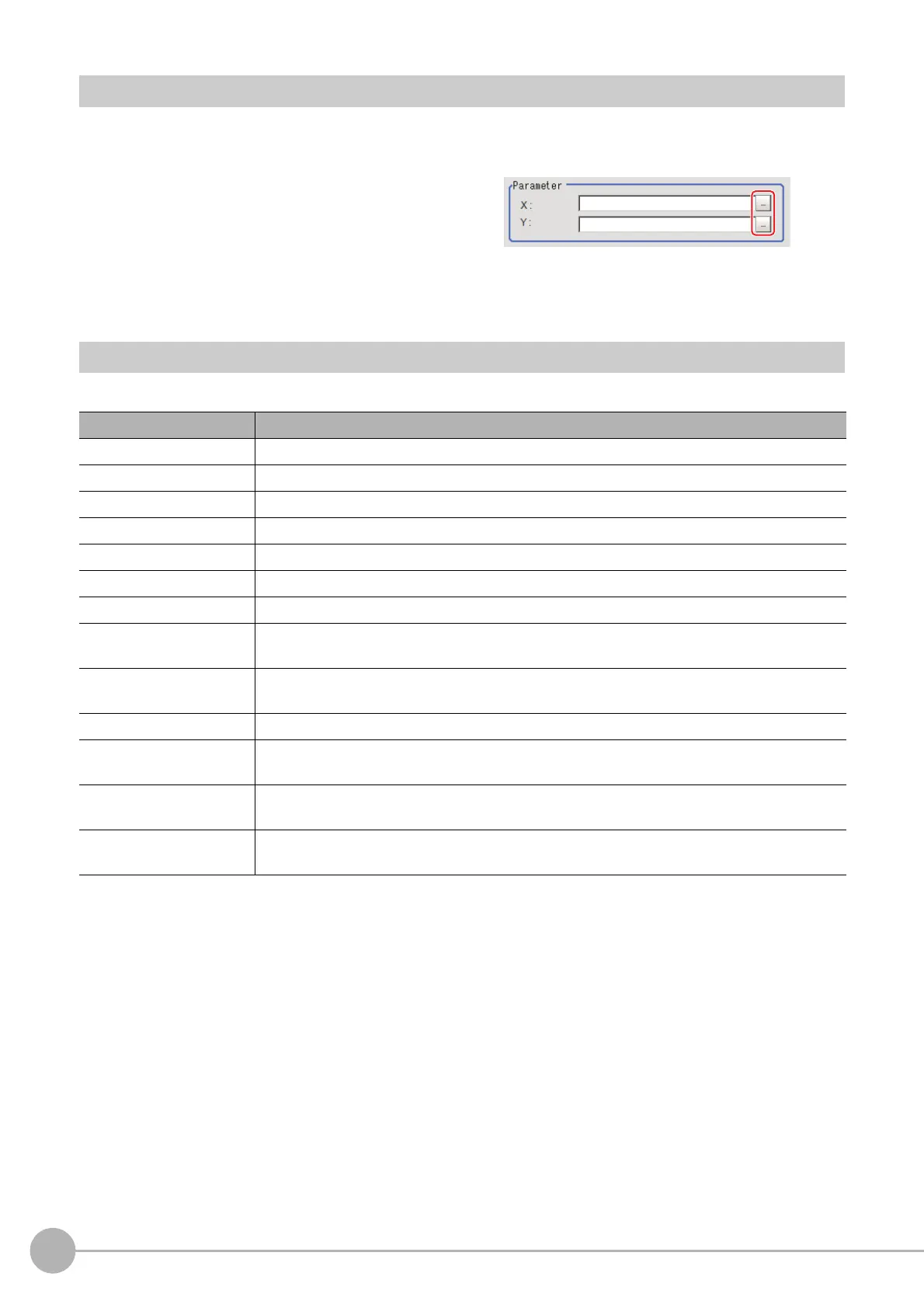

Point (Line Regression)
"Point" is only valid if "Calculate distance between line and point" is selected in "Select function".
1 Click [Point] in the Item Tab area.
2 Click [...] for the expression and set the
expression.
The Setting Expression window is displayed.
3 After setting up the expression, click [OK].
The expression is confirmed.
Key Points for Test Measurement and Adjustment (Line Regression)
The following content can be confirmed in the "Detail result" area using text.
Displayed items Description
Judge Judgement result
Line parameter 0 A Parameter A of line 0
Line parameter 0 B Parameter B of line 0
Line parameter 0 C Parameter C of line 0
Line parameter 1 A Parameter A of line 1 (only displayed when
calculating the intersection of 2 lines)
Line parameter 1 B Parameter B of line 1 (only displayed when ca
lculating the intersection of 2 lines)
Line parameter 1 C Parameter C of line 1 (only displayed when calculating the intersection of two lines)
Cross point X
X coordinate of intersection (only displayed when ca
lculating the intersection of two lines or
calculating the distance between a line and a point)
Cross point Y
Y coordinate of intersection (only displayed when
ca
lculating the intersection of two lines or
calculating the distance between a line and a point)
Angle Angle between two lines (only displayed when calculating the intersection of two lines)
Point X
X coordinate of input point (only displayed whe
n
calculating the distance between a line and a
point)
Point Y
Y coordinate of input point (only displayed whe
n
calculating the distance between a line and a
point)
Distance
Distance between line 0 and an input point (only displayed when calculating the distance
b
etween a line and a point)
