Machine SimulatorFH/FZ5 Processing Item Function Reference Manual
553
3
Compensate image

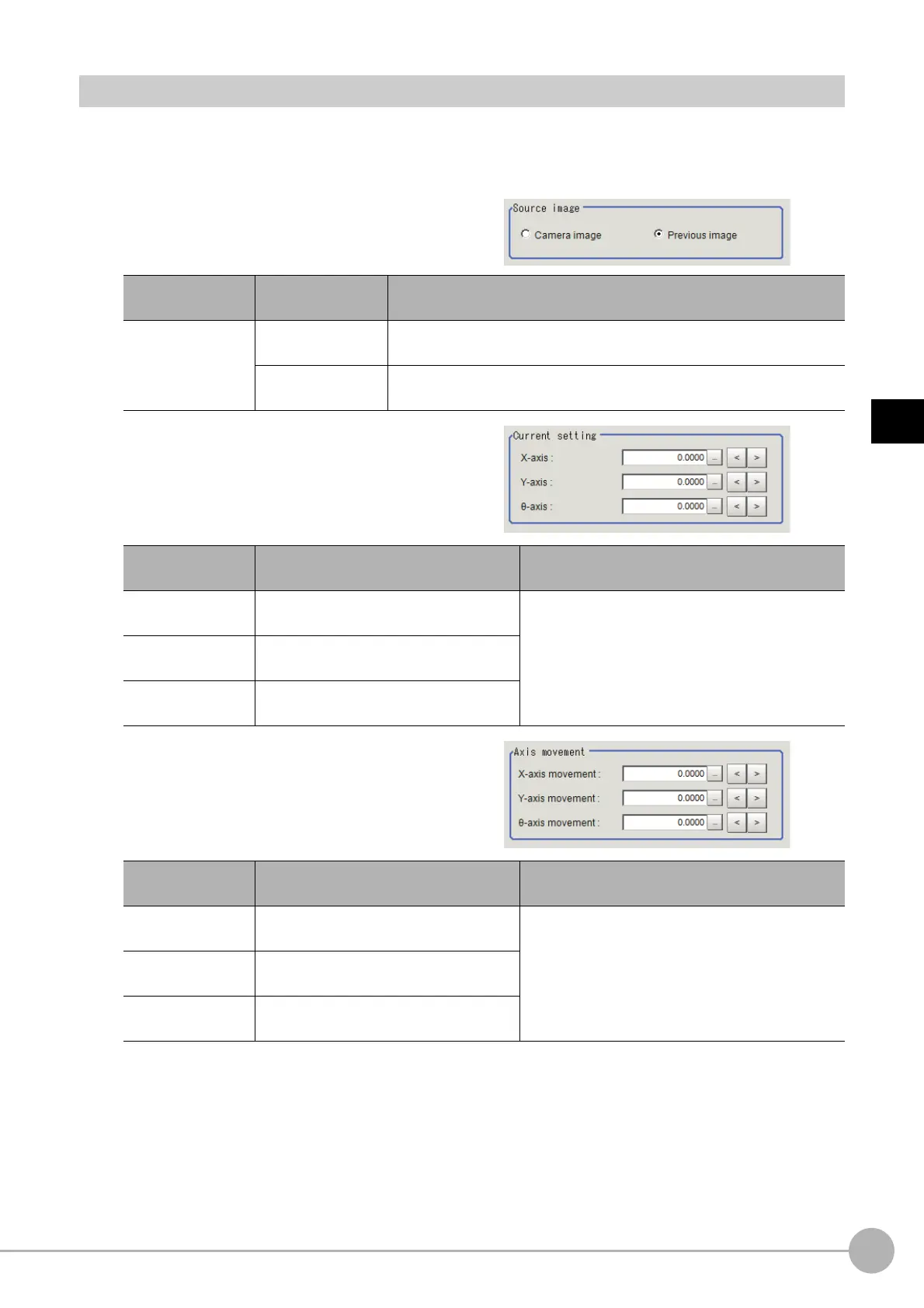

Movement Setting (Machine Simulator)
Set the movement amount of each axis needed to move the image. When simulating a movement from other
than the origin return position, also set the current axis position.
1 In the Item Tab area, click [Movement setting].
2 Select the target image to move in the
Source image area.
3 Set the current position of each axis in
the Current setting area.
The setting items vary depending on the type
of stage or robot.
4 In the "Axis movement" area, set the
movement amount of each axis.
The setting items vary depending on the type
of stage or robot.
Setting item
Setting value
[Factory default]
Description
Source image
Camera image
The unfiltered input image from the camera
directly becomes the target
image to move.
[Previous image]
The image filtered by a processing item
b
efore the "External device
simulator" currently set before this item.
Setting item
Setting value
[Factory default]
Description
X-axis
-99999.9999 to 99999.9999
[0.0000]
Set the current position of each stage/robot axis.Y-axis
-99999.9999 to 99999.9999
[0.0000]
θ-axis
-180.0000 to 180.0000
[0.0000]
Setting item
Setting value
[Factory default]
Description
X-axis movement
-99999.9999 to 99999.9999
[0.0000]
Set the movement amount of each stage/robot axis.Y-axis movement
-99999.9999 to 99999.9999
[0.0000]
θ-axis movement
-360.0000 to 360.0000
[0.0000]
