Model DictionaryFH/FZ5 Processing Item Function Reference Manual
415
2
Inspecting and Measuring
Model Automatic Registration (Model Dictionary)
This method encloses a character string, cuts out one character at a time from it and registers them as models.
When an auto extraction region is set enclosing the character string, the characters are automatically extracted
one at a time. Register each character in the appropriate character index. If 5 models have already been
registered for an index, auto registration cannot be set.

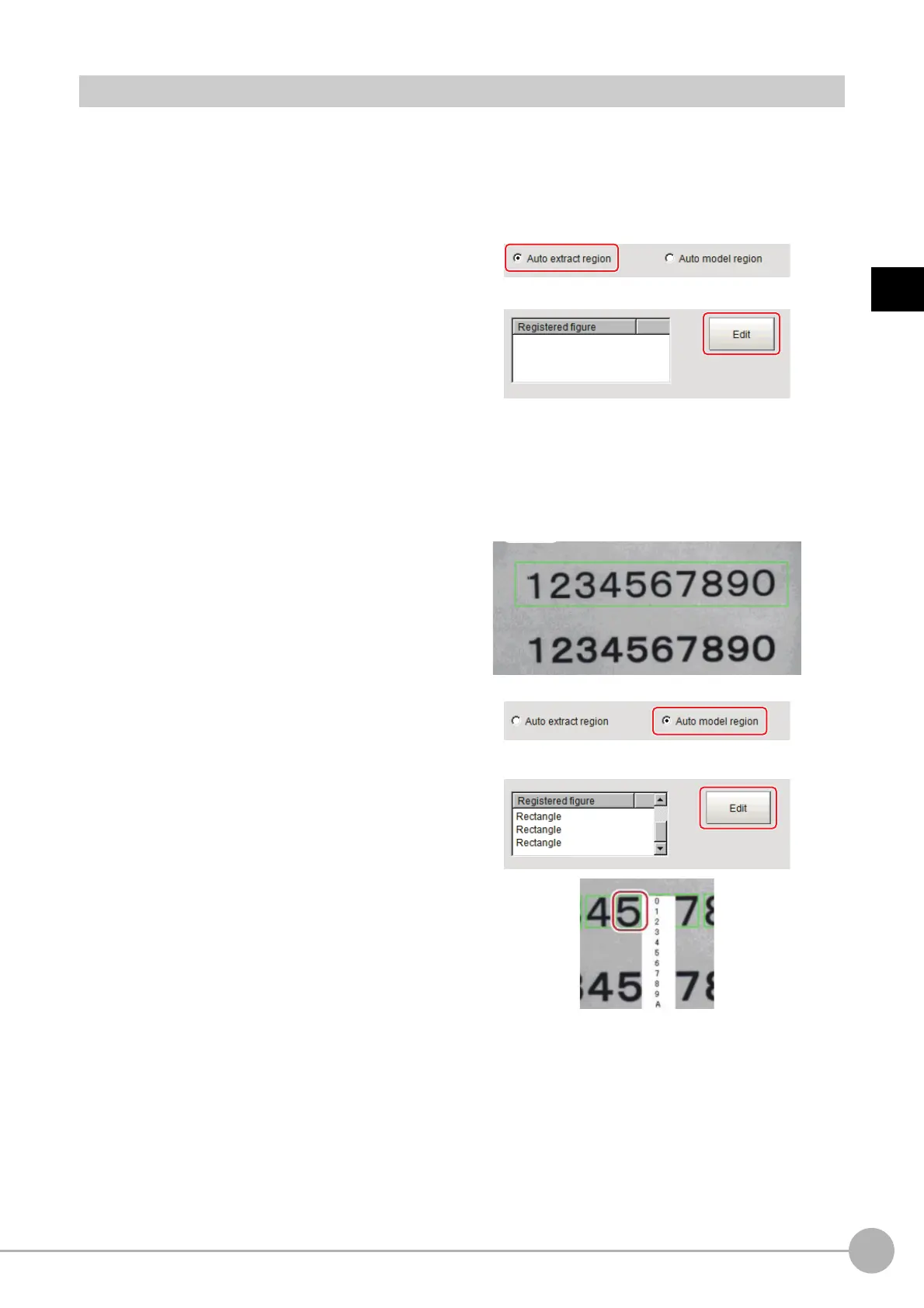

1 In the Item Tab area, click [Auto registration].
2 In the Detail area, select "Auto extract
region".
3 Click [Edit].
4 Specify the range to register as the auto
extract region using the Drawing tools.
5 In the figure setting area, click [OK].
The auto extract region is registered.
6 Click [Extract model].
A model is extracted automatically and the
extracted result (gray frame) is displayed in
the Image Display area.
7 In the Detail area, select "Auto model
region".
8 To adjust an extracted region, click
[Edit].
9 Click the model region in the Image
Display area.
An index list is displayed.
10 Select the index to register to.
11 Click [Register model].
A message which indicates the number of registered models is displayed.
12 Click [OK].
The model is registered.
With the same operation, register the mode
ls for the other extraction regions.
