Trend MonitorFH/FZ5 Processing Item Function Reference Manual
669
4
Support Inspection and Measurement
Data Save (Trend Monitor)
The measurement results recorded in the trend monitor can be saved in a USB memory stick or SD card (for FH
series). Since the data is saved in CSV format, it can be edited on the PC.
The data to be saved includes all the statistical data, the
value and time stamp when NG occurs (up to 36 items)
and the measurement result on the graph (up to 1000 items). Up to 100000 items of measurement results can
be saved in extended format. The format is as follows.

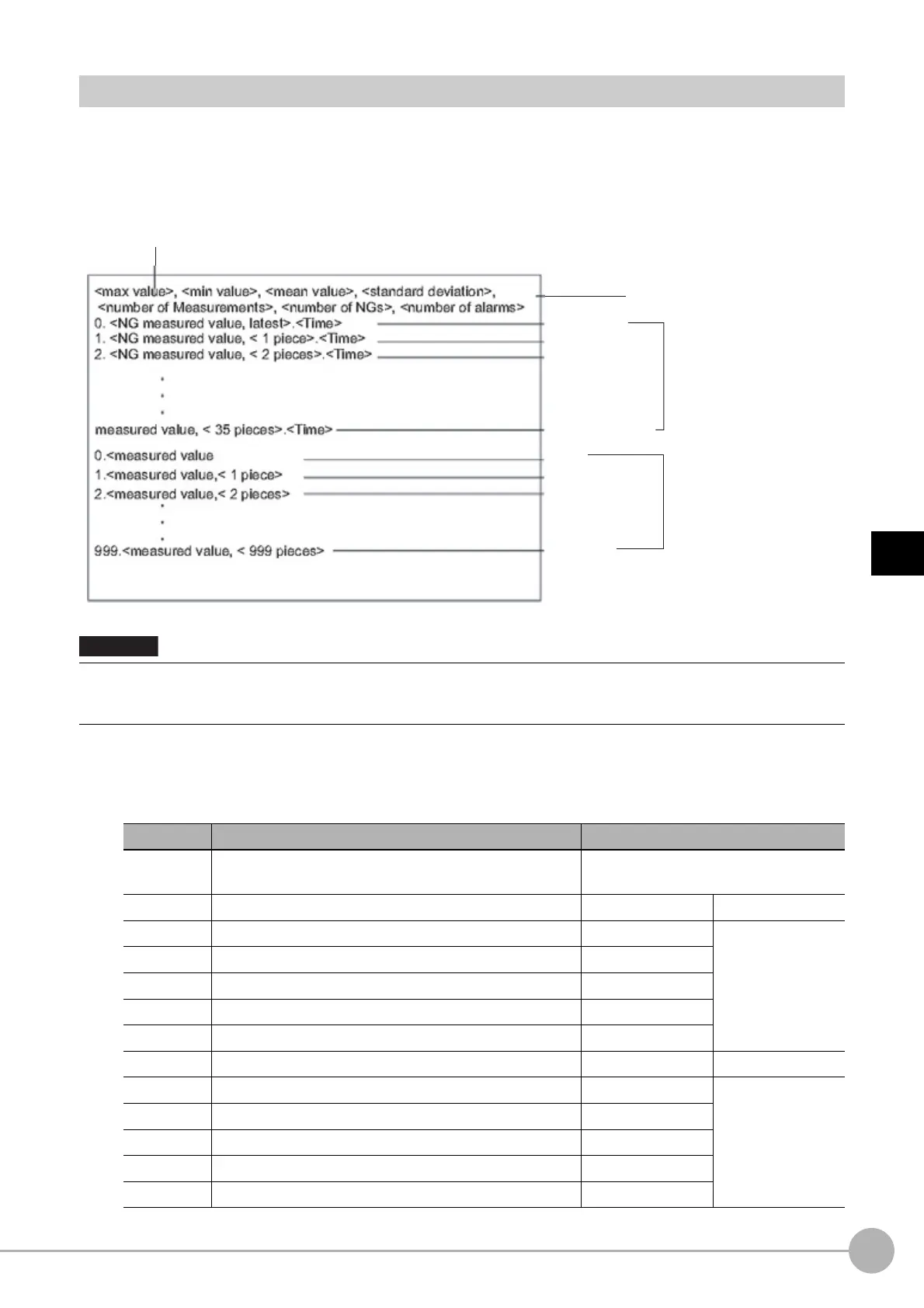

1 In the Item Tab area, click [Data save].
2 Specify format in the "Save setting" area.
Standard format
Insert a USB memory stick or SD memory card before saving data.
For information on the position of the USB connector and SD card memory, refer to the Vision System FH/FZ5 series
Ha
rdware Setup Manual (Cat. No. Z366) or Instruction sheet.
Line Text Description
1
<Maximum>, <Minimum>, <A
ve
rage>, <Deviation>,
<Count>, <NG count>, <Warning count>
Statistical data
2
3 0, <NG measured value, latest>, <Time> Last NG
Measurement
result
s when
NG
occurs
(Max: 36 items)
4 1, <Last 1 NG measurement>, <Time> Last 1 NG
5 2, <Last 2 NG measurement>, <Time> Last 2 NG
: : :
38 35, <Last 35 NG measurement>, <Time> Last 35 NG
39
40 0, <measured value, latest> Last
Measurement result
(Max: 1000 items)
41 1, <Last 1 measurement> Last 1
42 2, <Last 2 measurement> Last 2
: : :
1039 999, <Last 999 measurement> Last 999
Statistical data
Data is partitioned using commas.
Measurement
results during
NG errors
Graph
measurement
results
Latest NG error
1 NG error previous
2 NG errors previous
Latest
1 previous
2 previous
35 NG errors previous
999 previous
