Get Unit Data
652
FH/FZ5 Processing Item Function Reference Manual
Get Unit Data
Used in the Following Case
• When you want to acquire processing unit data while measuring
Parameter Settings (Get Unit Data)

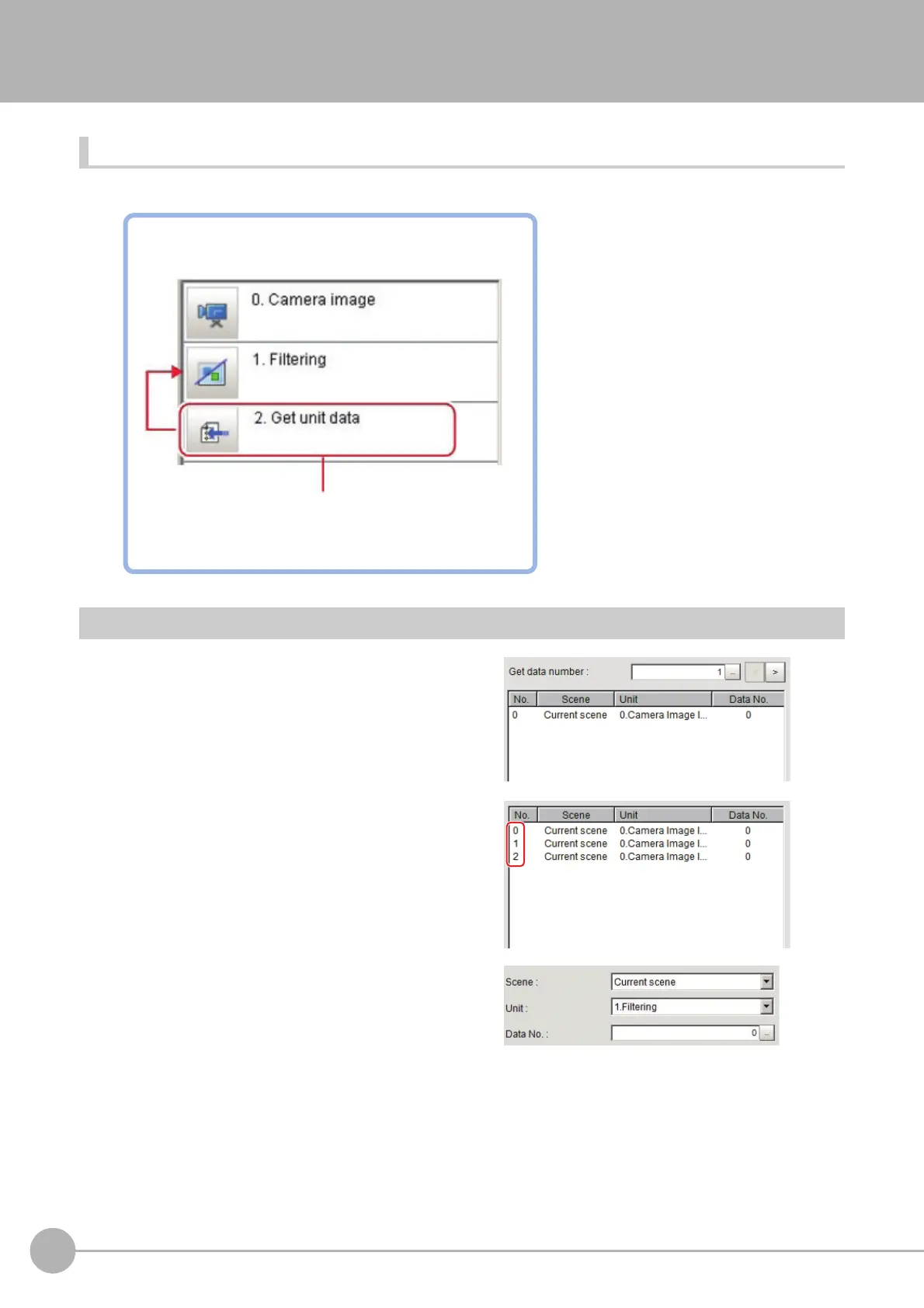

1 In the "Data setting" area, click the "Get
data number" [...] or [>] to set the
number of target data.
The data number, data name, and data range
that can be used in the target units are
displayed on the right side.
2 From the list, click the "No." of the data
for which you are setting the acquisition
target.
The No. selected will be displayed below the
list.
3 Click [ ] for "Scene" and specify the
scene number of the desired processing
unit.
For more details, refer to External Reference
Tables for each processing item.
4 Click [ ] for "Unit" and specify the desired unit.
5 Click [...] for "Data No." and specify the desired data No.
The designated data No. will be different depending on the processing item.
For more details, refer to External Reference Tables for each processing item.
Example) Acquire the background removing level of ProcItem
prior to measurement
Object Unit: [Filtering]
Acquired data: “129” (lower limit of the background
removing level)
