FH/FZ5 Processing Item Function Reference Manual

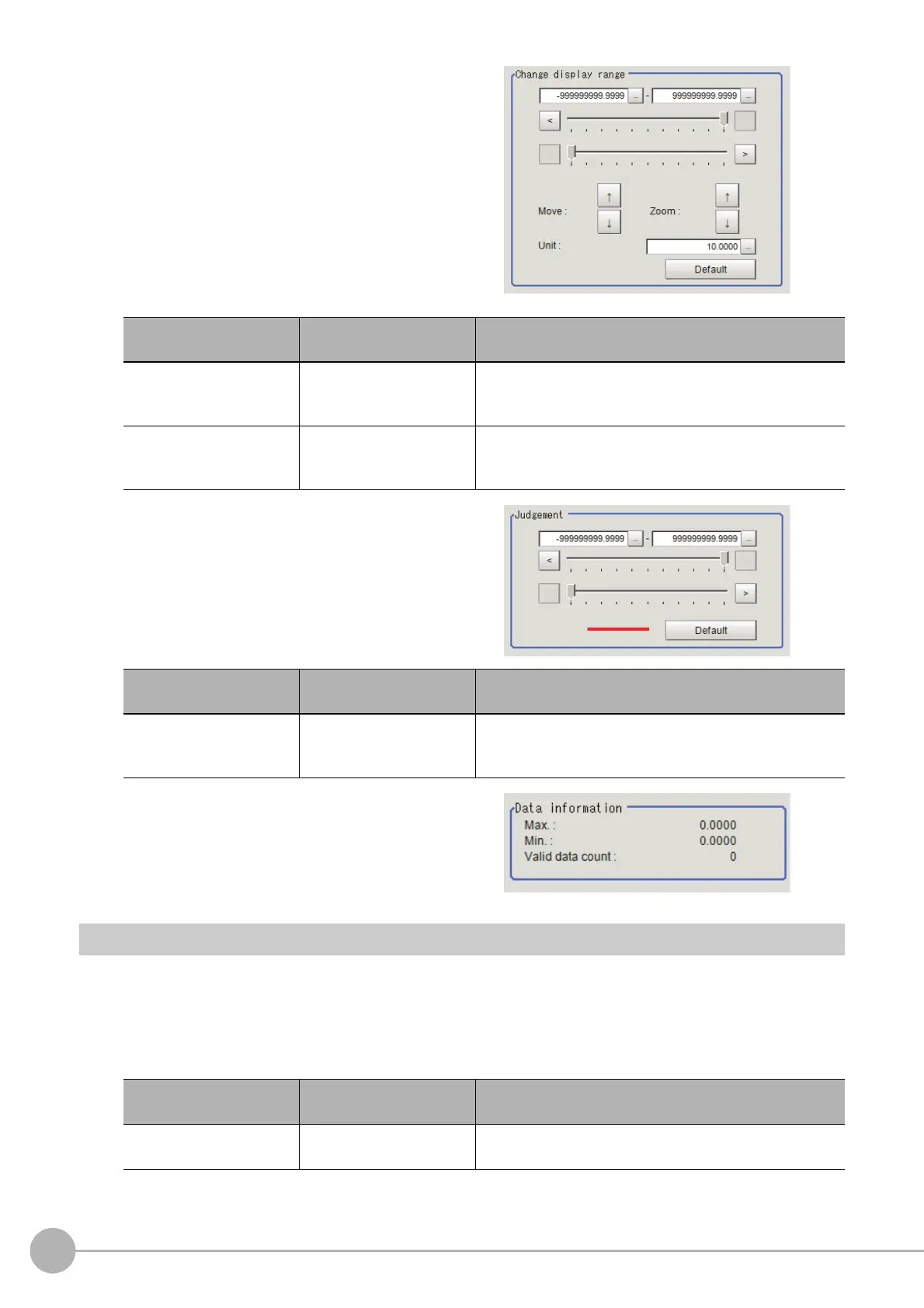

3 In the "Change display range" area, set
the upper and lower limit values of graph
display range.
If the window is entered after measurement is
performed a few times and [Default] is clicked,
a display range suitable for these
measurement values is automatically set.
4 In the "Judgement" area, set the upper
and lower limit values of set data
judgement range.
If the window is entered after measurement is
performed a few times and [Default] is clicked,
a judgement range suitable for these
measurement values is automatically set.
5 The value reflecting the setting changes
appears in the "Data information" area.
Output Parameters (Statistics)
Select how to treat the coordinates to be output to the external device as measurement results. This item can be
changed if necessary. Normally, the factory default value will be used.
1 Click [Output parameter] in the Item Tab area.
2 Select the "Reflect to overall judgement".
Setting item
Setting value
[Factory default]
Description
Upper and lower limit
values
of the graph display
range
-999999999.9999 to
999999999.9999
Set the upper and lower limit values of the display range of
th
e graph
corresponding to the data number.
Unit
1.0000 to
1000000.0000
[10.0000]
Set how much the value will change when the Move or
Zoom
arrow button is clicked.
Setting item
Setting value
[Factory default]
Description
Upper and lower limit
values of the ju
dgement
range
-999999999.9999 to
999999999.9999
Set the upper and lower limit va
lue
s of the judgement
range corresponding to the data number.
Setting item
Setting value
[Factory default]
Description
Reflect to overall
judgemen
t
•[ON]
•OFF
Specify whether or not the judgement results of this
processing unit is reflected in the scene overall judgement.
