Scan Edge Position

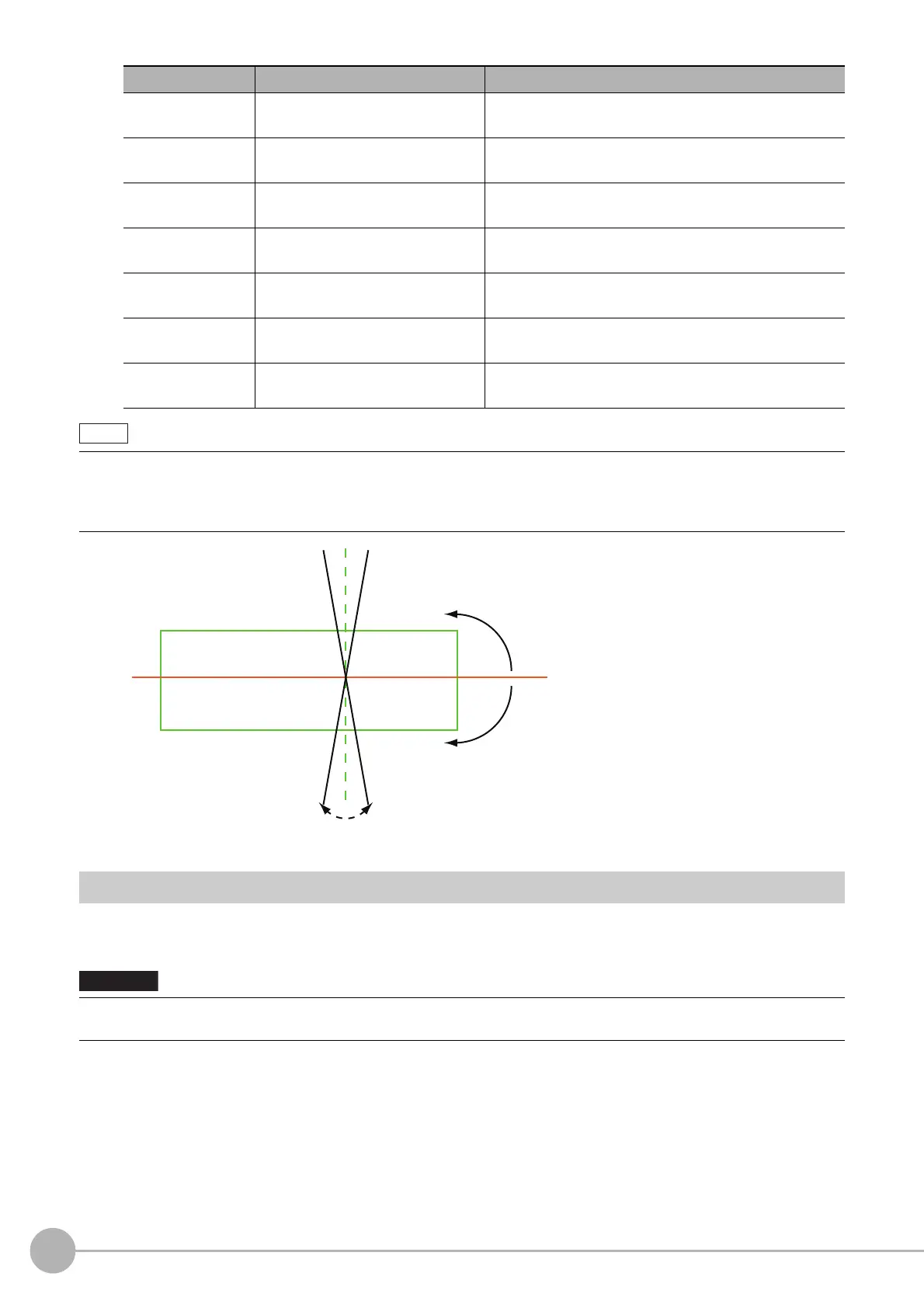

252
FH/FZ5 Processing Item Function Reference Manual
Output Parameters (Scan Edge Position)
Specify how to treat the coordinates to be output to the external device as measurement results. This item can
be changed if necessary. Normally, the factory default value will be used.
1 Click [Output parameter] in the Item Tab area.
Long distance Max. 0 to 99999.9999
Specify the upper and lower limits of the long distance
maximum judged to be OK.
Lo
ng distance Min. 0 to 99999.9999
Specify the upper and lower limits of the long distance
mini
mu
m judged to be OK.
Short distance Max. 0 to 99999.9999
Specify the upper and lower limits of the short distance
maximum jud
ged to be OK.
Short distance Min. 0 to 99999.9999
Specify the upper and lower limits of the short distance
mini
mum judged to be OK.
Deviation 0 to 99999.9999
Specify the upper and lower limits of the deviation judged
to be O
K
.
Line angle -180 to 180
Specify the upper and lower limits of the line angle judged
to be O
K.
Lost point count 0 to 100
Specify the upper and lower limits of the lost point count
ju
dged to be OK.
• Judgement condition of the straight line's inclination
To set 90° ±10° (80° to 90°, -80° to -90°
) range as OK, set the judgement condition to 80° to 100°.
The range of straight line's inclination is -89.999° to 90°
Internally, the angle X of -90° to 0° is the same value as X +
180°, the angle X of 90 to 180° is the same value as X - 180°.
• After setting up the measurement parameters, changing the output pa
rameters will cause measurement results to vary
accordingly. If the output parameters have been changed, re-specify the measurement, too.
Setting item Set value Description
Note
180° 0°
Inspection area
Upper limit value 100°
Straight line’s inclination 90°
OK range ±10°
Lower limit value 80°
- direction
+ direction
Important
