Camera Image InputFH/FZ5 Processing Item Function Reference Manual
39
1
Input image
Calibration (Camera Image Input)
By setting the calibration, the measurement result can be converted and output as actual dimensions. The
calibration method is selected here.
There are three calibration methods, point, sampling, and parameter.
• Reference: Specifying Points and Setting (Point Specification) (p.39)
• Reference: Setting Calibration through Sampling Measurement (Samp
ling) (p.40)
• Reference: Inputting and Setting Values (Value Setting) (p.42)
• Reference: View Calibration Parameters (p.43)

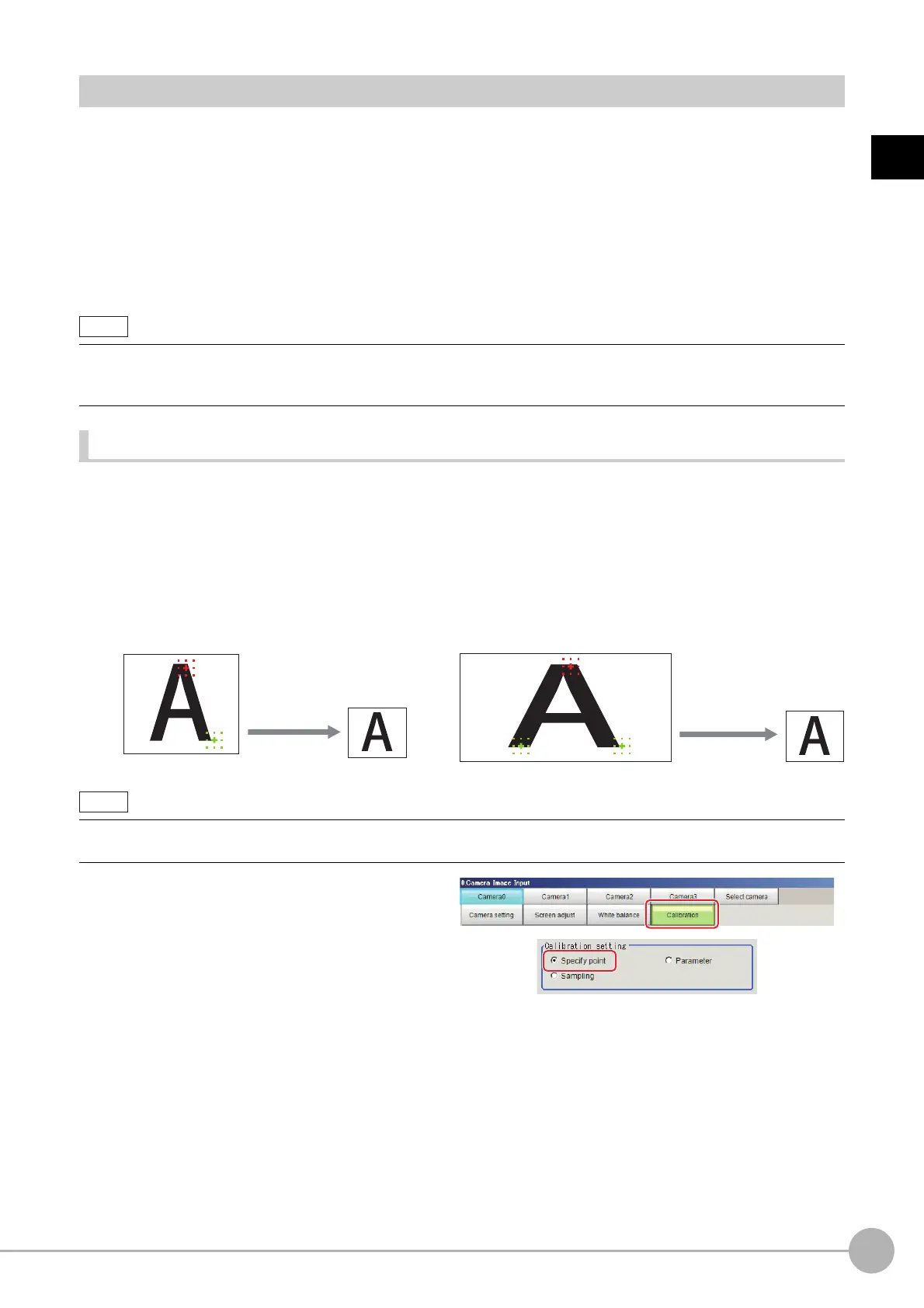

Specifying Points and Setting (Point Specification)
This is a method for performing calibration by specifying arbitrary points (in pixels).
Calibration parameters are calculated automatically when actual
coordinates of specified locations are entered.
Up to 3 points can be specified.
1 In the Item Tab area, click [Calibration].
2 In the "Calibration setting" area, select
"Specify point".
3 Click the first point on the screen.
• In order to output measurement results in actual dimensions, set [Calibration] to "ON" in [Output parameter] for each
processing unit. If [Calibration] is "OFF" (factory default), measurement results are output as camera image coordinate
values.
• When magnification is the same in
the X and Y directions
Specify only 2 points.
• When magnification is not the same in the X and
Y directions
Specify 3 points.
• When 2 points are specified, the coordinate system is set to the left-hand system (forward in the clockwise direction).
Specify 3 points to perform calibration including the coordinate system.
Calibration
X : Y = 1 : 1
X : Y = 1 :
X : Y = 1:
X : Y = 5 : 3
Calibration
To Next Page
