Model DictionaryFH/FZ5 Processing Item Function Reference Manual
411
2
Inspecting and Measuring
Model Dictionary
Register a model to use for [Character Inspection].
Model data registered in the [Model Dictionary] can be referred to fr
om multiple [Character Inspection] items in
the same scene.
Used in the Following Case
• To create the dictionary to be used for Character Inspection and Date Verification

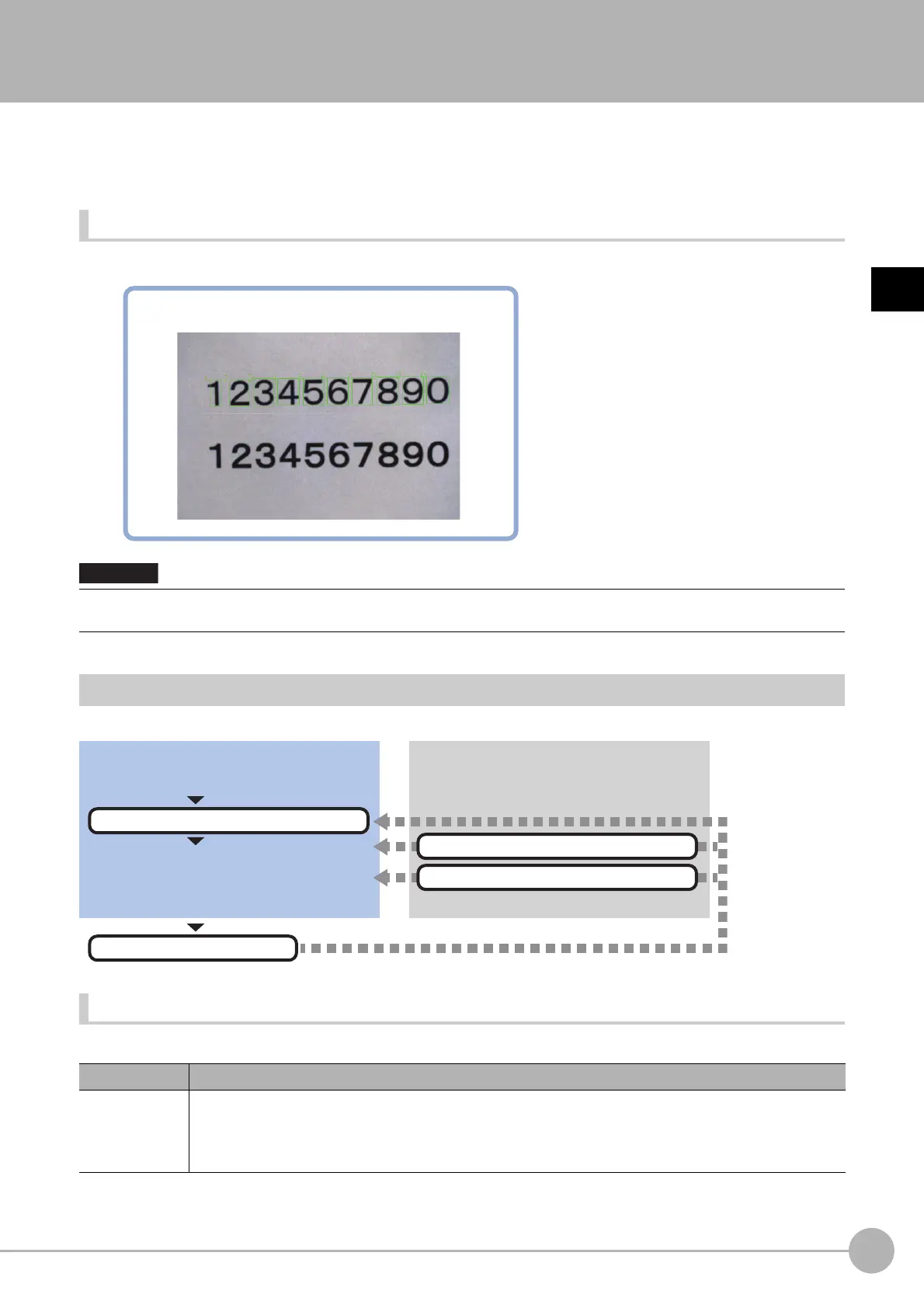

Settings Flow (Model Dictionary)
Follow the steps below to set up [Model Dictionary].
List of Model Dictionary Items
Model Dictionary items are explained below.
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.
Item name Description
Model
Register the characters and marks as the model.
Model parameter values can be changed as needed to address unstable measurement results or to
increase the processing speed. Normally, the factory default value will be used.
Reference: Model Registration (Model Dictionary) (p.412)
Example) Inspecting printed characters
Important
Necessary Steps Optional Steps
Result verification/adjustment
▲
Model Registration (Model Dictionary)
Start
Settings completed
Test measurement
▲
Model Automatic Registration (Model Dictionary)
▲
Measurement Parameters (Model Dictionary)
