ClassificationFH/FZ5 Processing Item Function Reference Manual
219
2
Inspecting and Measuring

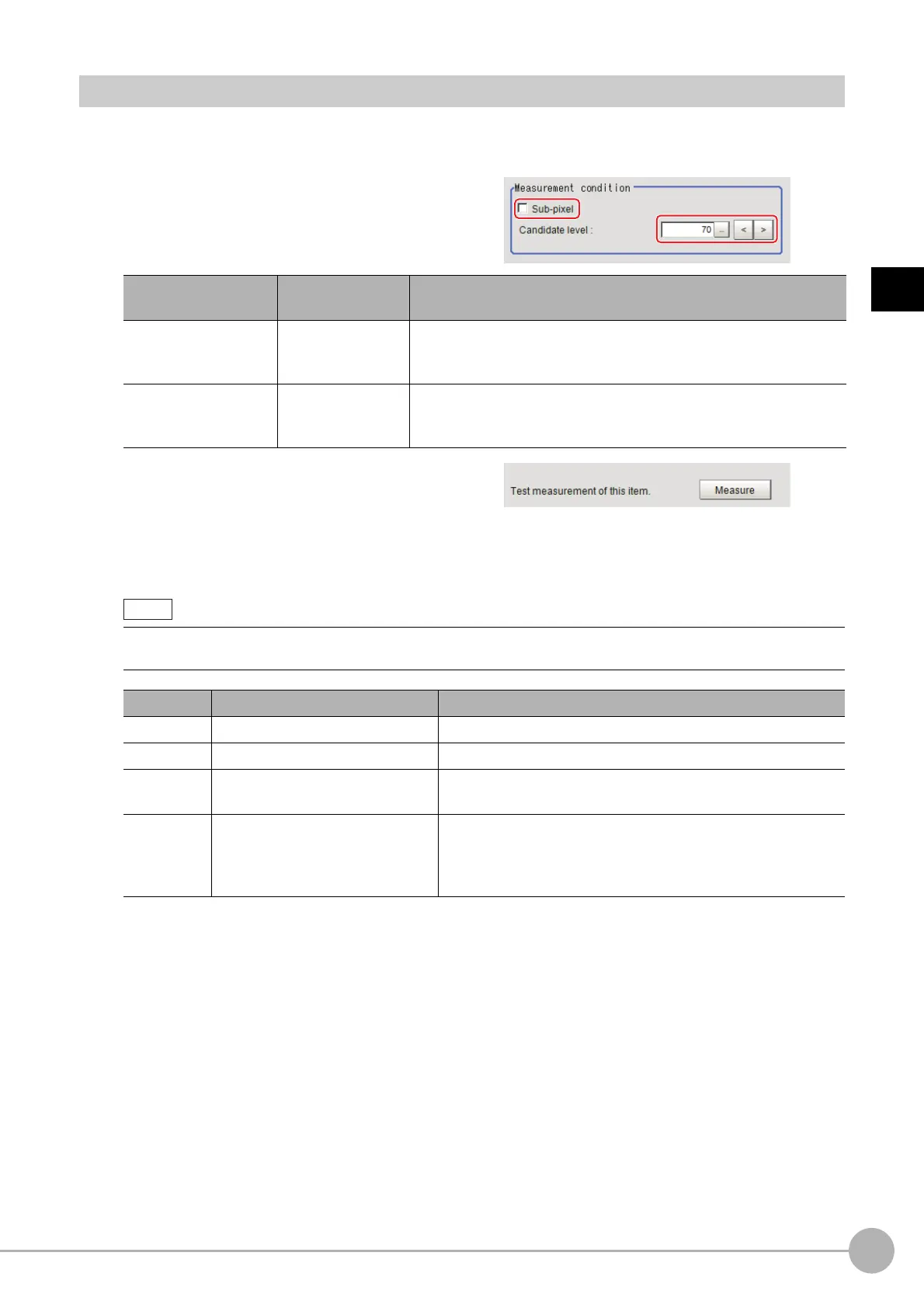

Measurement Parameters (Classification)
Specify the search measurement conditions and the judgement conditions for the measurement results.
1 In the Item Tab area, click [Measurement].
2 In the "Measurement condition" area,
specify a value for each item.
3 When the setting has been changed,
click [Measure] in the "Detail" area to
verify whether measurements can be
made correctly.
4 Set up the judgement condition.
Setting item
Set value
[Factory default]
Description
Sub-pixel
• Checked
• [Unchecked]
When a check is placed at sub-pixel, the position
information can be
measured in units of sub-pixels. However, this requires more
processing time.
Candidate level
0 to 100
[70]
Specify the threshold value with which
to detect candidate points in a
rough search. Specify a smaller value when model search results are
unreliable.
• The values beside each item are measurement results of th
e
displayed image. Take these values into
consideration to determine the upper and lower limit values.
Setting item Set value Description
Position X -99999.9999 to 99999.9999 Specify the range of X-axis shifting that is judged to be OK.
Position Y -99999.9999 to 99999.9999 Specify the range of Y-axis shifting that is judged to be OK.
Search
angle
-180
to 180 Specify the range of angles that are judged to be OK.
Correlation 0 to 100
Specify the range of correlation values that are judged to be OK.
Howe
ver
, when the correlation value of the measurement result
is 0, the judgement result will be NG regardless of the lower limit
setting.
Note
