Control Flow FieldbusFH/FZ5 Processing Item Function Reference Manual
859
5
Branch
3 In the “Timeout” area, specify a value for each item.

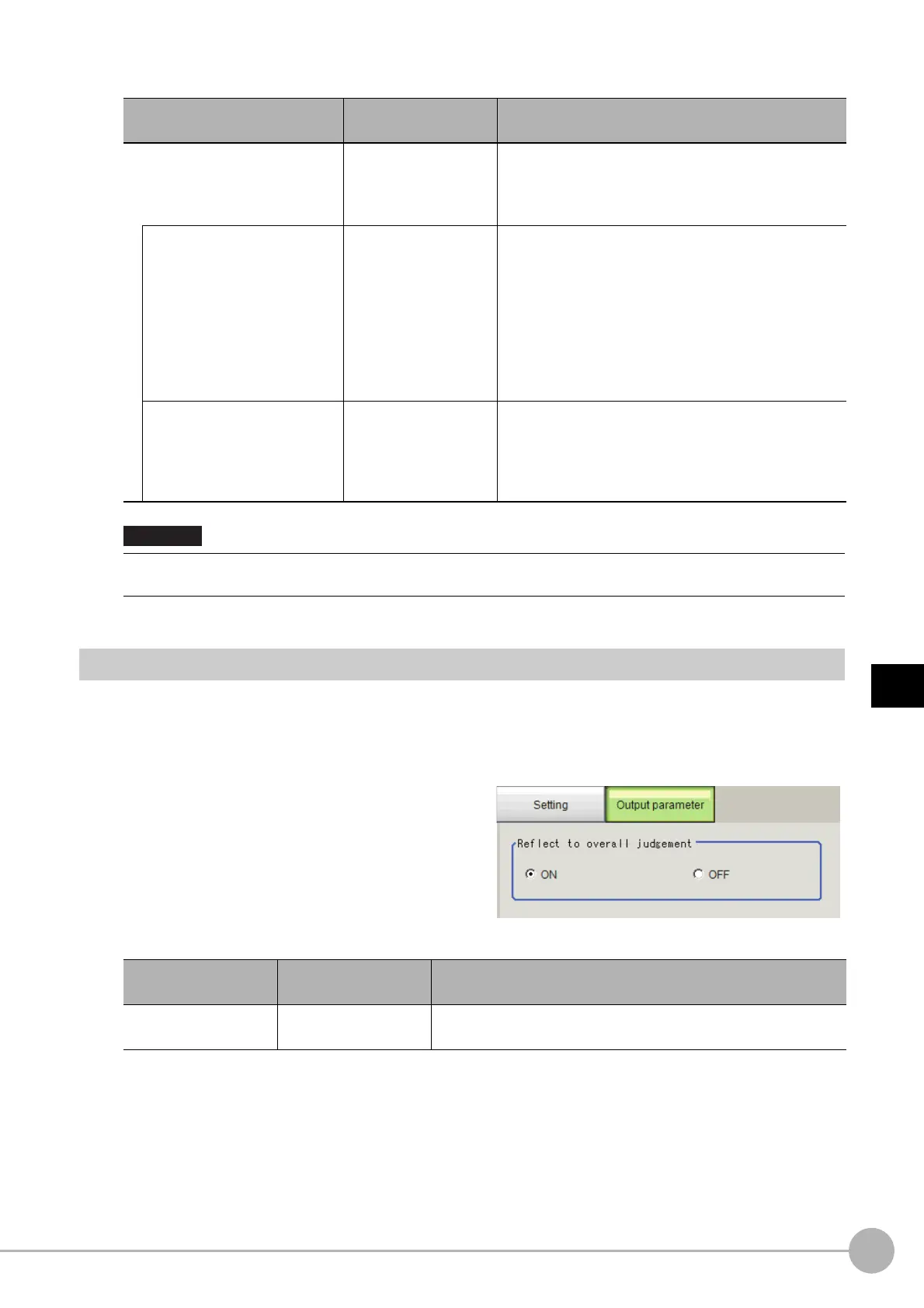

Output Parameters (Control Flow Fieldbus)
You can set this item to change the output parameters.
The output parameters are the conditions and parameters
for outputting measurement results to other
processing units or external devices. Normally, the factory default values can be used.
1 Click [Output parameter] in the Item Tab area.
2 Specify a value for each item.
Setting item
Setting value
[Factory default]
Description
Use timeout
• [Checked]
• Unchecked
If you want to clear the measurement flow wait state
af
te
r a certain period of time elapses, select the “Use
timeout” check box. This should normally be used with
the check box selected.
Setting time
0 to 120,000
[5,000]
This item can be set when the
[Use timeout] c
heck box
is selected.
Set the time in ms after which the wait state on the
proce
s
sing unit is cleared.
When a timeout is used, the wa
it st
ate is cleared when
the time set in “Setting time” elapses after the
measurement unit starts measurement processing.
When the wait state is cleared, the measurement flow
resumes.
Unit judgement in timeout
•[NG]
•OK
This item can be set when the
[Use timeout] c
heck box
is selected.
Select whether the judgement result of the processing
uni
t is NG or OK whe
n the processing unit times out
after the “Setting time” in measurement processing.
• Normally the “Use timeout” check box should be selected. Wh
en the check mark is removed from “Use timeout”,
the wait state can only be cleared by executing a “Wait state clear command” from an external device.
Setting item
Setting value
[Factory default]
Description
Reflect to the overall
judgement
• [ON]
•OFF
Set whether the judgement result from this processing unit is
applied to the overall scene judgement.
Important
