Machine Simulator
552
FH/FZ5 Processing Item Function Reference Manual
Actual Setting (Machine Simulator)
Use the procedure below to set actual-coordinate conditions (origin position, magnification, axis angle) in
camera coordinates. Set the conditions for the coordinate system of the stage or robot used. Camera
coordinates are the coordinates of the image captured by the camera, as measured in pixels. The camera-
coordinate origin is at camera top-left. The X-axis is the horizontal axis. X-coordinate values increase from left to
right. The Y-axis is the vertical axis. Y-coordinate values increase from top to bottom.
1 In the Item Tab area, click [Actual setting].

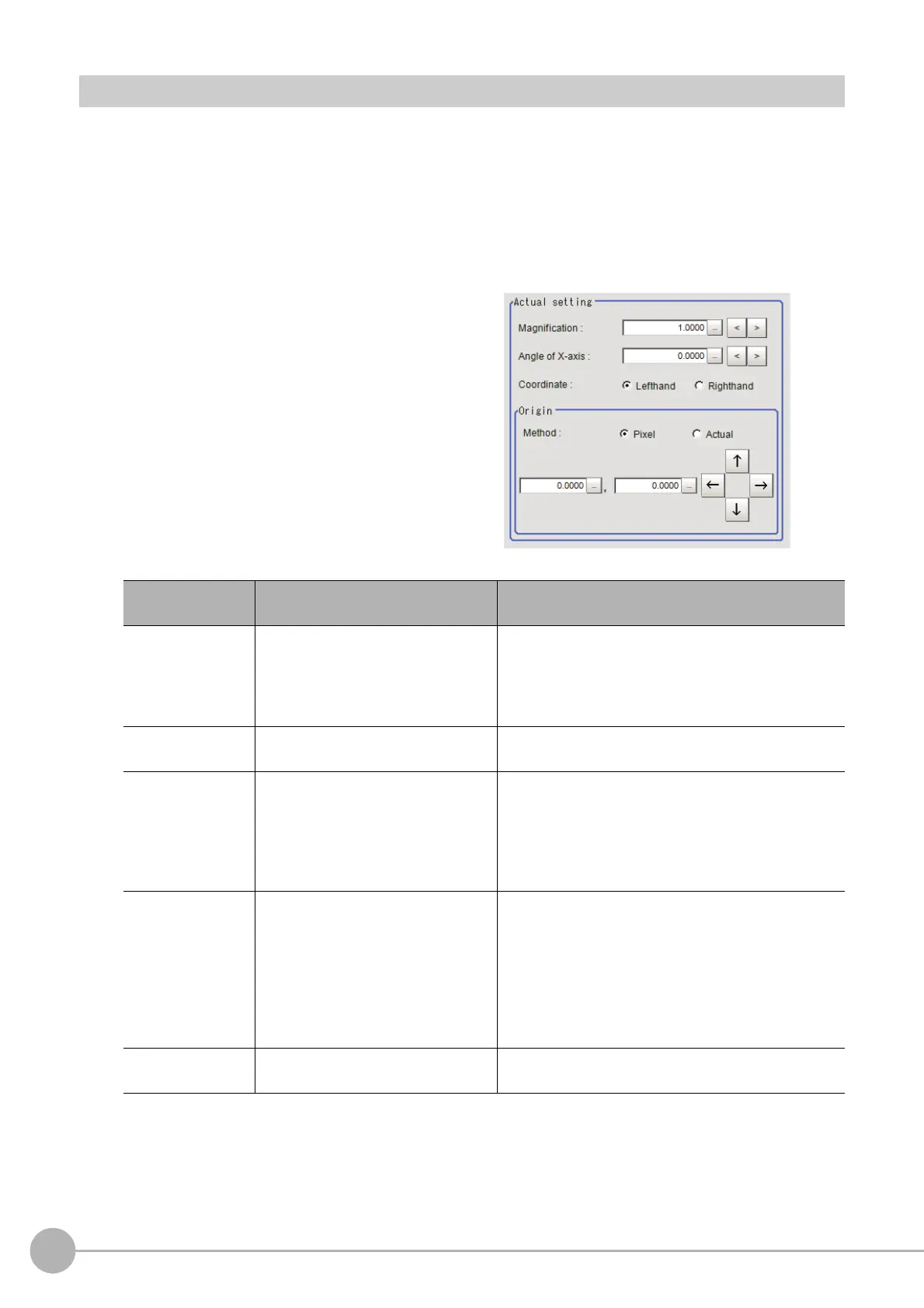

2 In the Actual setting area, set the
conditions for the actual coordinate
system.
When the setting is changed, the correction
result is displayed in the image display area.
Setting item
Setting value
[Factory default]
Description
Magnification
0.0001 to 9.9999
[1.0000]
Specify the ratio of 1 pixel to the ac
tual dimensions. For
example, if 1 pixel in the camera coordinates
corresponds to an actual dimension of 1 mm, set 1.
If 1 pixel in the camera coordinates corresponds to an
actual
dimension of 0.1 mm, set 0.1.
Angle of X-axis
-180.0000 to 180.0000
[0.0000]
If the movement amount of each axis is 0, set the X axis
angle in the actual
coordinate system of
the camera.
Coordinate
• [Lefthand]
• Righthand
Select the coordinate system to be used.
Lefthand:
Clockwise is forward when specifying the angles.
Righthand:
Counter-clockwise is forward when
specifying the
angles.
Method
•[Pixel]
• Actual
Set the specification method for specifying the position
of the
cen
ter (origin) of the stage returned to the origin
position.
Pixel: Sets the pixel value for the origin in the camera
coordi
nate system.
Actual: Sets the value for the actual coordinates and
not
the
pixel value for the origin on the camera
image.
X
Y
-99999.9999 to 99999.9999
[0.0000]
Set the coordinates for the method selected in
[M
ethod].
To Next Page
