Edge PositionFH/FZ5 Processing Item Function Reference Manual
229
2
Inspecting and Measuring

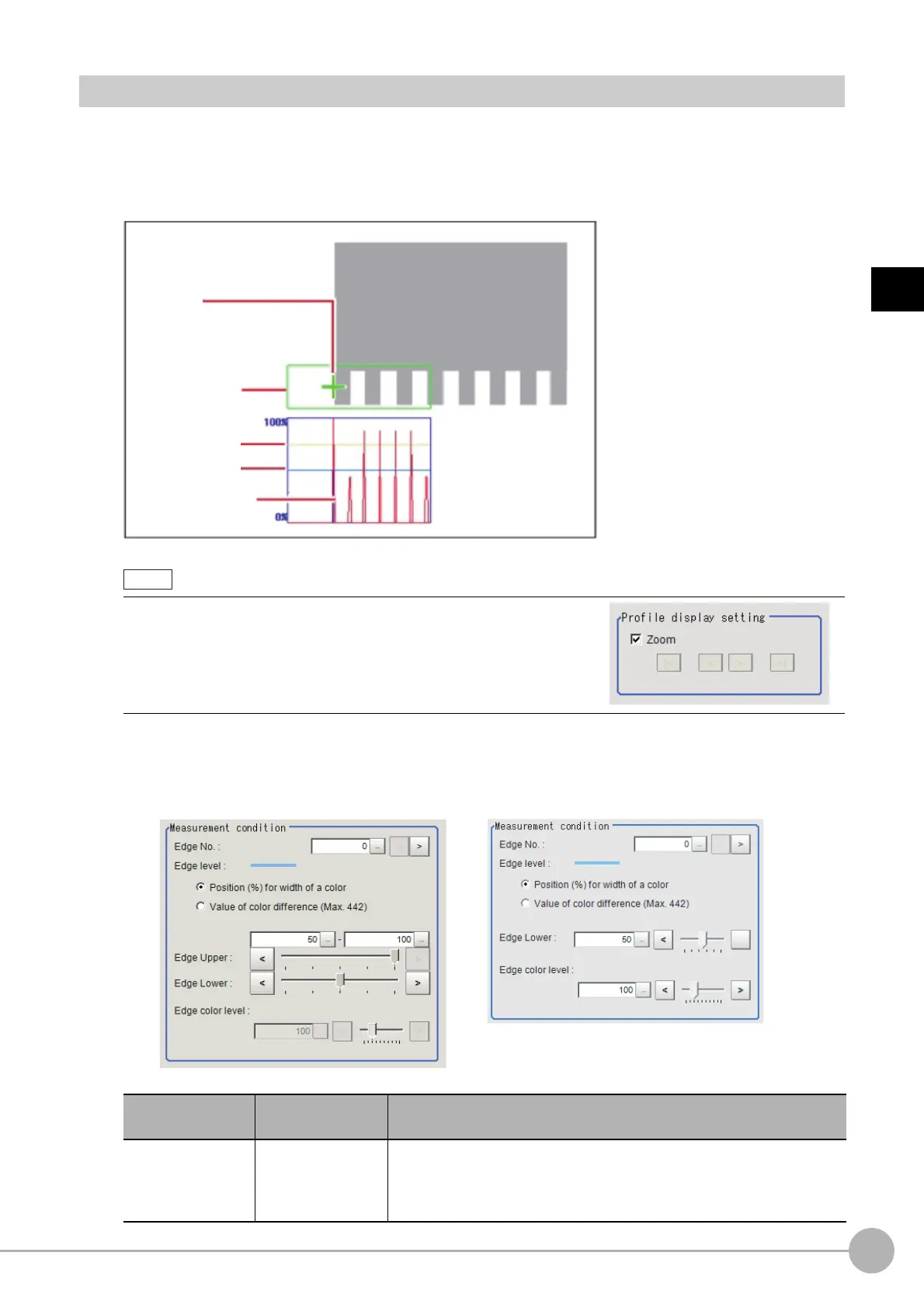

Measurement Parameters (Edge Positions)
This item specifies the judgement condition for measurement results. Measurement parameter can be changed
as needed to address unstable measurement results.
1 In the Item Tab area, click [Measurement].
The edge profile of the measurement region is displayed as a graph in the Image Display area.
2 If necessary, specify a value for each item in the "Measurement condition" area.
For color cameras:
• When the region is a circumference or arc, you can display the graph
enlarged in the vertical direction. Place a check at "Zoom" and click the
button to adjust.
Edge Color Not Specified Edge Color Specified
Setting item
Set value
[Factory default]
Description
Edge No.
0 to 99
[0]
Specify the edge number used to extract edges.
Edge numbers are assigned to detected edges starting from 0 and going
on in the di
re
ction from the start point (the arrow point) to the end point
(the direction of arrow) in the selected area.
Detected
edge
Measurement
region
Noise level
(yellow)
Edge level
(blue)
Color difference
distribution
To Next Page
