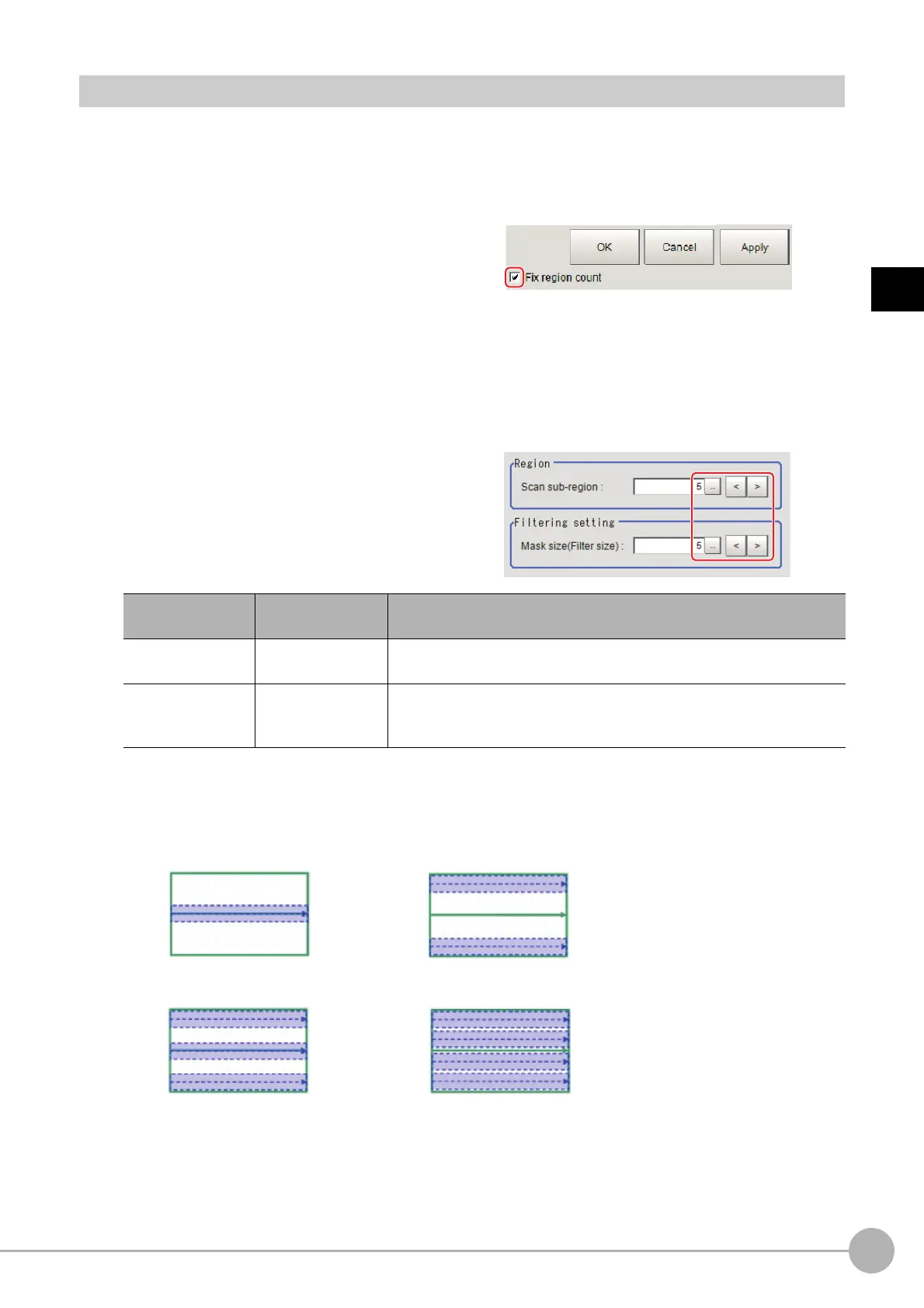

Scan Edge PositionFH/FZ5 Processing Item Function Reference Manual
245
2
Inspecting and Measuring
Region Setting (Scan Edge Position)
This item is used to set up the measurement area.
Specify the measurement region for [Scan Edge Pos
ition] by using wide straight lines.
1 In the Item Tab area, click [Region setting].
2 Use the Drawing tools to specify the measurement region.
To align with the measurement area and
change the number of measurement points,
uncheck this. If the width of the measurement
region is changed with the checkbox
unchecked, the number of measurement points in Scan-sub-region is changed to minimize the amount of
change of the scanned region interval.
3 Click [OK] in the Figure setting area.
• [OK]: Changes the settings and returns to the previous menu.
• [Cancel]: Changes are discarded. R
eturns to the previous menu.
• [Apply]: Updates the settings without leaving edit window.
4 Set the measurement point and the filter
size for the region.
5 The region is divided equally.
Setting item
Set value
[Factory default]
Description
Scan sub-region
1 to 100
[5]
Set the measurement point for the region.
Mask size
0 to 200
[5]
Set the filter size when smoothing the measurement point vicinity. When 5
i
s
set, smoothing is processed for a total of 11 points: the measurement
point and the 5 pixels before and after it.
The scan region, when the number
of measurement points is 3
The scan region, when the number
of measurement points is 4
Division of Scan Area
The scan region, when the number
of measurement points is 1
The scan region, when the number
of measurement points is 2
