Circular Scan Edge Width
286
FH/FZ5 Processing Item Function Reference Manual

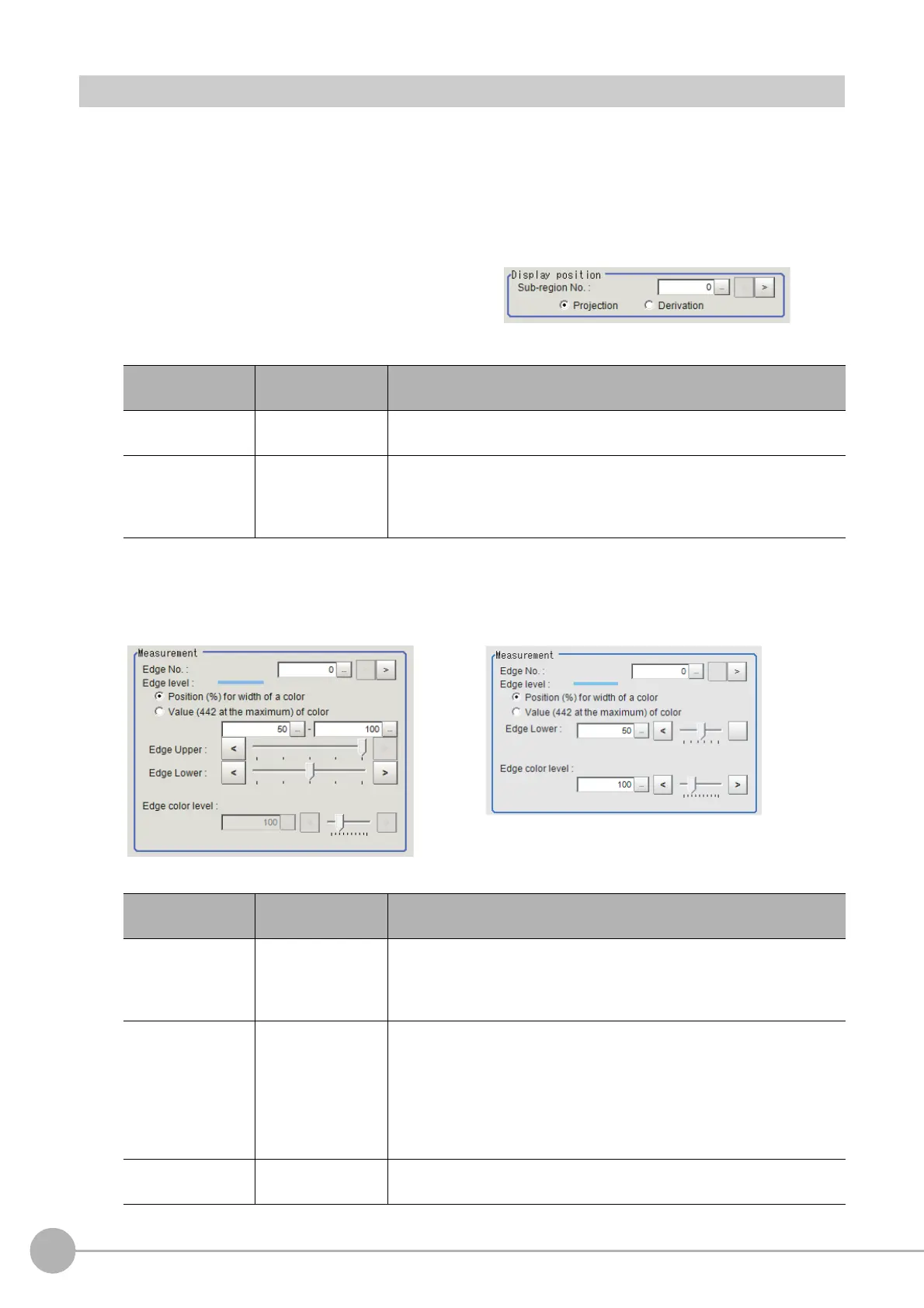

Measurement Parameters (Circular Scan Edge Width)
Measurement parameters can be changed as needed to address unstable measurement results. Normally, the
factory default value will be used.
After changing a setting, check wheth
e
r measurement can be done properly by performing an actual
measurement.
1 In the Item Tab area, click [Measurement].
The edge profile of the measurement region is displayed as a graph in the Image Display area.
2 In the "Display position" area, specify a
value for each item.
3 Set the value of each item in the "Measurement" area.
For color cameras:
Setting item
Set value
[Factory default]
Description
Sub-region No.
0 to 359
[0]
Set the edge measurement number for which the edge profile is
displa
yed.
• [Projection]
• Derivation
Projection: The edge is searched from the center toward the outside
directio
n.
Derivation: The edge is searched from the outside of the circle toward the
center
.
Edge
Color Not Specified Edge Color Specified
Setting item
Set value
[Factory default]
Description
Edge No.
0 to 99
[0]
Specify the edge number used to extract edges.
Edge numbers are assigned to detected edges starting from 0 and in the
directio
n from th
e start point (the arrow) to the end point (the arrow point)
in the selected region.
Edge Upper (only
whe
n edge color is
not specified)
Edge Lower
• Position (%) for
wid
th of a color
0 to 100
[50] to [100]
• Value of color
0 to 442
[20] to [442]
Set a range of a color difference level with whi
ch the edge is detected.
Reference: "Appendixes Measurement Mechanism Edge Detection
Measuremen
t" in the "Vision System FH/FZ5 Series User's Manual
(Z365)"
Edge color level
0 to 442
[100]
This emphasis level can be set only if the edge color to detect is
specifie
d.
