Calibration Data Reference
710
FH/FZ5 Processing Item Function Reference Manual

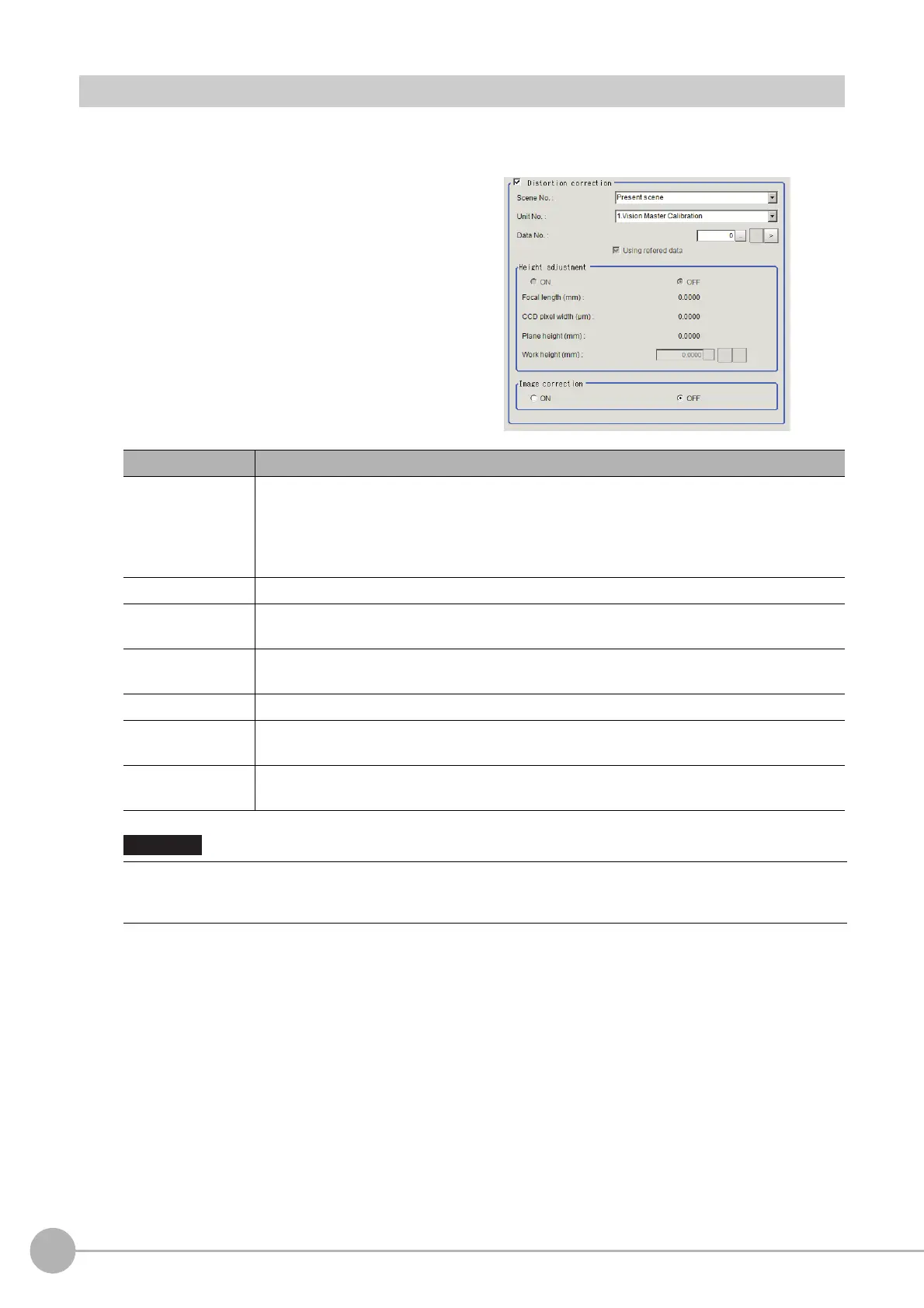

Distortion Correction (Calibration Data Reference)
Select the processing unit in which the distortion compensation data to be referenced is held.
1 In the Item Tab area, click [Distortion correction].
2 Place a check at [Distortion correction]
and select the reference scene number
and reference unit number.
Item name Description
Distortion correction
Place a check at [Distortion correction] if o
ne
of the conditions below is met:
• Vision master calibration was performed with "Trapezoida
l distortion" or "Lens distortion"
selected under [Distortion correction setting].
• Precise calibration was performed with the corre
c
tion settings turned "ON" on the [Image
correction] tab.
Scene No. Select the number of the scene to be referen
c
ed to obtain distortion compensation data.
Unit No.
Select the number of the unit to be reference
d
to obtain distortion compensation data.
A high-precision calibration unit or image maste
r calibration unit can be referenced.
Data No.
0 to 7
This item can be specified only when an image master
calibration unit is selected for reference.
Using referred data Initial value Checked
Height adjustment
Select "ON" to perform height adjustment using the reference data.
Initial value OFF
Image correction
Select "ON" to perform image correction.
Initial value OFF
• When image correction is OFF, coordinate distortion compen
sati
on process is executed only for coordinate
values.
• Note that no distortion compensation process is executed
for
other feature quantities such as an area.
Important
