FocusFH/FZ5 Processing Item Function Reference Manual
693
4
Support Inspection and Measurement

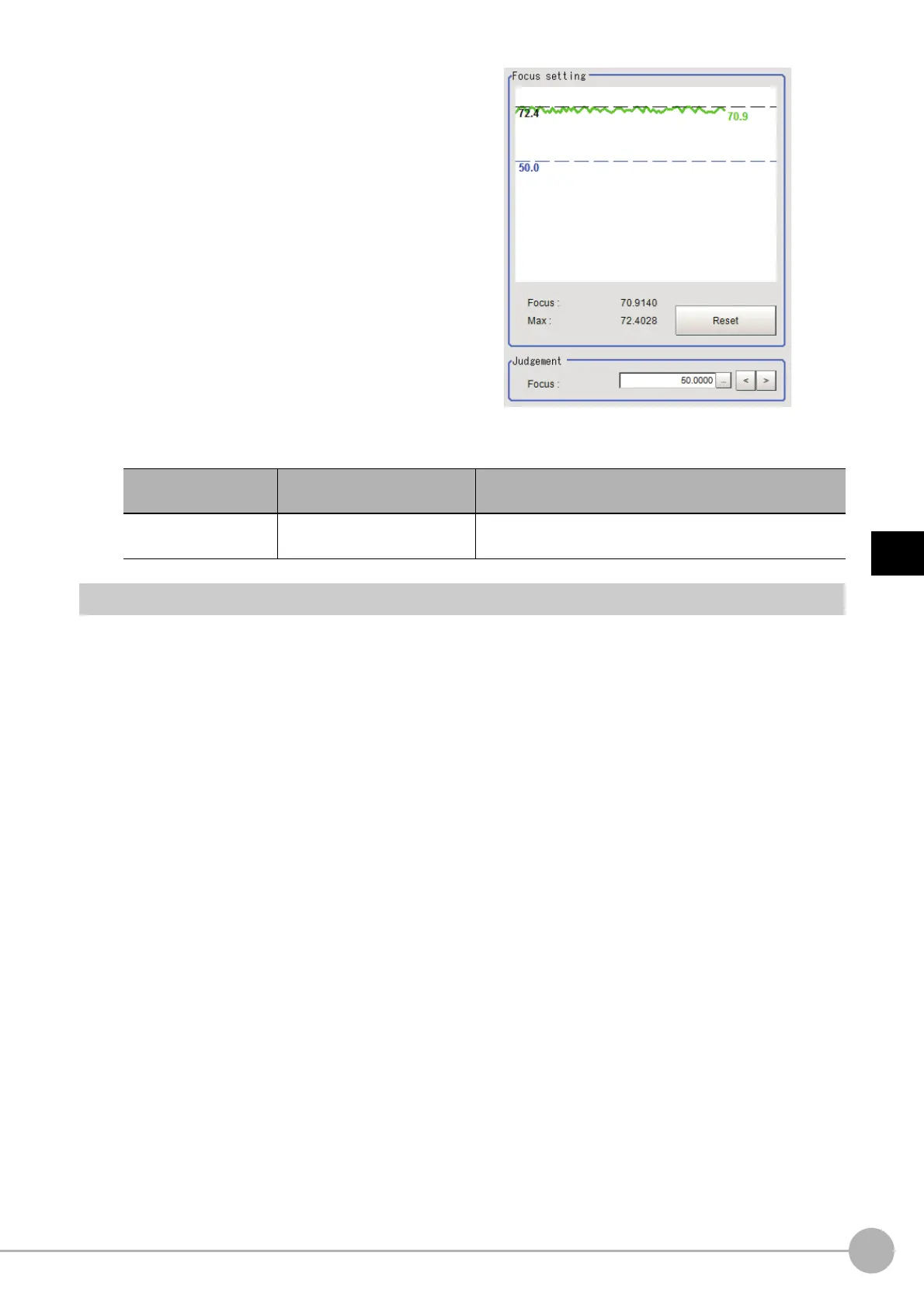

3 Set the focus value.
The focus value is displayed chronologically in
real time in the graph area.
4 Set up the judgement condition.
Region Setting (Focus)
Set the range of focus adjustment.
1 In the Item Tab area, click [Region setting].
2 Click [Edit].
The figure setting area is displayed.
3 Specify the range of focus adjustment.
The rectangle covering the entire screen is set. Adjust the size and position of the rectangle.
4 Click [OK] in the Figure setting area.
• [OK]: Changes the settings and returns to the previous menu.
• [Cancel]: Changes are discarded. Returns to the previous menu.
• [Apply]: Updates the settings without leaving edit window.
Setting item
Set value
[Factory default]
Description
Focus
0.0000 to 255.0000
[50.0000]
This item specifies the judgement value for focus.
To Next Page
