Control Flow Fieldbus
858
FH/FZ5 Processing Item Function Reference Manual

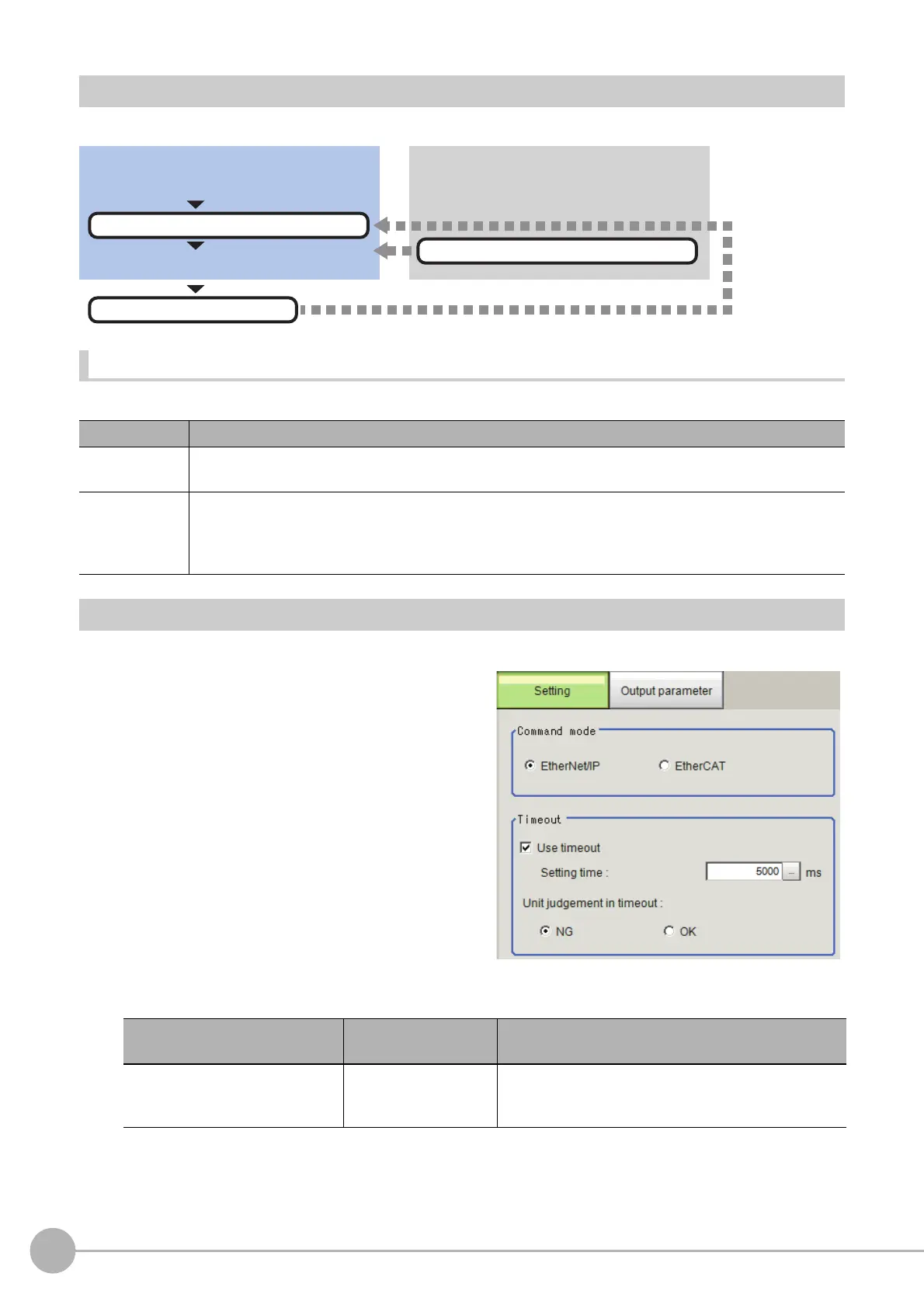

Settings Flow (Control Flow Fieldbus)
Set up control flow Fieldbus according to the following steps.
List of Control Flow Fieldbus Items
The following items can be set in control flow Fieldbus.
Settings (Control Flow Fieldbus)
Set communication and timeout conditions for controlling the measurement flow.
1 In the Item Tab area, click [Setting].
2 In the “Communication method” area, specify a value for each item.
Item name Description
Setting
Set communication and timeout conditions for controlling the measurement flow.
Reference: Settings (Control Flow Fieldbus) (p.858)
Output
p
arameter
You can set this item to change the output parameters.
Set the conditions and parameters for outputting me
asurement results to other processing units or
external devices.
Reference: Measurement Results for Which Output Is Possible (Control Flow Fieldbus) (p.860)
Setting item
Setting value
[Factory default]
Description
Communication method
• [EtherNet/IP]
• EtherCAT
Select the communication method used for controlling
the measuremen
t flow from an external device.
“EtherCAT” can only be selected on the FH.
Necessary Steps Optional Steps
Check results/adjust parameters
▲
Settings (Control Flow Fieldbus)
▲
Output Parameters (Fieldbus Flow Control)
Start
Settings completed
Test measurement
