Vision Master Calibration
744
FH/FZ5 Processing Item Function Reference Manual
Vision Master Calibration
This processing item is specifically provided for calibration between the camera coordination system and the
control equipment coordinate system.
This processing item automatically calculates the en
tir
e axis movement amount of the control equipment
necessary for calibration.
For that reason, it possible to perform accurate calibration more easily than previously.
Used in the Following Case
• When you want to position the FPD panel
• The calibration data created with this processing item is referred to using [Calibration Data Reference].
Unlike other calibration-related proc
essing items, note that this processing item cannot use the calibration data on its
own.
• This function refers to the processing item having external devi
c
e information for axis movement calculation, e.g. Stage
Data or Robot Data. If you change those data, setting contents of this function will be changed. In this case, needs to
check those data.

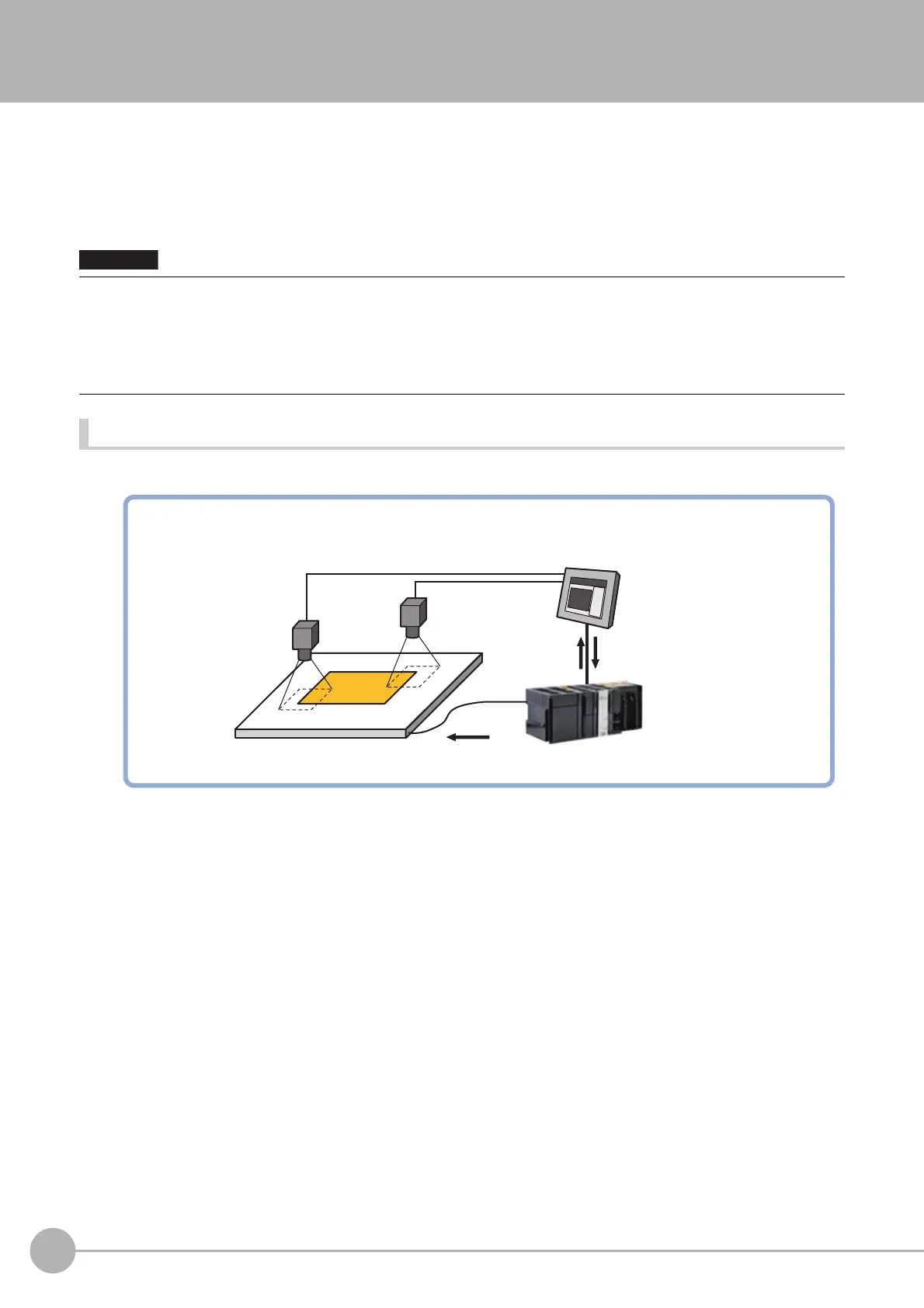

FH/FZ5 calculates the axis movement amount of stages required for calibration, and outputs it to PLC.
FH
PLC
Camera 0
Camera 1
Trigger input
Axis control of stageStage
Response + axis movement
amount of stage
To Next Page
