Trend Monitor
666
FH/FZ5 Processing Item Function Reference Manual

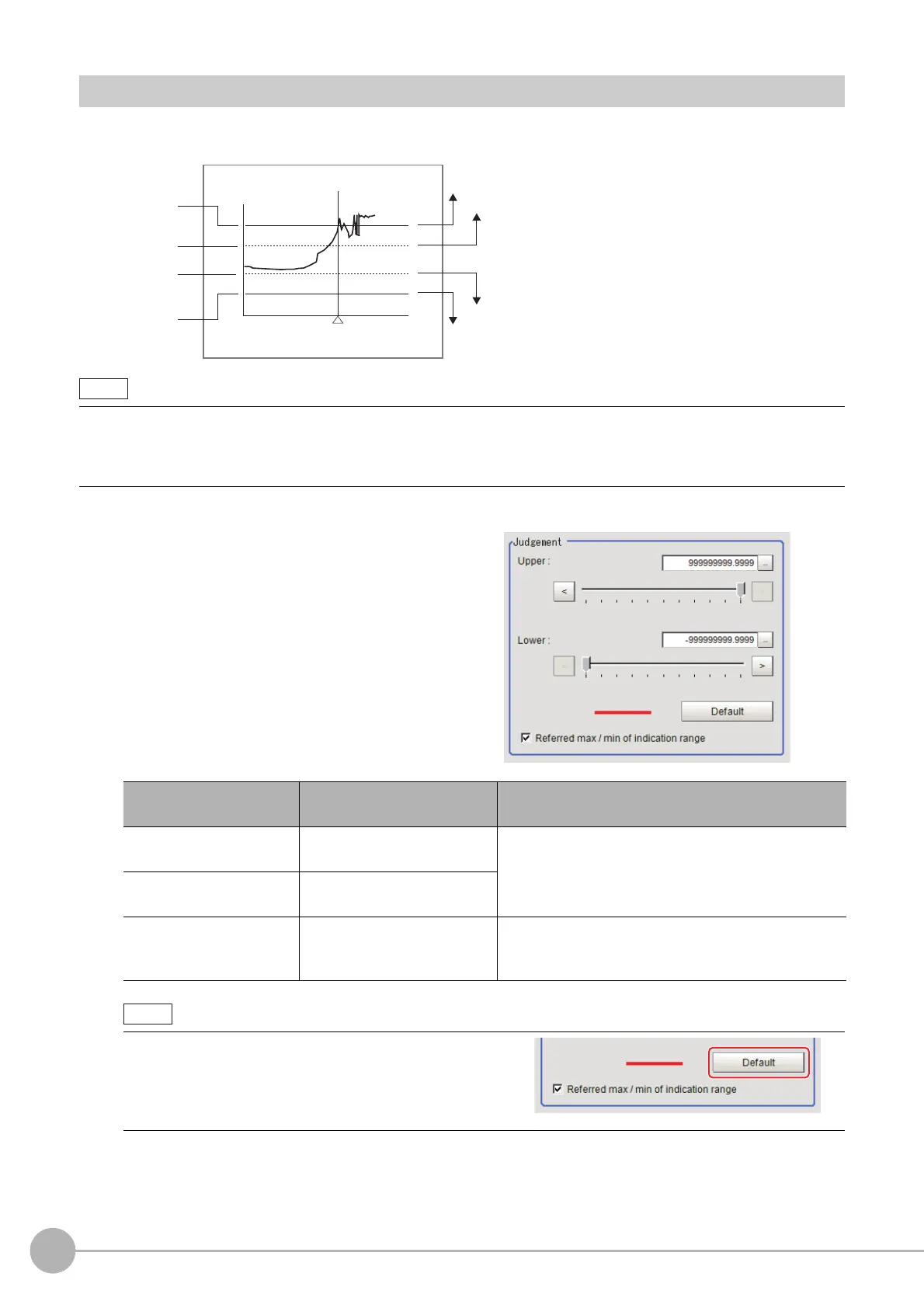

Judgement (Trend Monitor)
Sets the warning range for prompting caution before large numbers of NGs occur as well as OK/NG judgement
conditions.
1 In the Item Tab area, click [Judgement].
2 Set up the judgement condition.
• When a warning occurs, the message "Limits of Warning" is displayed on the screen.
Notification that an alarm has occurred can also be output to external d
evices if output-related processing units such as
"Parallel Judgement Output" are used to set an arithmetic expression to output measurement results (warnings) from the
trend monitor.
Setting item
Set value
[Factory default]
Description
Upper
-999999999.9999
to 999999999.9999
Specify the range where the measurement result is
jud
ged
to be OK.
Lower
-999999999.9999
to 999999999.9999
Referred max / min of
in
dication range
• [Checked]
• Unchecked
When checked, the judgement range that can be set
with the upper
and lower values becomes the same as
the max. and min. values set in [Display range].
• If the window is entered after measurement is performed a
fe
w
times and [Default] is clicked on, optimal judgement
conditions including maximum and minimum
measurement values are automatically set.
Judgement
lower limit
Judgement
upper limit
Limits of warning
(upper limit)
Limits of warning
(lower limit)
NG
NG
Warning
Warning
To Next Page
