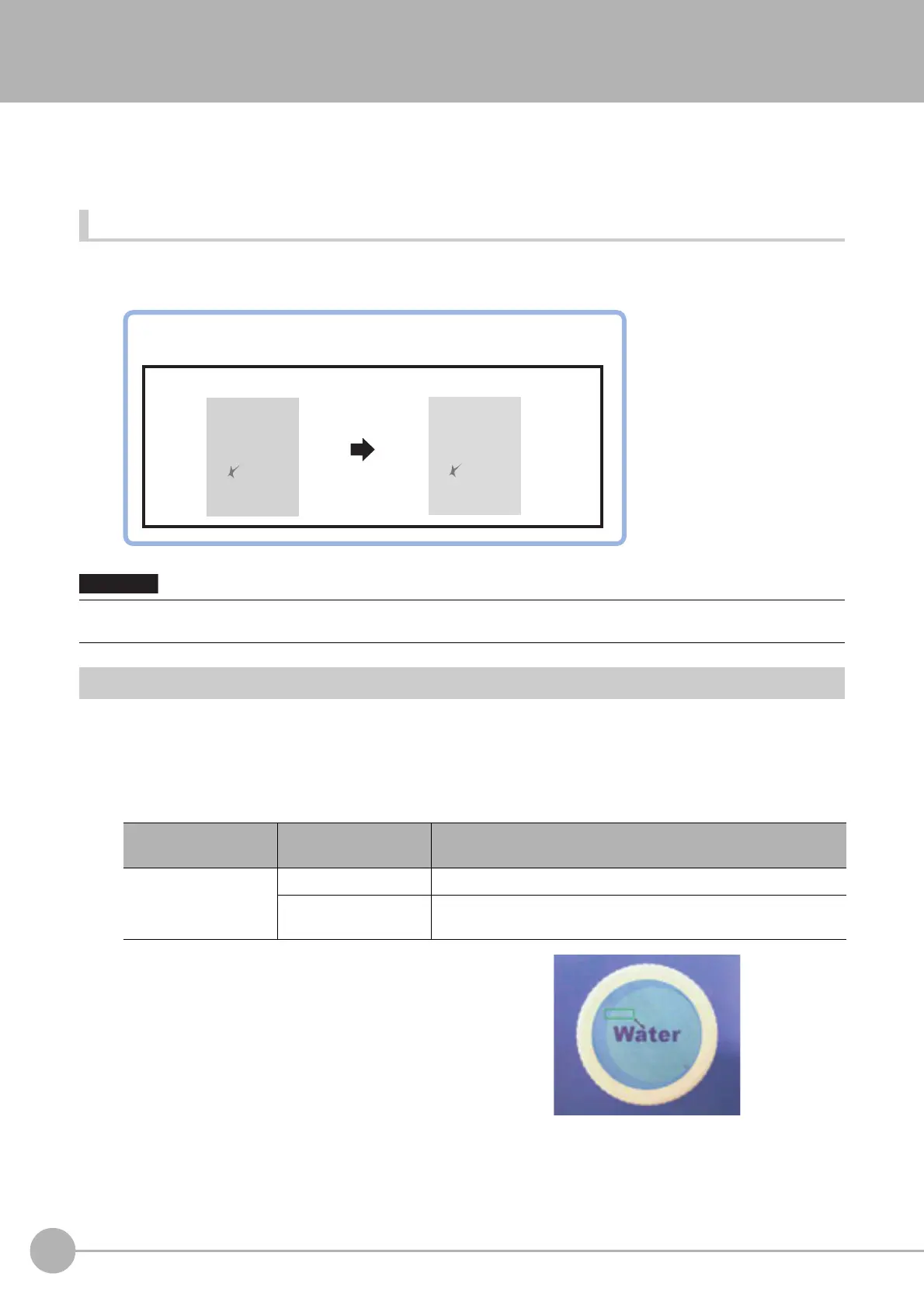

Anti Color Shading
532
FH/FZ5 Processing Item Function Reference Manual
Anti Color Shading
This filter eliminates color unevenness in the image. Unevenness is eliminated either by converting the two
specified colors toward the color midway between them or by converting one of the two specified colors to
approach the other. However, this processing item cannot be used with monochrome images.
Used in the Following Case
• This is used when a work that would be expected to have uniform color has a non-uniform
image due to the effect of tilting, uneven paint, or the like.
Filter Setting (Anti Color Shading)
This item sets the filter.
1 In the Item Tab area, click [Filter setting].
2 In the "Display" area, click [Change display] to switch between camera image types.
The displayed contents of the Image Display area will be switched.
3 The section with color contrast on the
image is enclosed.
The image with the contrast suppressed is
displayed.
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.
Setting item
Set value
[Factory default]
Description
Display
Through image display The latest image is always input from the camera and displayed.
[Freeze image display]
The image that was scanned in the immediately preceding
meas
urement is displayed.
By making the pixels of the two specified colors the same color, color irregularities
and patterns on the workpiece are eliminated.
Before processing
After processing
SION
V
VISION
VISI
ON
S
ION
V
SION
V
VISION
VISI
ON
S
ION
V
Important
