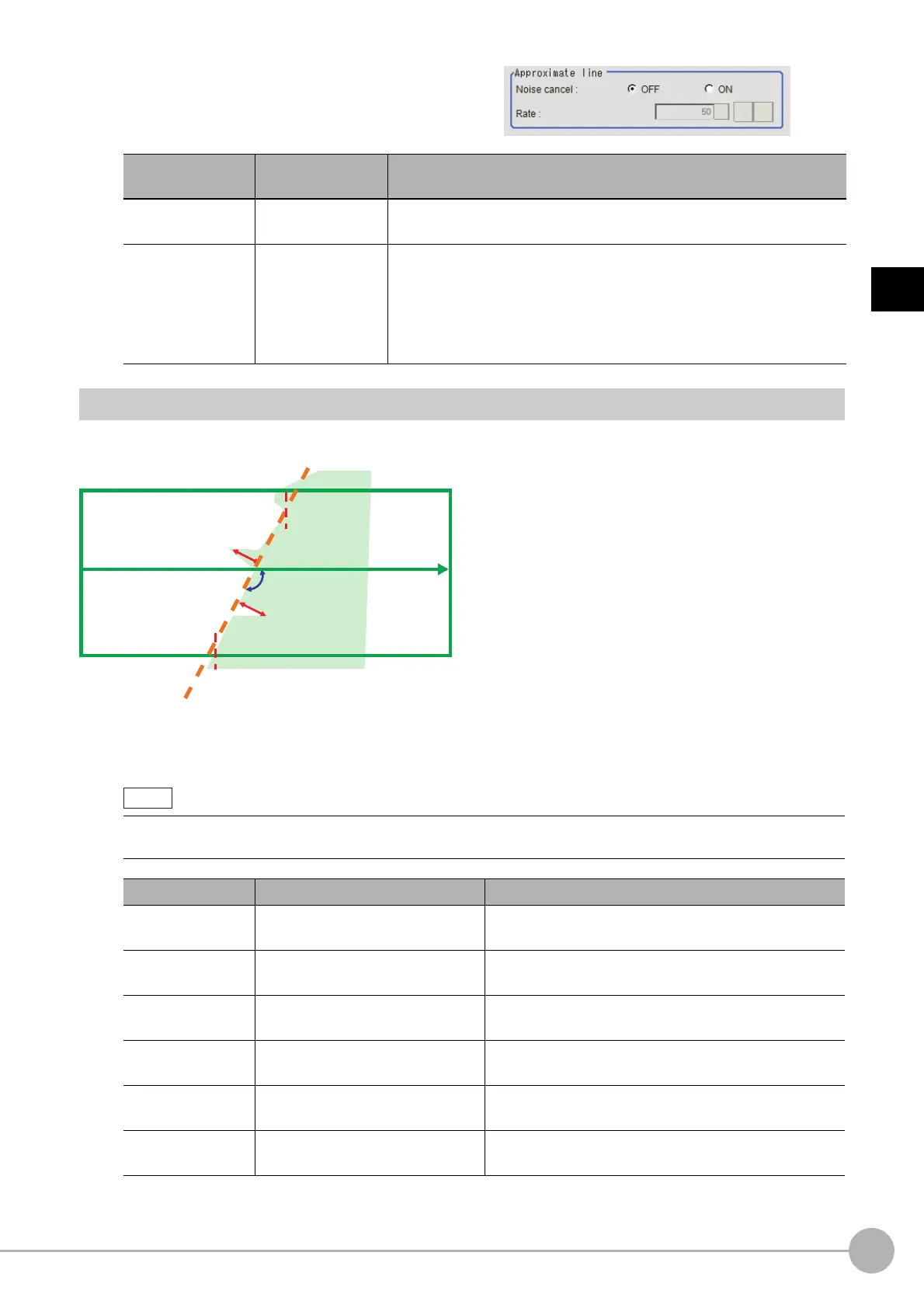

Scan Edge PositionFH/FZ5 Processing Item Function Reference Manual
251
2
Inspecting and Measuring
5 In the "Approximate line" area, specify
the point to be used for the calculation of
approximate lines.
Judgement Conditions (Scan Edge Position)
Specify the range to be judged as OK.
1 In the Item Tab area, click [Judgement].
2 Set up the judgement condition.
Setting item
Set value
[Factory default]
Description
Noise cancel
•ON
•[OFF]
When a check is placed at [ON], an
approximate line is found by
excluding the points with large deviation among the measured points.
Extraction rate
0 to 100
[50]
Set the ratio of measurement points use
d for approximate straight line
calculation to all measurement points.
When there is considerable noise, reducing
this va
lue enables calculation
of an approximate straight line with many of the noise points removed.
When there is little noise, increasing this value enables calculation of a
hig
h
-accuracy straight line using many measurement points.
• The values beside each item are measurement results of the
displayed image. Take these values into
consideration to determine the upper and lower limits.
Setting item Set value Description
Peak edge position
X
-99999.9999 to 99999.9999
Specify the X-axis upper and lowe
r li
mits of the peak
edge position X judged to be OK.
Peak edge position
Y
-99999.9999 to 99999.9999
Specify the Y-axis upper and lower limits of the peak edge
po
siti
on Y judged to be OK.
Bottom edge
position X
-99999.9999 to 99999.9999
Specify the X-axis upper and lowe
r limits of the bottom
edge position X judged to be OK.
Bottom edge
position Y
-99999.9999 to 99999.9999
Specify the Y-axis upper and lower limits of the bottom
ed
ge position Y judged to be OK.
Edge position X
Av
e
.
-99999.9999 to 99999.9999
Specify the X-axis upper and lowe
r limits of the average
edge position judged to be OK.
Edge position Y
Ave.
-99999.9999 to 99999.9999
Specify the Y-axis upper and lower limits of the average
ed
ge position judged to be OK.
Line angle
Long (Convex) distance
Short (Concave) distance
Bottom edge position
Peak edge position
Approximate line
Note
