Fine MatchingFH/FZ5 Processing Item Function Reference Manual
379
2
Inspecting and Measuring
Fine Matching
Differences can be detected in a fast and highly precise way by overlapping registered fine images with input
images (matching).
Used in the Following Case
To precisely detect trivial defects at the edges of text and patterns
Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.

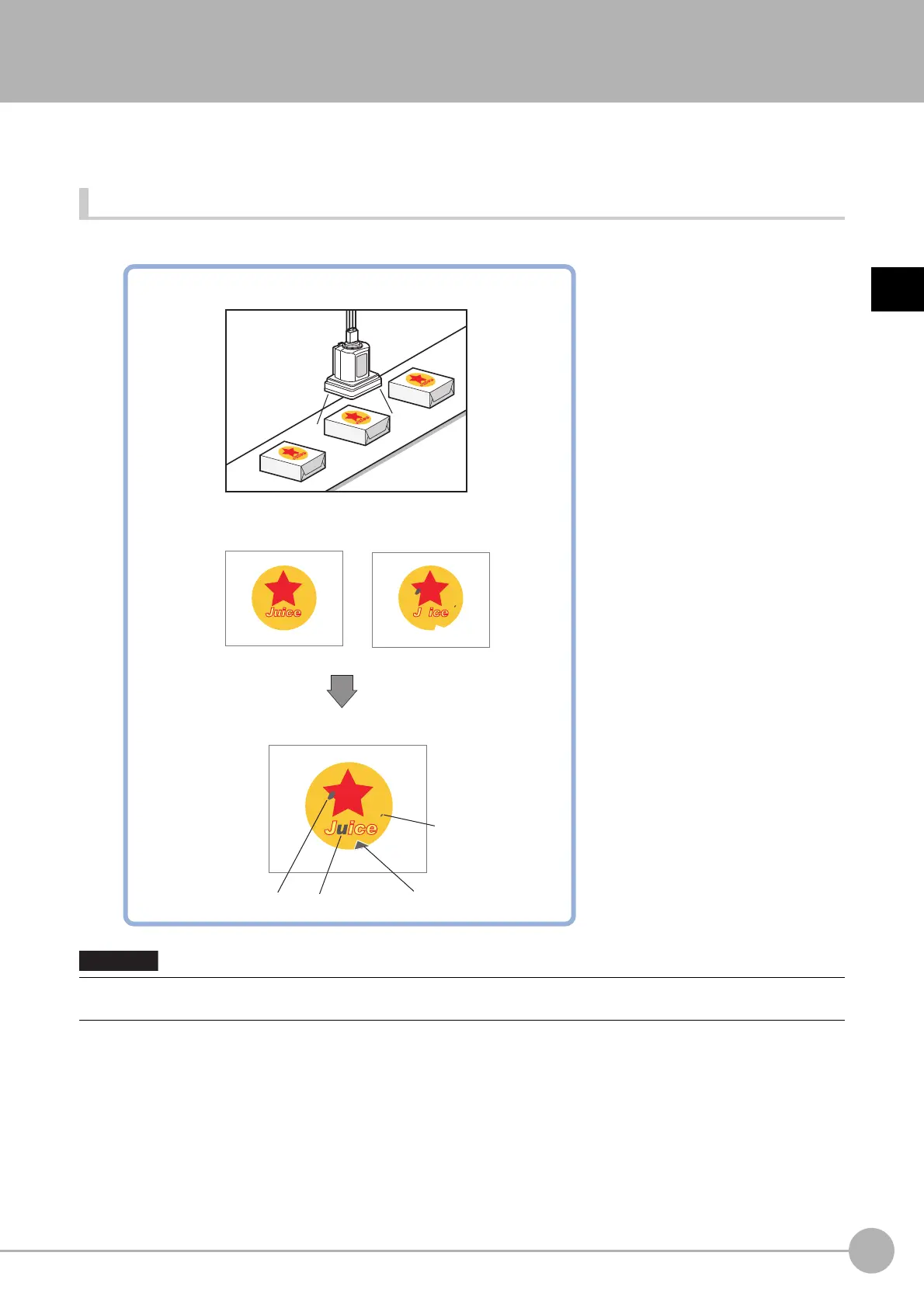

Image of OK parts
(register in advance)
Image of
Measurement object
Overlay
Defects around boundary
Stains in model
Small stains
Printing error
Defective part is highlighted with NG colors, Judged by different area
values compared with those of OK images
Example) Stain measurement on the label
