Selective BranchFH/FZ5 Processing Item Function Reference Manual
865
5
Branch
Selective Branch (Selective Branch)
This item sets the branch conditions. Up to 32 branch destinations can be set. Branch destinations can be easily
enabled or disabled using the checkboxes. Only set the necessary items.

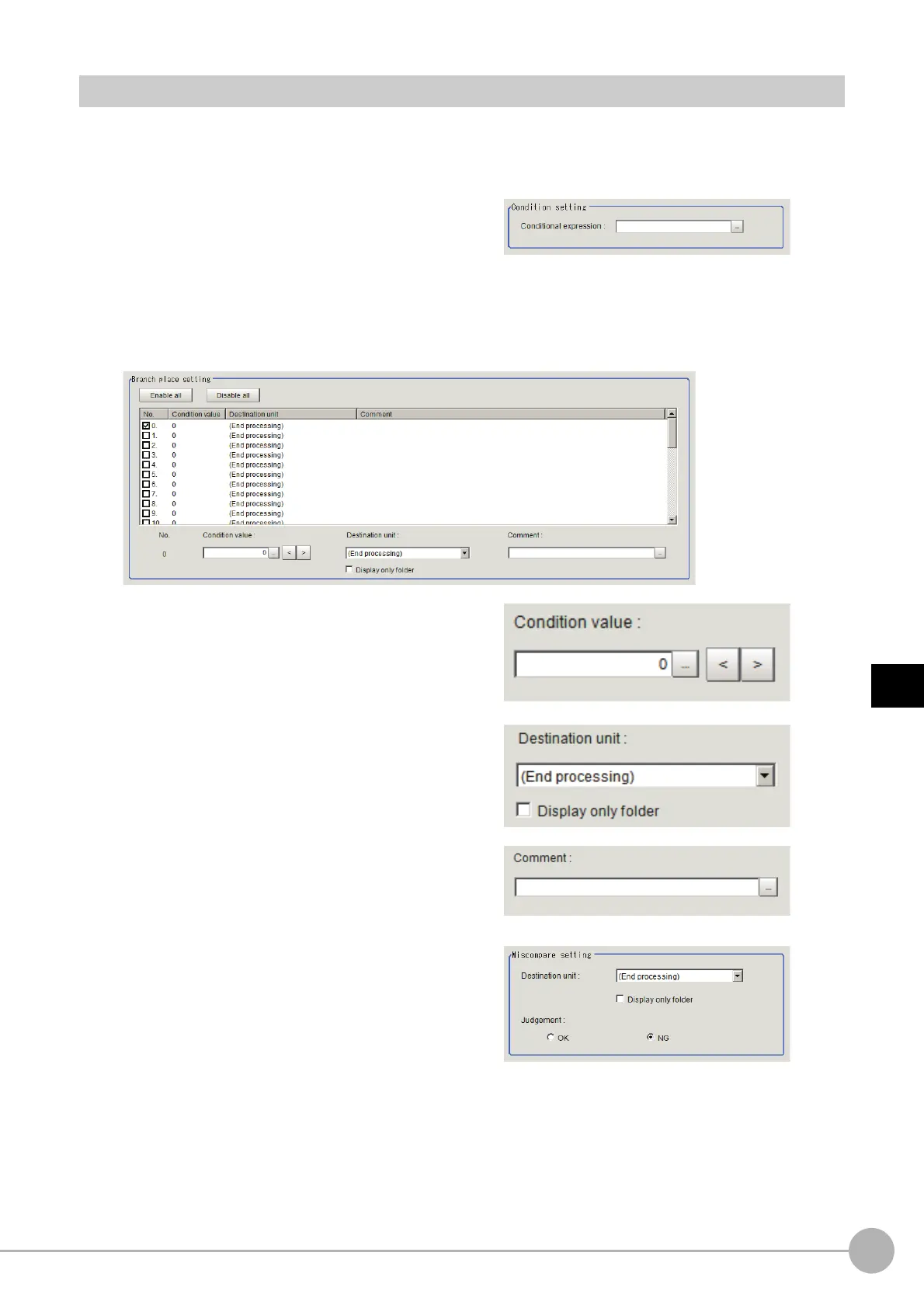

1 In the Item Tab area, click [Selective Branch].
2 In the "Condition setting" area, set the
expression of the condition to branch.
3 In the "Branch place setting" area, click the number of the branch destination that will set the
condition to branch.
Clicking [Enable all] will enable all branch destinations.
Clicking [Disable all] will enable all branch
destinations.
4 Click [<] or [>], or click [...] in [Condition
value] to set the selection value.
5 Click [ ] in [Destination unit] and select
the destination unit.
If [Display only folder] is checked, only the
folder first unit will be set.
6 Click [...] in [Comment] to enter a
comment.
7 Click [ ] in [Destination unit] in the
"Miscompare setting" area and set the
destination unit.
If [Display only folder] is checked, only the
folder first unit will be set.
8 Select [Judgement].
9 Click [OK].
