DI BranchFH/FZ5 Processing Item Function Reference Manual
839
5
Branch

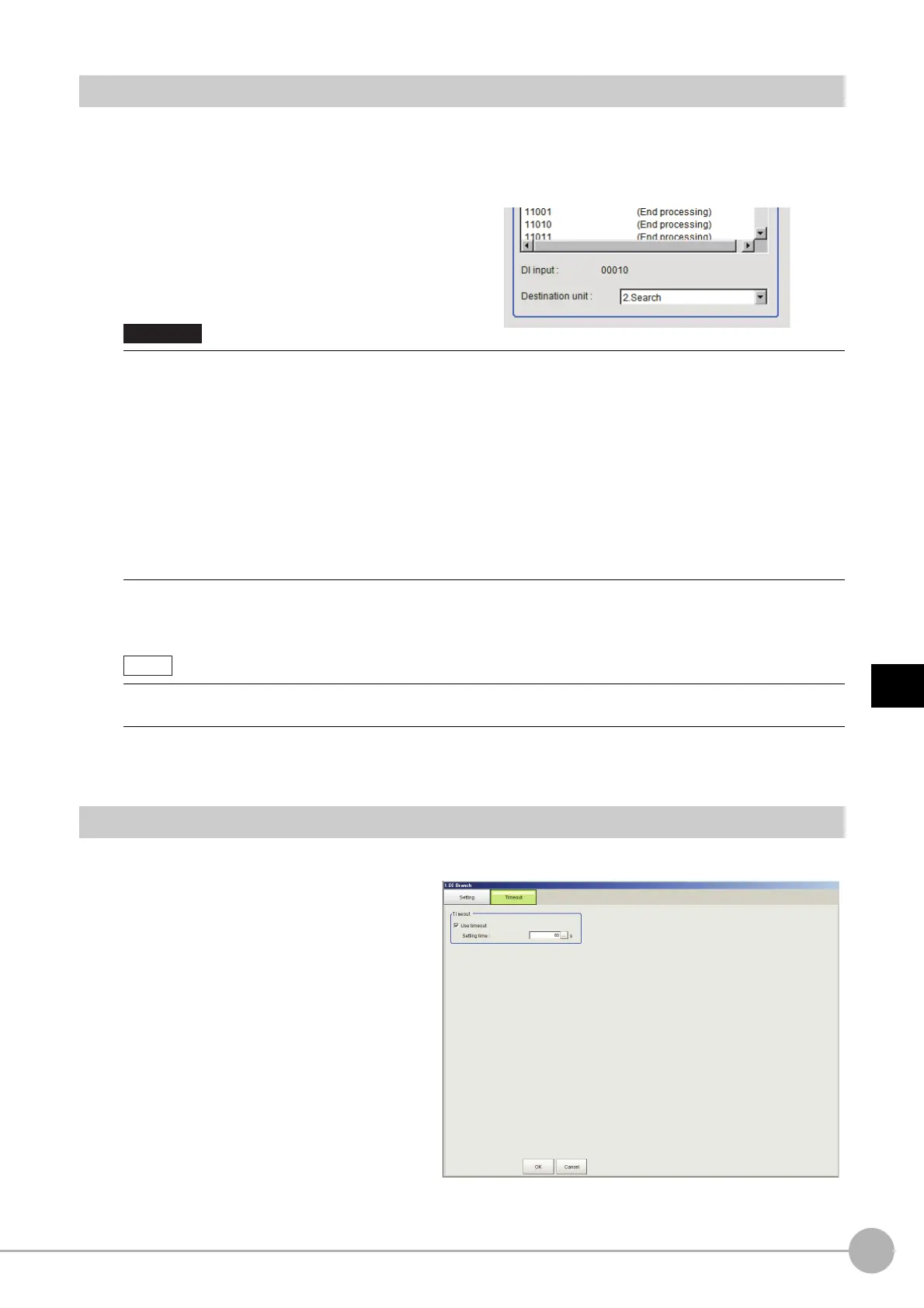

Settings (DI Branch)
Select the destination unit. Perform settings according to the information input in DI.
1 In the item tab area, click [Setting].
2 Click the DI input from the input signal list for which the branch destination is to be set up.
3 At "Destination unit", click [ ] and set
the destination unit.
4 Repeat the steps Reference:  2 (p.839) to Reference:  3 (p.839) and set the destination
units for other input signals.
5 Click [OK].
The settings are finalized.
Timeout (DI Branch)
Set the conditions under which the branching processing times out.
1 In the Item Tab area, click [Timeout].
• In order to avoid measurement processing looping, for the branch destination, set a processing unit number that
is after the [DI Branch].
• Make sure to set "End" at the last branch destina
ti
on to indicate the end of the branch.
Reference: End (p.837)
• If the operation mode (FZ series) is set to [Multi-line rand
om-trig
ger mode], DI inputs are handled differently as
follows.
Line 0: Conform to the statuses of DI0 and 1 inputs.
Line 1: Conform to the statuses of DI2 and 3 inputs.
• If the operation mode (FZ5-8/FZ5-11/FZ5-12) is set to [Multi-line random-trigger mode], DI inputs are
hand
led
differently as follows.
Line 0: Conform to the statuses of DI0 and 1 inputs.
Line 1: Conform to the statuses of DI2 and 3 inputs.
• Up to 32 (0 to 31) branch destinations can be set.
• The controller references the DI signal when the [DI Branch
] measurement is executed.

